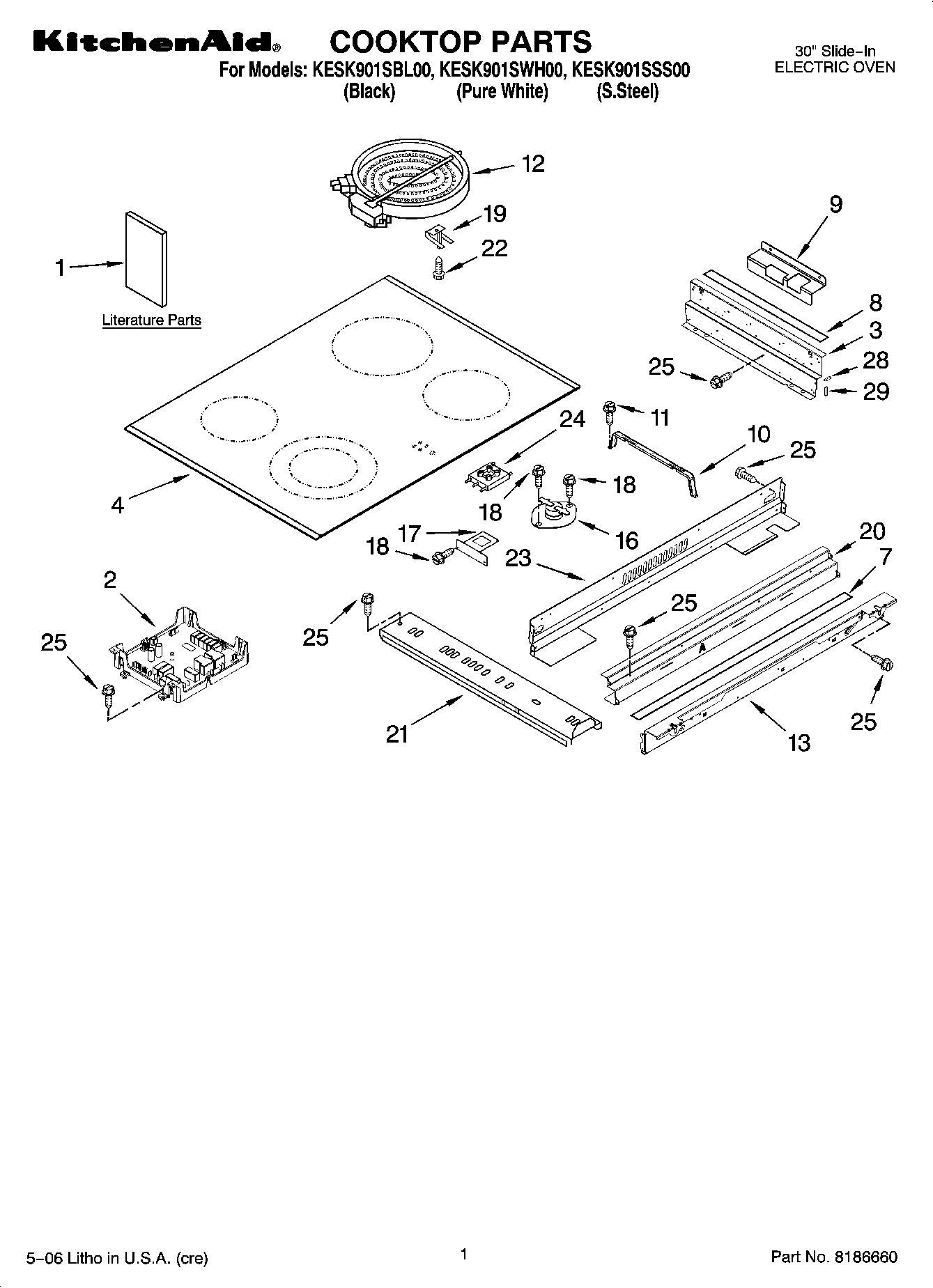

KESK901SWH00 01 – COOKTOP PARTS
Written by
in
KESK901SWH00 01 – COOKTOP PARTS
Products
Position
Product
1
Use & Care Guide
1
Easy Set Guide
1
Safe Cooking Tips (French)
1
Anti-Tip Instruct.
1
Safe Cooking Tips
1
Tech Sheet
1
Installation Instructions
2
Central, Appliance
3
Frame, Cooktop Side
4
Cooktop (White)
4
W10285078 Whirlpool Cooktop
7
Gasket
8
Gasket (2)
9
Support (R.Hand)
9
Support (L.Hand)
10
WP9756821 Whirlpool Support
11
WP4449809 Whirlpool Screw
12
W10823699 Whirlpool Right Front Surface Element
12
W10823692 Whirlpool Dual Radiant Element
12
W10823697 Whirlpool Surface Element
12
W10823698 Whirlpool Surface Element Right Rear
13
Frame, Cooktop Front
16
WP9759944 Whirlpool Thermostat
17
Bracket, Ind. Lamp
18
W10491985 Whirlpool Screw
19
9759094 Whirlpool Spring
20
Frame, Cooktop Rear
21
Rail, Element (3)
22
WP486754 Whirlpool Compactor Screw
23
Cover, Cktp Rear
24
Light, Indicator (Hot Surface)
25
WP3196557 Whirlpool Screw
28
Grommet (19mm)
29
Grommet (38mm)
←
