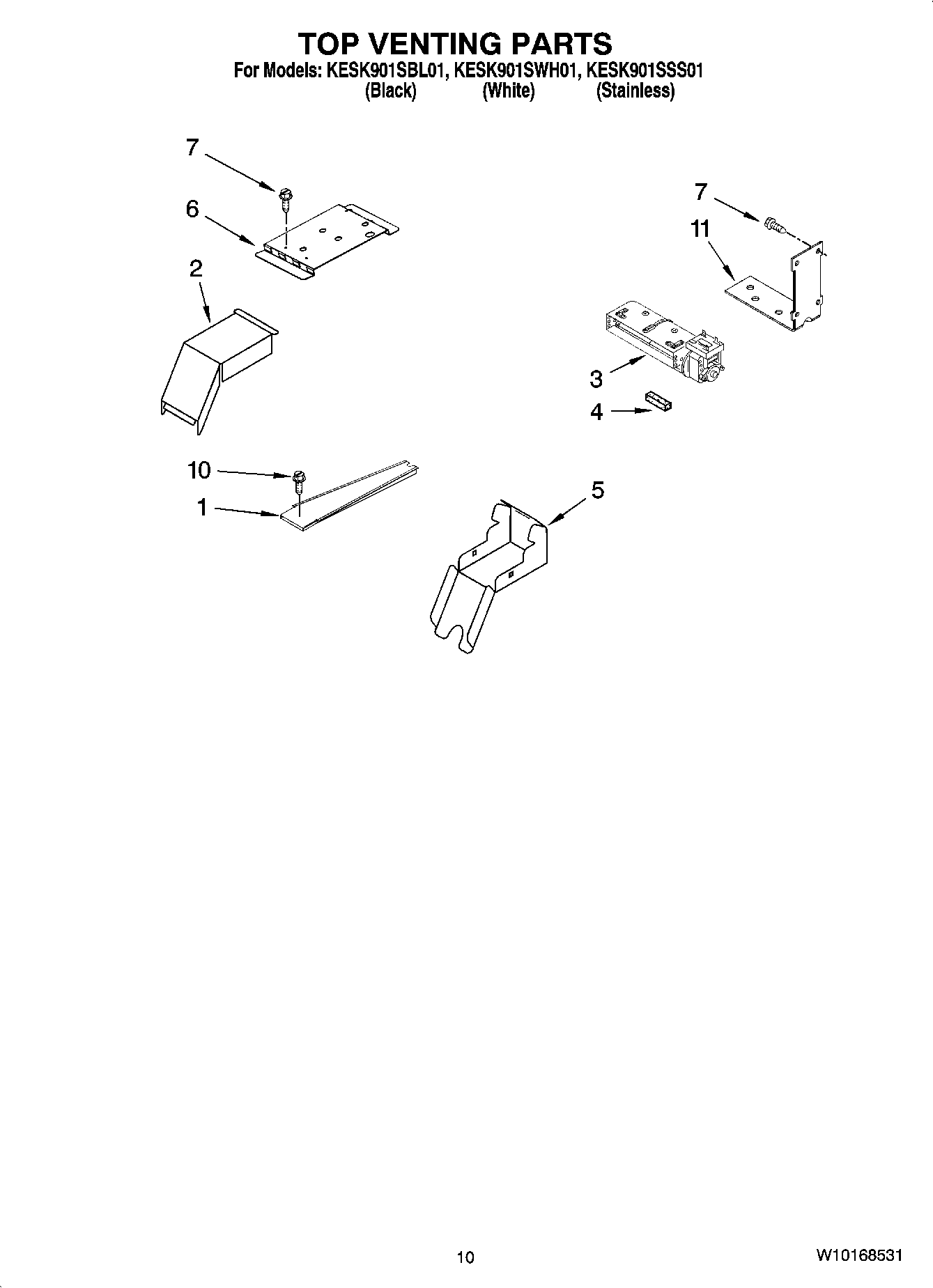

KESK901SWH01 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	Miscellaneous
	9763481 Whirlpool Oven Wire Harness
	261900 Whirlpool Microwave Spray
	WPL 591014
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	W10113901A Whirlpool Fill Kit
	W10113902A Whirlpool Fill Kit Assembly
	W10113903A Whirlpool Range Filler Kit
	WIRING HARNESS PARTS
	SPLICING WIRES–25FT. LENGTH
	ADHESIVE
	Harness, Main
	Cooktop, Electric Switch
	Conduit
	Harness, Switch
	HARNESS, COMMUNICATION
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	Nut
	WP3400015 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	WP482338 Whirlpool Refrigerator Adhesive
	350930 Whirlpool White Spray Paint
	242831 Whirlpool Oven Wire
	Spacer, Harness
	WP261869 Whirlpool Microwave Paint
	Clip, Ground Wire
	W11209404 Whirlpool Wire Harness
	W11447673 Whirlpool Range Tip Anchor
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	W10810687 Whirlpool Blower Assembly
4	W10491987 Whirlpool Foam Seal
5	4455177 Whirlpool Oven Bottom Elbow
6	Bracket, Terminal Box
10	Screw
11	WP4455352 Whirlpool Mounting Bracket
