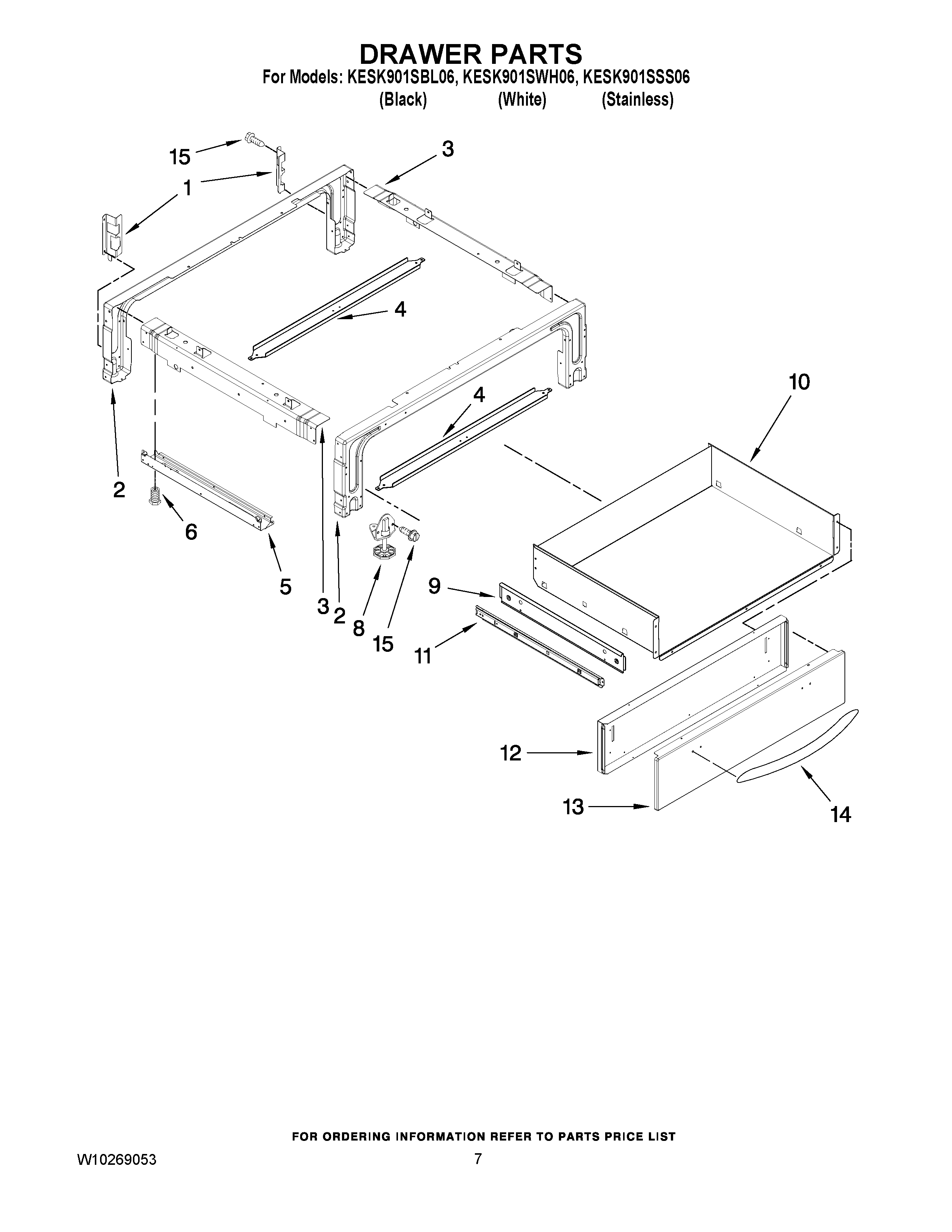

KESK901SWH06 04 – DRAWER PARTS

Products

Position	Product
1	Support (L.Hand)
1	Support (R.Hand)
2	Support, Front & Rear
3	Brace, Drawer (Left)
3	Brace, Drawer (Right)
4	Brace, Base Front
5	Side, Base (R.Side)
5	Side, Base (L.Side)
6	WPW10058460 Whirlpool Appliance Levelling Leg
8	WP3196037 Whirlpool Leveling Foot
9	Guide, Roller
10	Drawer
11	Drawer Slide (Right)
11	Drawer Slide (Left)
12	Panel, Drawer
13	Front, Drawer (Stainless)
13	Front, Drawer (White)
13	Front, Drawer (Black)
14	Handle, Drawer (Black)
14	Handle, Drawer (Stainless)
14	Handle, Drawer (White)
15	WP3196557 Whirlpool Screw
