KESS300BAL0 07 – REAR CHASSIS, OPTIONAL

KESS300BAL0 07 – REAR CHASSIS, OPTIONAL

Written by

in

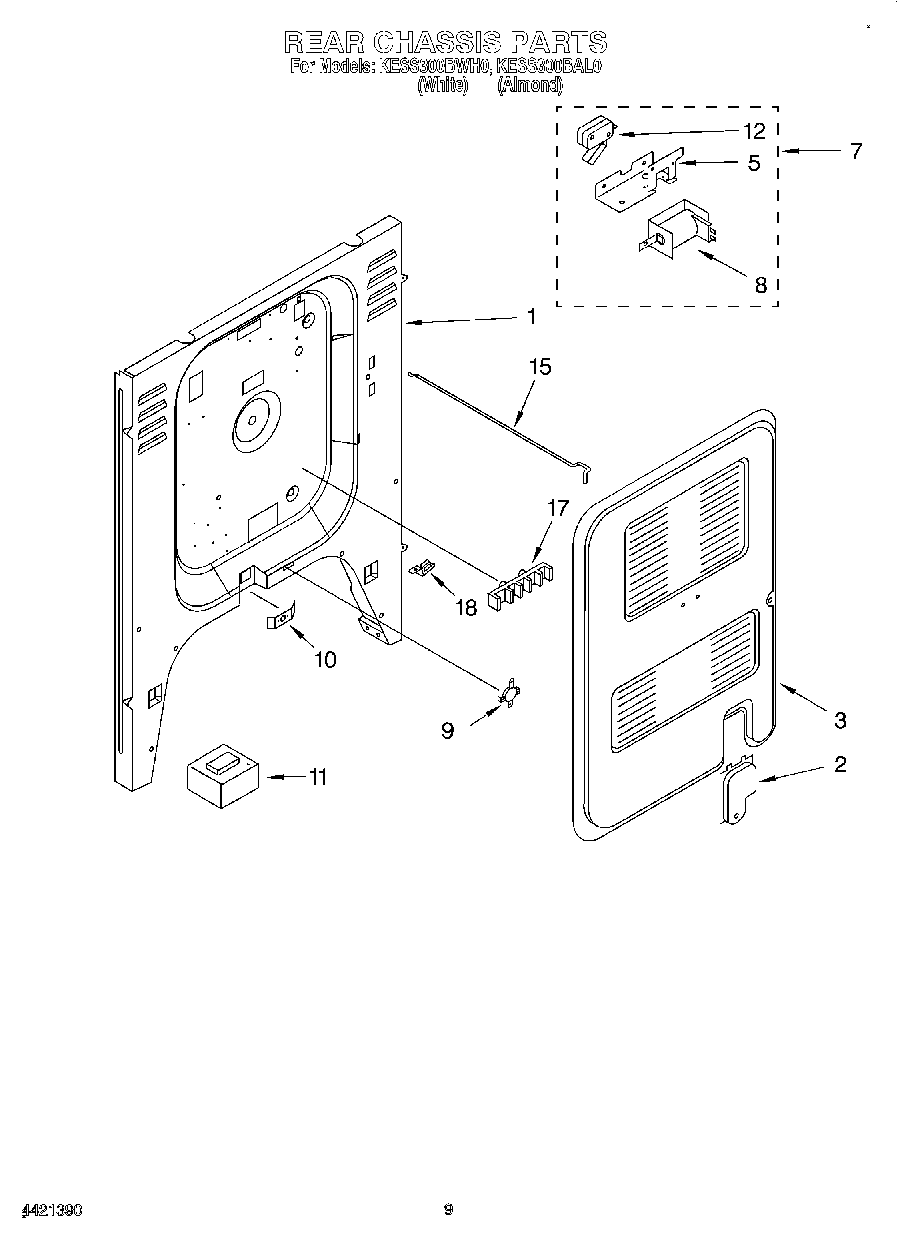

KESS300BAL0 07 – REAR CHASSIS, OPTIONAL

Products

PositionProduct
1Back panel, Chassis
2Cover, Rear Access
3Panel, Rear Cover
3Screw, (2) 10 x 3/8
5Bracket, Lock
7Oven Lock Assembly
8Washer
8Solenoid
8Screw, (2) 10-32 x 5/16
9Fuse, Safety
10Bracket, Power Cord
10WP4159387 Whirlpool Compactor Screw
11340184 Whirlpool Screw
11Block, Balance
12Screw, (2)
12Switch, Interlock
12Nut (2)
15Rod, Lock
17WP8203546 Whirlpool Terminal Block
17Screw, (2) 10-16 x 1
1872110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
181
18Wire (14 Ga. 200 c Brown)
1818 Ga. 80~c Rating (Red)
18Wire (12 Ga. 150 c Black)
18Wire (14 Ga. 150 c Yellow)
18Wire (14 Ga. 150 c Orange)
18WP72107 Whirlpool Touchup
188212471 Whirlpool Oven Paint
18350930 Whirlpool White Spray Paint
18350956 Whirlpool Spray Assembly
1872017 Whirlpool Appliance Touch-Up Paint White
18799344 Whirlpool Refrigerator Paint
18FOIL, ALUMINUM OVEN (18“ X 25 )
18Almond (Uncut)
18Golden Harvest
18WPL 308498
18Grease
18285006 Whirlpool Spray
18Wire (14 Ga. 150 c Green)
18Wire (14 Ga. 150 c Brown)
1872109 Whirlpool Dacor Avocado Touch-Up Paint
18Platinum (Uncut)
18Wire, 25“ Roll (White 14 GA.)
18Wire, 25` Roll (Red 14 Ga.)
18Wire, 25` Roll (Black 14 Ga.)
18WPW10208653 Whirlpool Insulation
18WP112432 Whirlpool Nut Assembly
18WPL 799832
18511873 Whirlpool Refrigerator Paint
18350942 Whirlpool Spray Paint
18Paint, Touch-Up 1/2 Oz. (Coffee)
18paint, spray 13 oz. (coffee)
18Wire (14 Ga. 150 c Blue)
1872113 Whirlpool Touch-Up Paint
18242831 Whirlpool Oven Wire
18Golden Harvest (Uncut)
18Toast
18Paint, Spray (13 Oz.) (Platinum)
18Clip, Ground Wire
18Enamal, Toast (1 Qt. Uncut)
18W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
18Paint, Spray 13 Oz. (Avocado)
18WPL 72112
