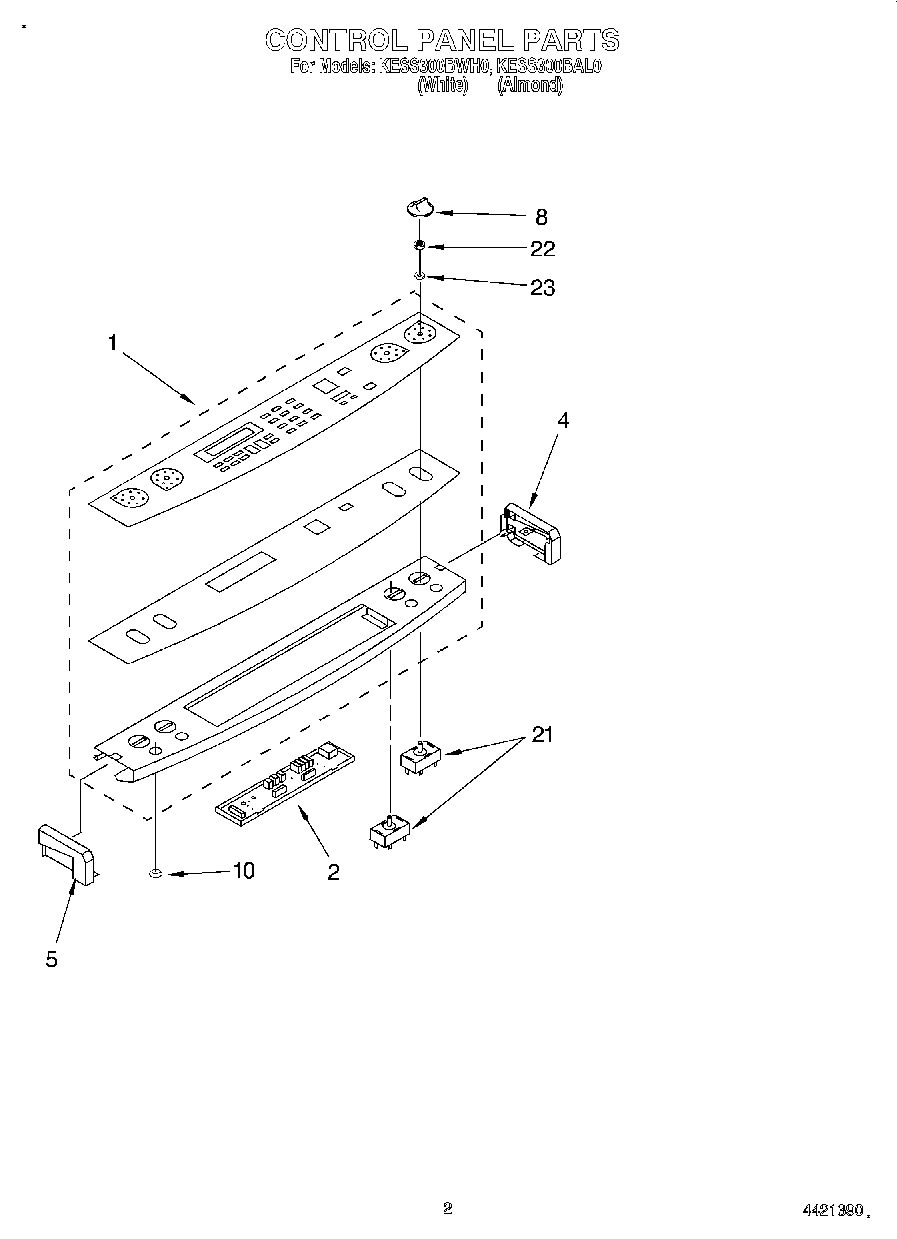

KESS300BWH0 02 – CONTROL PANEL

Products

PositionProduct
1Console, Glass (Almond)
1Console, Glass (White)
2Timer, Electronic
2Screw
4End Cap R.H. (White)
4End Cap R.H. (Almond)
5End Cap L.H. (White)
5End Cap L.H. (Almond)
5Back Splash (Screw (4) 10AB x 1/2“)
5WP4159387 Whirlpool Compactor Screw
8WP9750372FW Whirlpool Knob Assembly
8Knobs, Control (Almond)
10Len`s Indicator (4)
21Switch, Infinite (1250-1500W, LR)
21Switch, Infinite (2100-2600W, LF)
22Nut, Mounting (Single Element)
23Seal, Shaft (4)
