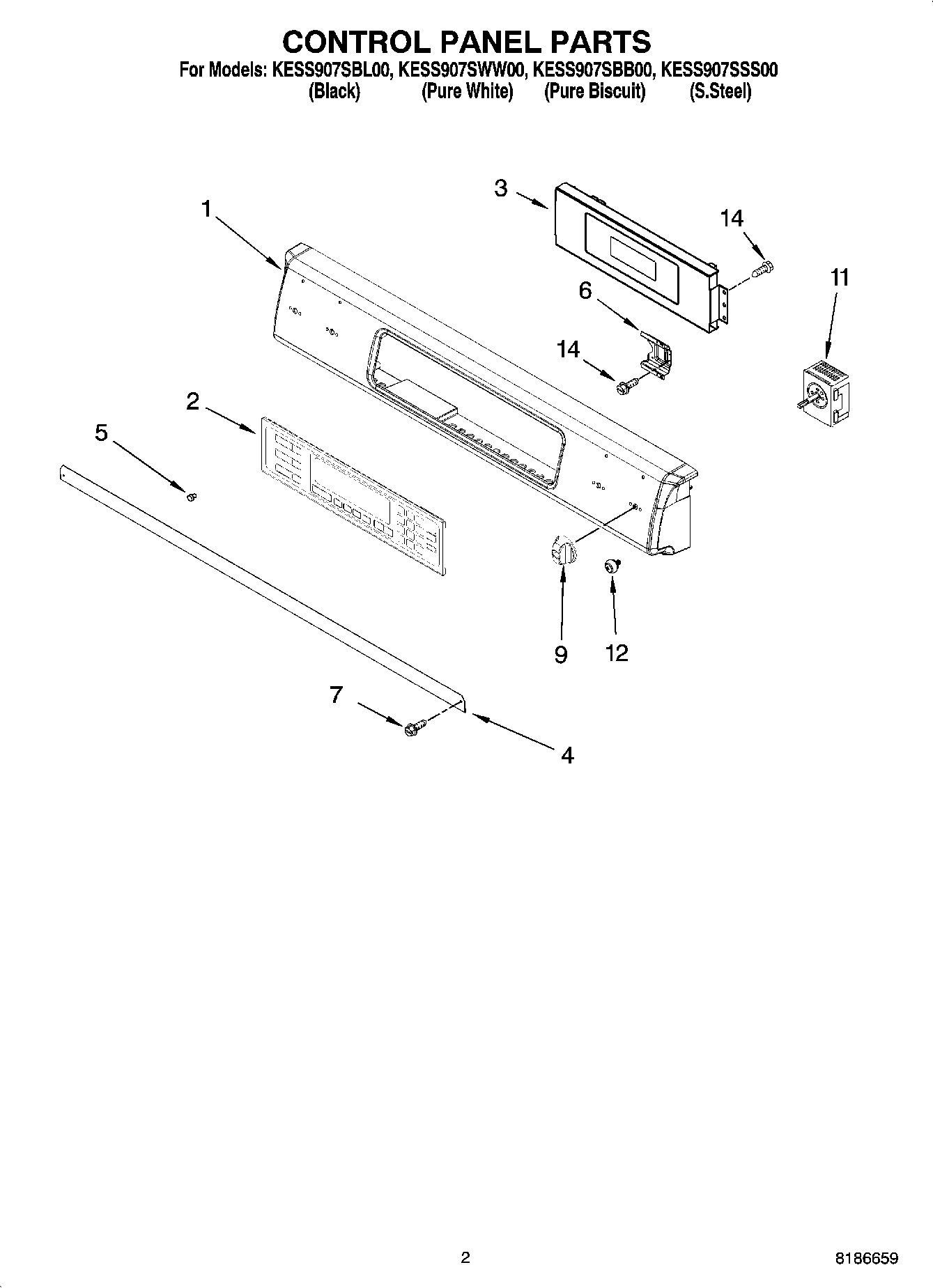

KESS907SBB00 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Black)
1	Control Panel (Biscuit)
1	Control Panel (Nickel Plated)
1	Control Panel (White)
2	WP9761566 Whirlpool Membrane Switch
3	Control, Interface
4	Shield, Console
5	WP3196068 Whirlpool Light Lens
6	Bracket, Thermostat (2)
7	W10491985 Whirlpool Screw
9	Knob (RF) (Biscuit)
9	Knob (RF) (Nickel Plated)
9	Knob (RF) (Black)
9	Knob (LF, RR, LR) (Biscuit)
9	WPW10193257 Whirlpool Right Front White Knob
9	WPW10193255 Whirlpool Range Black Knob – Left Rear, Front, Right Rear
9	WPW10193253 Whirlpool Burner Knob
9	WPW10156260 Whirlpool Stainless Knob
11	WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
11	WP9763761 Whirlpool Infinite Switch
12	9757778 Whirlpool Oven Bushing
14	WP3196557 Whirlpool Screw
