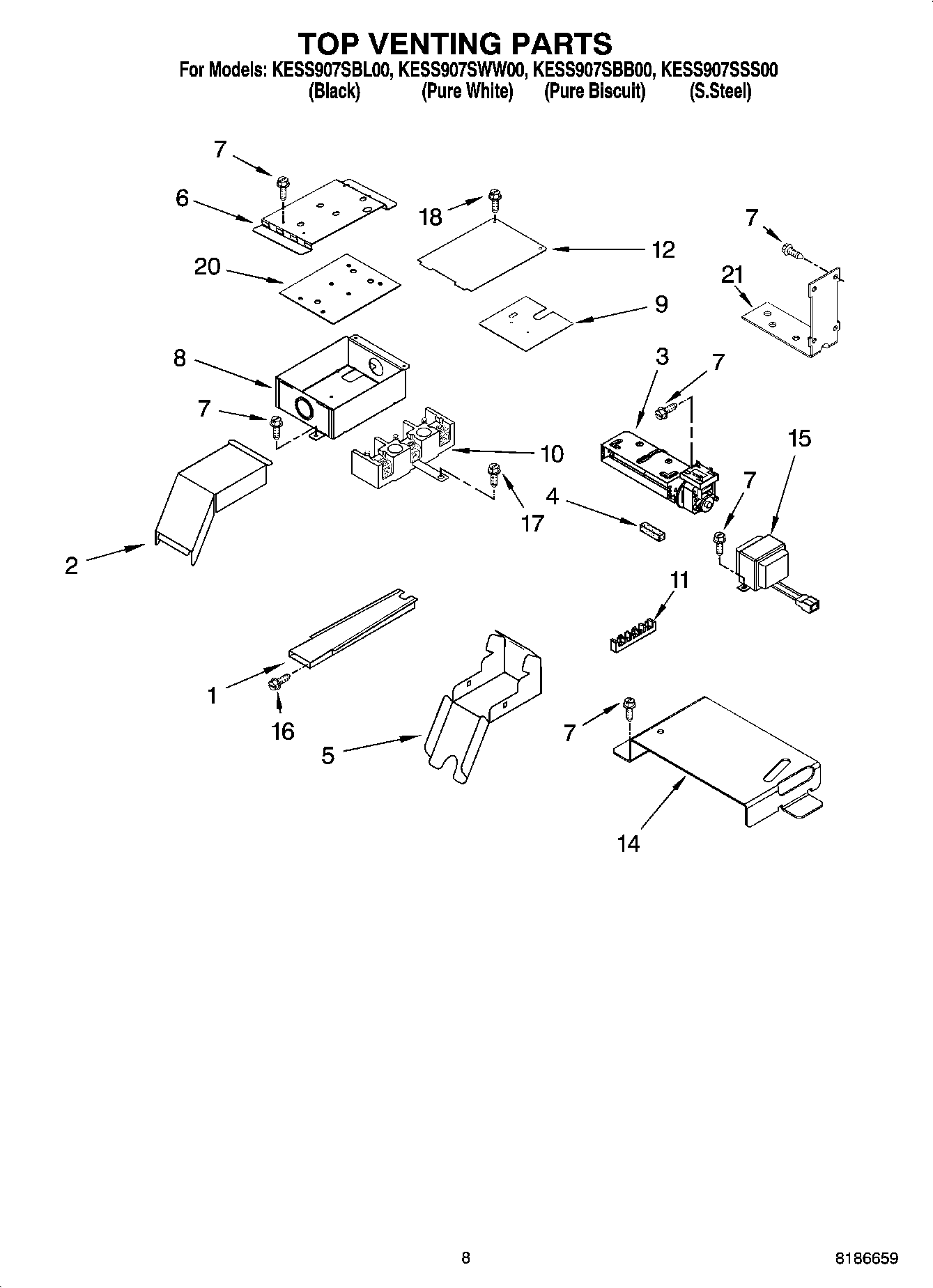

KESS907SBB00 06 – TOP VENTING PARTS, OPTIONAL PARTS

KESS907SBB00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KESS907SBB00 06 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL W10112276
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
HARNESS, COMMUNICATION
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI86836A8
WPL ARI86835A2
WPL ARI86834A5
WPL ARI86833A6
Harness,
9763481 Whirlpool Oven Wire Harness
261900 Whirlpool Microwave Spray
W10118728 Whirlpool Wire Harness
WPL 591014
242831 Whirlpool Oven Wire
Conduit
4448664 Whirlpool Oven Mounting Bracket
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP4449809 Whirlpool Screw
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Red 14 Ga.)
WP3400015 Whirlpool Screw
4450800 Whirlpool Oven Screw
285006 Whirlpool Spray
Spacer, Harness
Clip, Ground Wire
W11209404 Whirlpool Wire Harness
WP4448950 Whirlpool Screw
W11447673 Whirlpool Range Tip Anchor
814381 Whirlpool Pin
72032 Whirlpool Touch Up Paint Black
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3W10810687 Whirlpool Blower Assembly
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Bracket, Term.Box
8W10115858 Whirlpool Box Terminal
99759721 Whirlpool Oven Insulator
10WP9761958 Whirlpool Range Terminal Block
11WP8203546 Whirlpool Terminal Block
12Cover, Term Box
14WP9757829 Whirlpool Mounting Bracket
15WPW10111628 Whirlpool Transformer
16Screw
17Screw
18W10491985 Whirlpool Screw
20Insulation
21WP4455352 Whirlpool Mounting Bracket
