KESS907SBB01 01 – COOKTOP PARTS

KESS907SBB01 01 – COOKTOP PARTS

Written by

in

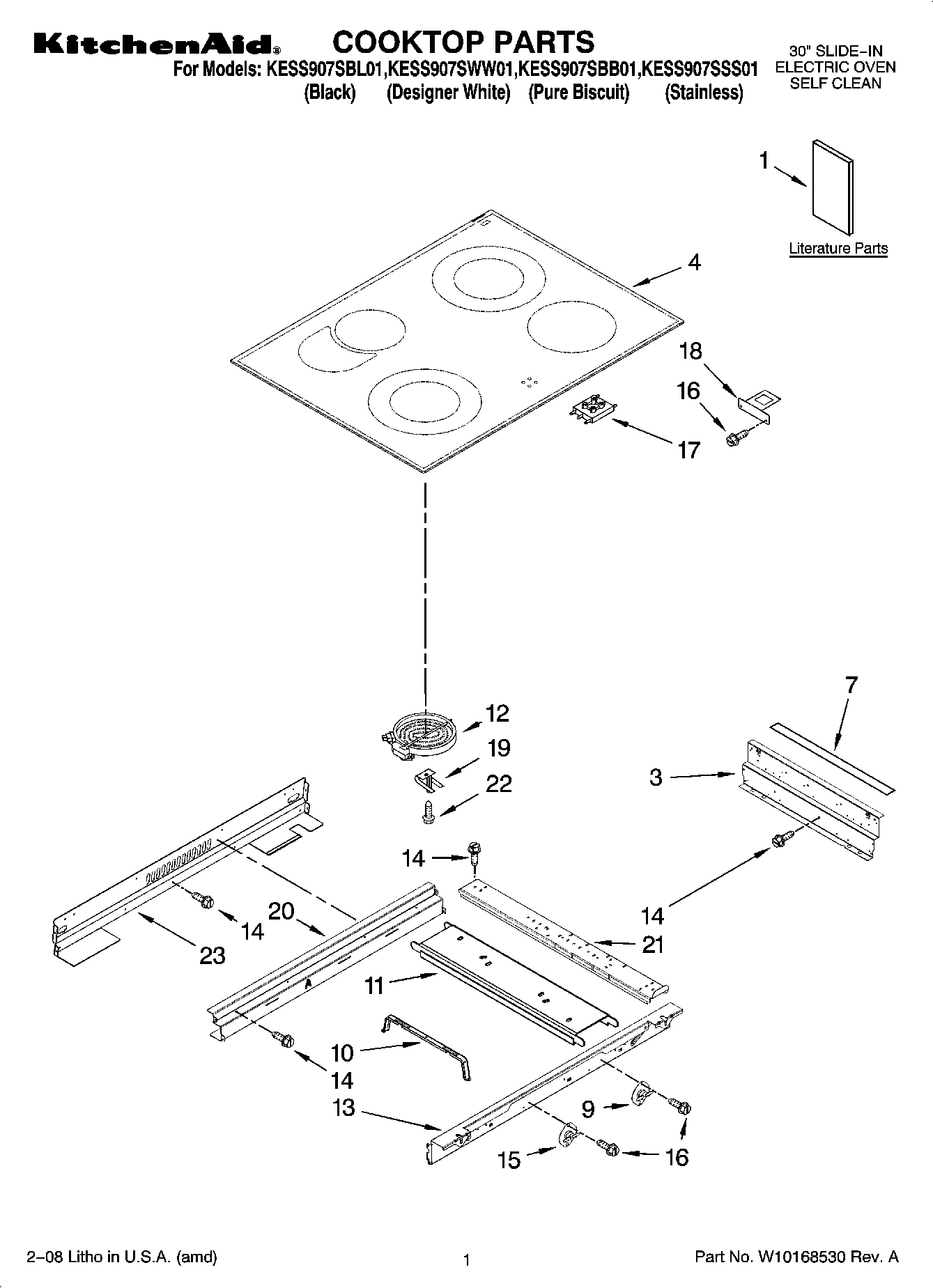

KESS907SBB01 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1Easy Set Guide
1INSTALLATION INSTRUCTIIONS
1Anti-Tip Instruct.
1Safer Cooking Tips (French)
1SAFER COOKING TIPS (ENGLISH
3Frame, Cooktop Side
4W10297306 Whirlpool Glass Cooktop Assembly
4Cooktop (Biscuit)
4W10297305 Whirlpool Cooktop
7Gasket (2)
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
12W10823730 Whirlpool Surface Element
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Light, Indicator (Hot Surface)
18Bracket, Ind. Lamp
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
