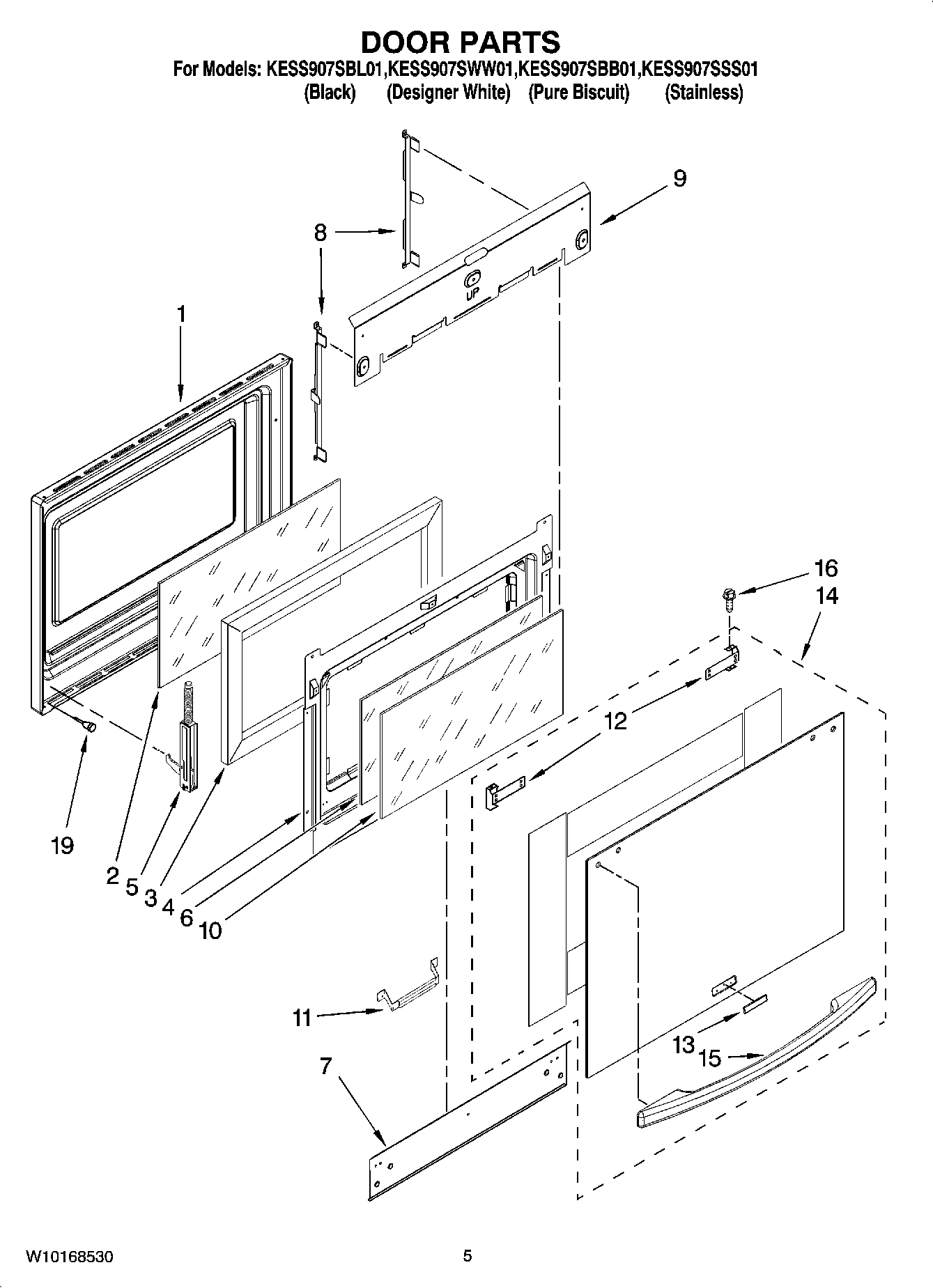

KESS907SBB01 03 – DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	HINGE-DOOR LH/SS DOOR SPRING
5	WP9760579 Whirlpool Right Door Hinge
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	Shield, Heat
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	Bracket, Handle (Right)
12	Bracket, Handle (Left)
13	Badge (Biscuit)
13	Badge (White)
13	Badge (Stainless)
13	Badge (Black)
14	Assembly, Door Kit (Black)
14	W10155557 Whirlpool Glass Door
14	Assembly, Door Kit (Biscuit)
14	Assembly, Door Kit (White)
15	Handle, Door (White)
15	Handle, Door (Black)
15	Handle, Door (Biscuit)
15	Door Handle
16	WPW10132940 Whirlpool Dishwasher Screw
19	4448520 Whirlpool Oven Bumper
