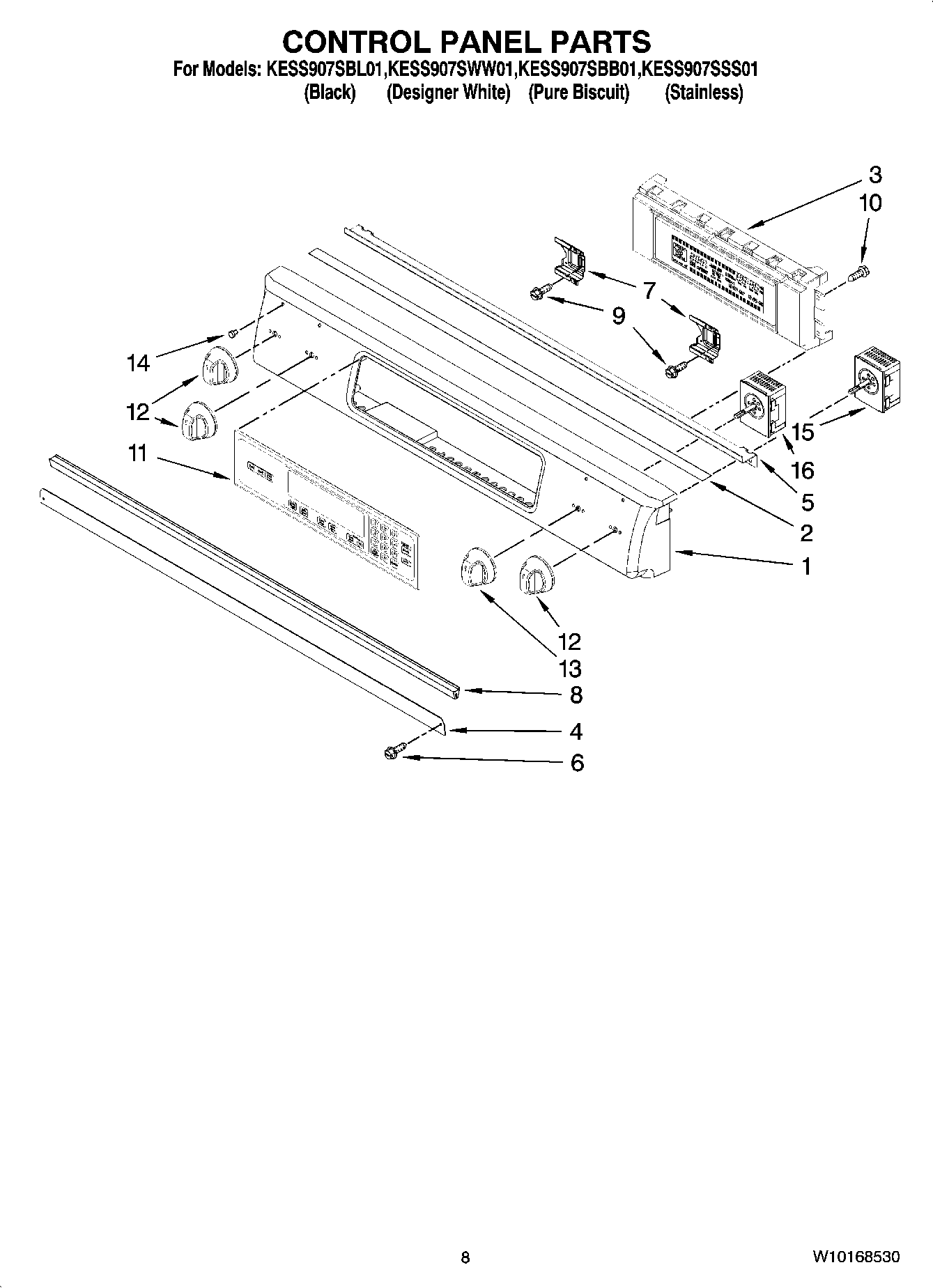

KESS907SBB01 05 – CONTROL PANEL PARTSadmin2025-04-26T09:45:58+00:00KESS907SBB01 05 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | Control Panel (White) |
| 1 | Control Panel (Biscuit) |
| 1 | Control Panel (Black) |
| 1 | Control Panel (Stainless) |
| 2 | W10110246 Whirlpool Gasket |
| 3 | Control, Electric |
| 4 | Shield, Console Vent |
| 5 | Bracket, Gasket |
| 6 | W10491985 Whirlpool Screw |
| 7 | Bracket, Thermostat (2) |
| 8 | W10116195 Whirlpool Vent Gasket |
| 9 | WP3196557 Whirlpool Screw |
| 10 | Screw |
| 11 | WP9761566 Whirlpool Membrane Switch |
| 12 | KNOB, SMART DUAL LF,LR,RR (BISCUIT) |
| 12 | WPW10193255 Whirlpool Range Black Knob - Left Rear, Front, Right Rear |
| 12 | WPW10193253 Whirlpool Burner Knob |
| 12 | WPW10156260 Whirlpool Stainless Knob |
| 13 | WPW10156261 Whirlpool Stainless Knob |
| 13 | WPW10193257 Whirlpool Right Front White Knob |
| 13 | Knob, Smart Single RF (Biscuit) |
| 13 | Knob, Smart Single RF (Black) |
| 14 | WP3196068 Whirlpool Light Lens |
| 15 | WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right |
| 16 | WP9763761 Whirlpool Infinite Switch |
