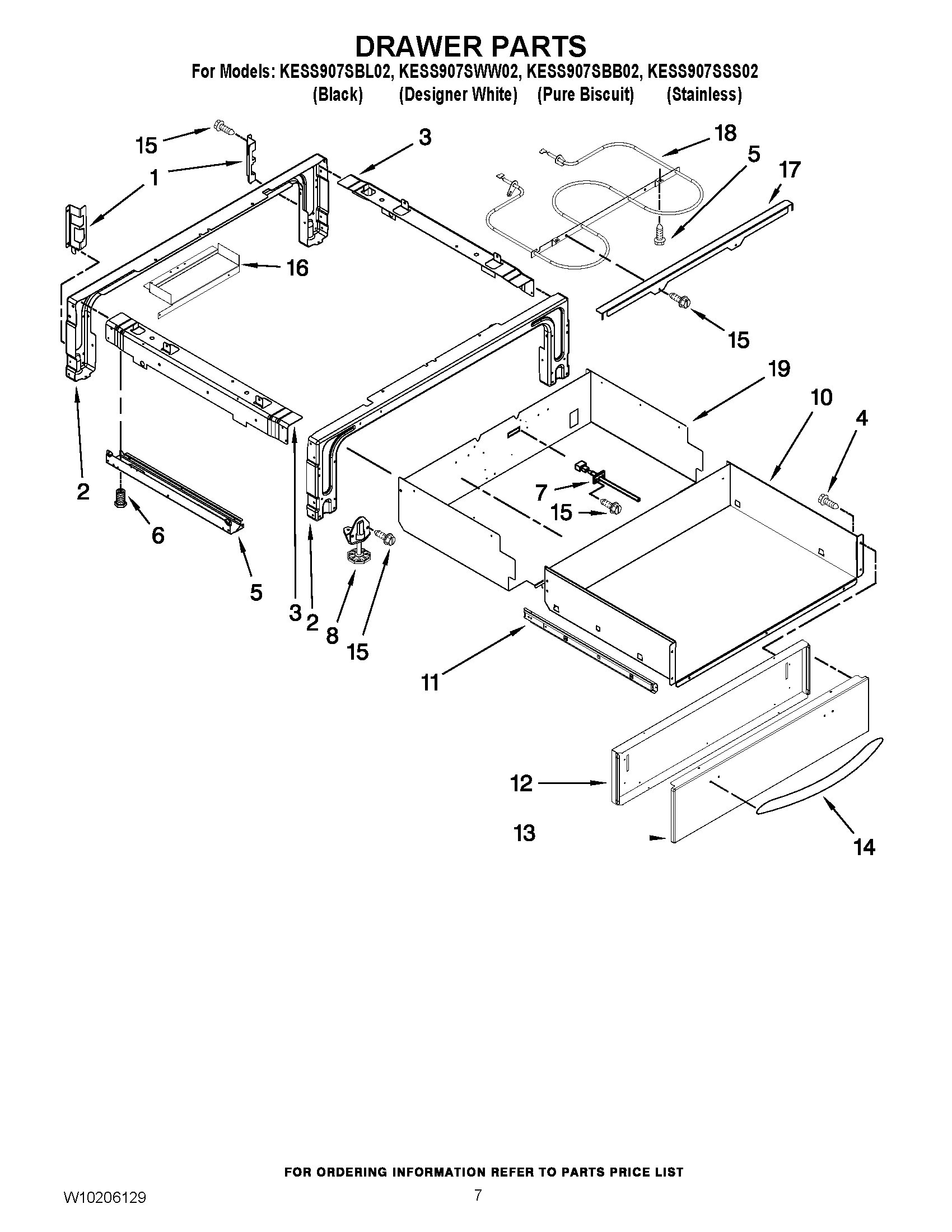

KESS907SBB02 04 – DRAWER PARTSadmin2025-04-26T09:48:31+00:00KESS907SBB02 04 – DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Support (R.Hand) |
| 1 | Support (L.Hand) |
| 2 | Support, Front & Rear |
| 3 | Brace, Drawer (Right) |
| 3 | Brace, Drawer (Left) |
| 4 | W10162096 Whirlpool Screw |
| 5 | Side, Base (R.Side) |
| 5 | Side, Base (L.Side) |
| 6 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 7 | WP8274149 Whirlpool Sensor Assembly |
| 8 | WP3196037 Whirlpool Leveling Foot |
| 10 | Drawer |
| 11 | WPW10155633 Whirlpool Drawer Slide Rail |
| 11 | WPW10155632 Whirlpool Slide Drawer Assembly |
| 12 | Panel, Drawer |
| 13 | Front, Drawer (Biscuit) |
| 13 | Front, Drawer (Black) |
| 13 | Front, Drawer (Stainless) |
| 13 | Front, Drawer (White) |
| 14 | Handle, Drawer (White) |
| 14 | Handle, Drawer (Stainless) |
| 14 | Handle, Drawer (Black) |
| 14 | Handle, Drawer (Biscuit) |
| 15 | WP3196557 Whirlpool Screw |
| 16 | Cover, Terminal |
| 17 | Support, Element |
| 18 | 9760775 Whirlpool Oven Warm Element |
| 19 | Enclosure, Warming Drawer |
