KESS907SBL00 01 – COOKTOP PARTS

KESS907SBL00 01 – COOKTOP PARTS

Written by

in

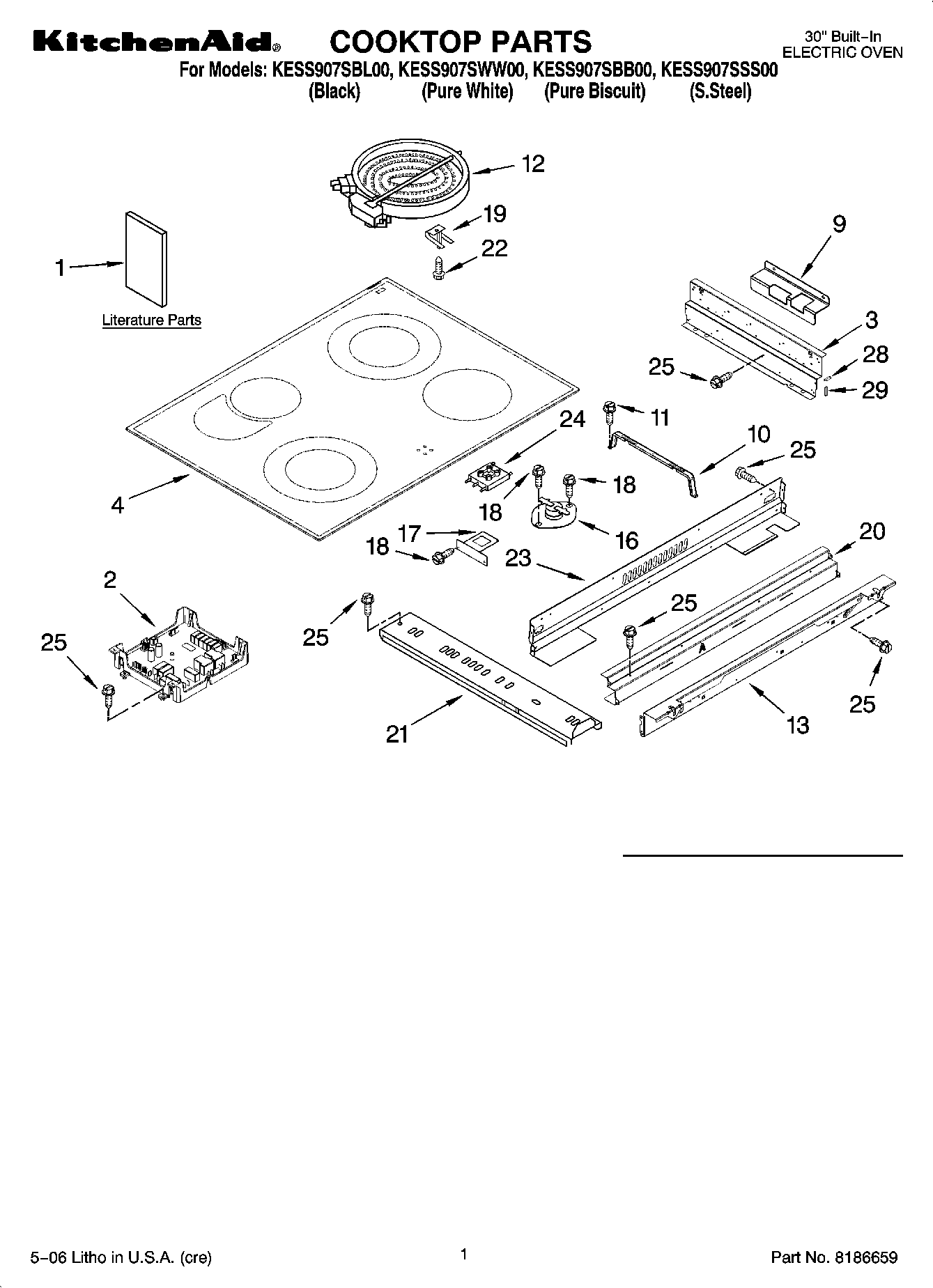

KESS907SBL00 01 – COOKTOP PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips
1Anti-Tip Instruct.
1Tech Sheet
1Easy Set Guide
2Central, Appliance
3Frame, Cooktop Side
4W10297305 Whirlpool Cooktop
4W10297306 Whirlpool Glass Cooktop Assembly
4Cooktop (Biscuit)
9Support (L.Hand)
9Support (R.Hand)
10WP9756821 Whirlpool Support
11WP4449809 Whirlpool Screw
12Element, Surface (1800/1000W)
12W10823698 Whirlpool Surface Element Right Rear
12W10823692 Whirlpool Dual Radiant Element
13Frame, Cooktop Front
16WP9759944 Whirlpool Thermostat
17Bracket, Ind. Lamp
18W10491985 Whirlpool Screw
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
21Rail, Element (2) (Center (1))
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24Light, Indicator (Hot Surface)
25WP3196557 Whirlpool Screw
28Grommet (19mm)
29Grommet (38mm)
