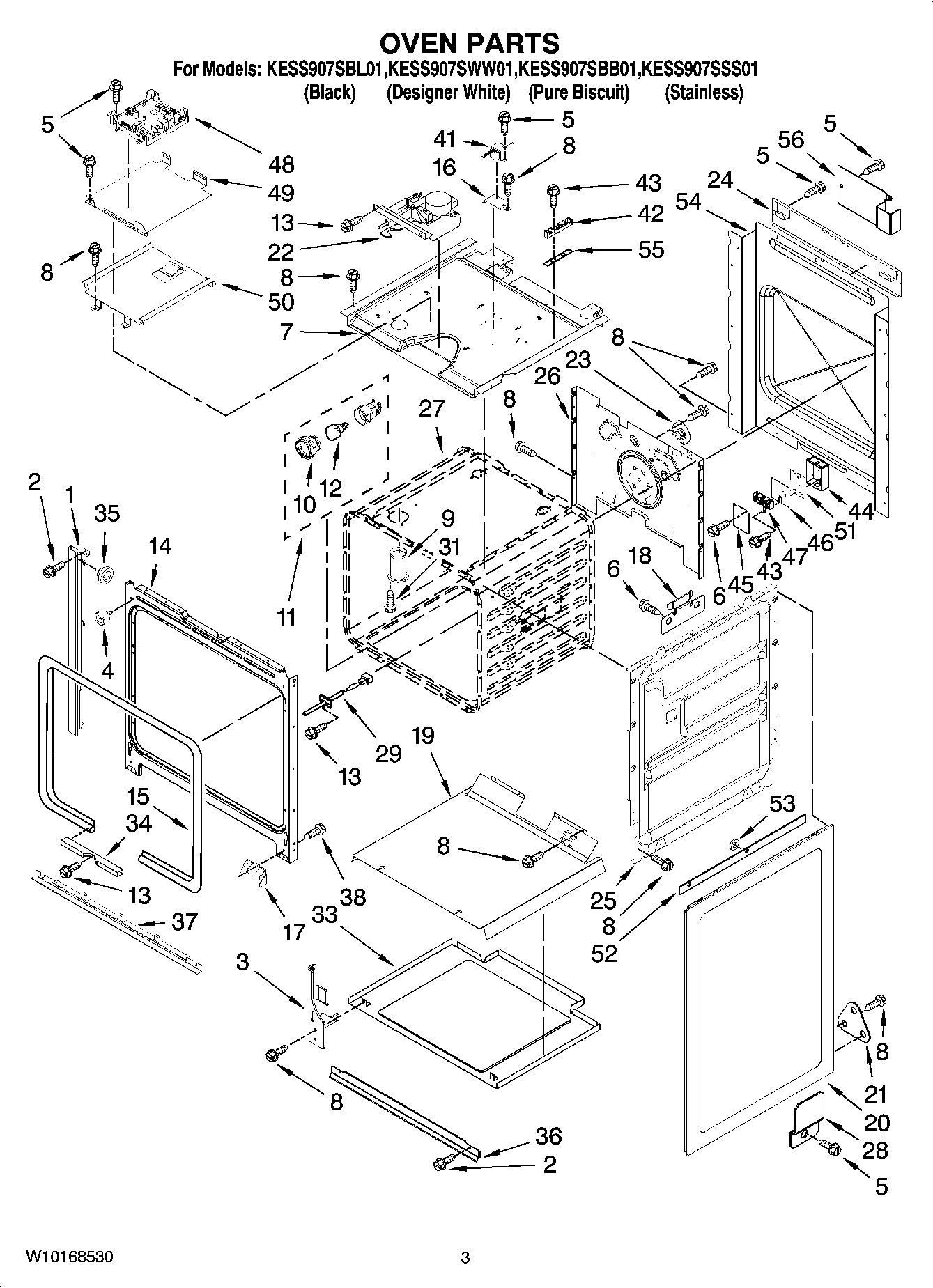

KESS907SBL01 02 – OVEN PARTS

Products

PositionProduct
WPL 9756470
WPL 9756817
WPL ARI86851A3
1TRIM, SIDE (LEFT) (BLACK)
1TRIM, SIDE (LEFT) (WHITE)
1Trim, Side Right (Black)
1Trim, Side Right (White)
1TRIM, SIDE (LEFT STAINLESS)
1TRIM, SIDE (RIGHT STAINLESS)
1TRIM, SIDE (LEFT) (BISCUIT)
1Trim, Side Right (Biscuit)
2WP3400832 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP3196557 Whirlpool Screw
6W10491985 Whirlpool Screw
7Top Chassis
8WP4449809 Whirlpool Screw
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449154 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16WP9757829 Whirlpool Mounting Bracket
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20Body, Side (White)
20BODY, SIDE BLACK
21BRACKET,SIDE PANEL
22WP9760889 Whirlpool Door Latch
23WP9759242 Whirlpool Thermostat
24Brace, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28Clip, Side Panel
29WPW10131825 Whirlpool Oven Temperature Sensor
31SCREW
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WP4448444 Whirlpool Grommet
36Vent, Bottom Upper (Stainless)
36Vent, Bottom Upper (Black)
36Ve
36Vent, Bottom Upper (Biscuit)
37Vent, Bottom Lower (Black)
37Vent, Bottom Lower (Biscuit)
37Vent, Bottom Lower (Stainless)
37Vent, Bottom Lower (White)
38WP4449743 Whirlpool Screw
41WPW10111628 Whirlpool Transformer
42WP8203546 Whirlpool Terminal Block
43Screw
44W10115858 Whirlpool Box Terminal
45Cover, Term Box
469759721 Whirlpool Oven Insulator
47WP9761958 Whirlpool Range Terminal Block
48APPLIANCE, MANAGER
49W10083460 Whirlpool Slide Assembly
50Bracket, GOC
51Insulation
52WPL 9759722
53WPL 9760481
54WPL 9758583
55WPL 9759885
56Cover, Rear Standoff
