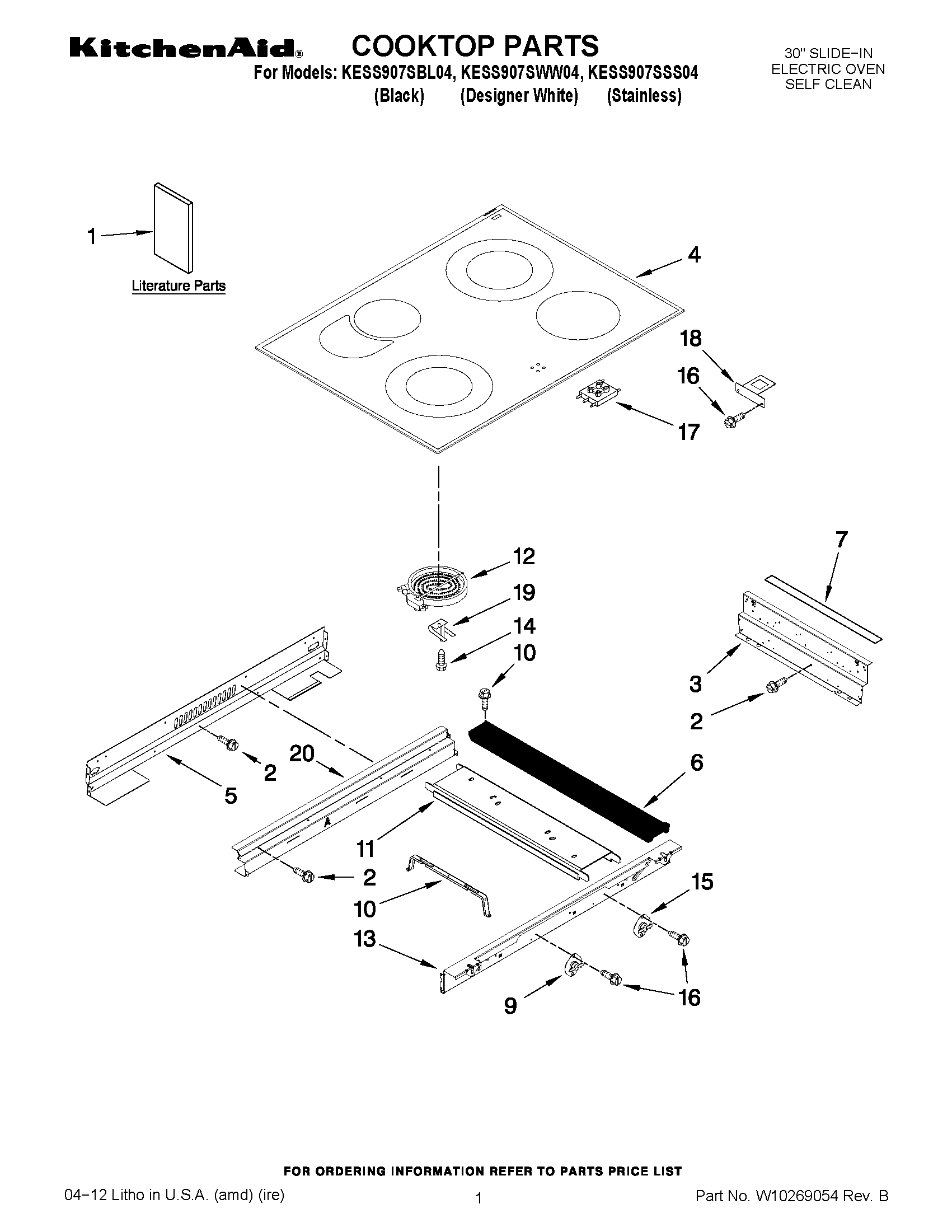

KESS907SBL04 01 – COOKTOP PARTS
Written by
in
KESS907SBL04 01 – COOKTOP PARTS
Products
Position
Product
1
TECH SHEET
1
INSTALLATION INSTRUCTIIONS
1
USE & CARE GUIDE
1
Easy Set Guide
1
Anti-Tip Instruct.
1
Safer Cooking Tips (French)
1
SAFER COOKING TIPS (ENGLISH
2
WP486754 Whirlpool Compactor Screw
3
Frame, Cooktop Side
4
W10297306 Whirlpool Glass Cooktop Assembly
4
W10297305 Whirlpool Cooktop
5
Cover, Cktp Rear
6
Rail, Element (3)
7
Gasket (2)
9
WP9759944 Whirlpool Thermostat
10
WP9756821 Whirlpool Support
11
Rail, Element (2) (Center (1))
12
W10823698 Whirlpool Surface Element Right Rear
12
ELEMENT, SURFACE (LR/1000W)
12
W10823692 Whirlpool Dual Radiant Element
13
Frame, Cooktop Front
14
WP3196557 Whirlpool Screw
15
Thermostat SPST (205)
16
W10491985 Whirlpool Screw
17
Light, Indicator (Hot Surface)
18
Bracket, Ind. Lamp
19
9759094 Whirlpool Spring
20
Frame, Cooktop Rear
←
