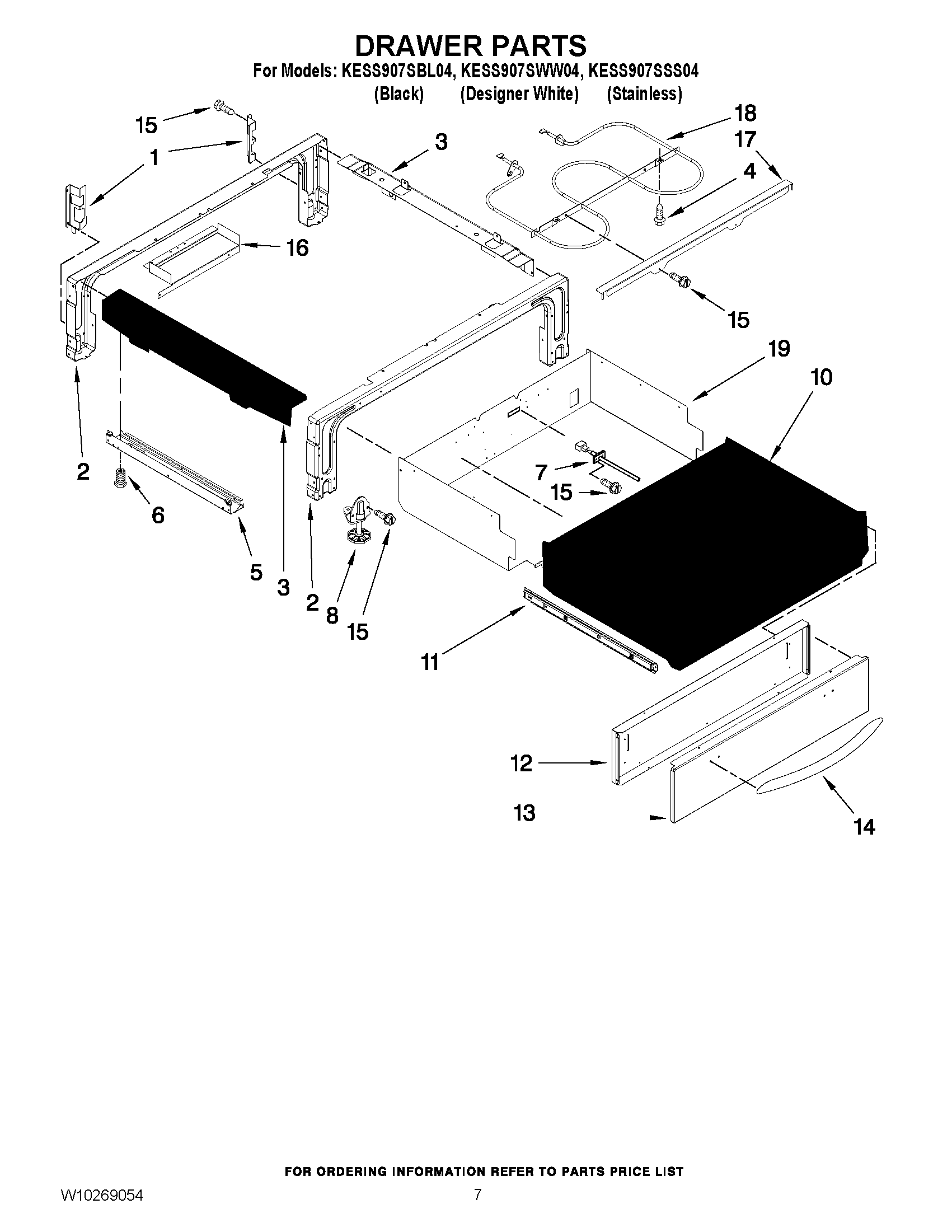

KESS907SBL04 04 – DRAWER PARTS
Written by
in
KESS907SBL04 04 – DRAWER PARTS
Products
Position
Product
1
Support (R.Hand)
1
Support (L.Hand)
2
Support, Front & Rear
3
Brace, Drawer (Left)
3
Brace, Drawer (Right)
4
W10162096 Whirlpool Screw
5
Side, Base (R.Side)
5
Side, Base (L.Side)
6
WPW10058460 Whirlpool Appliance Levelling Leg
7
WP8274149 Whirlpool Sensor Assembly
8
WP3196037 Whirlpool Leveling Foot
10
DRAWER
11
WPW10155633 Whirlpool Drawer Slide Rail
11
WPW10155632 Whirlpool Slide Drawer Assembly
12
PANEL, DRAWER
13
Front, Drawer (Black)
13
Front, Drawer (White)
13
Front, Drawer (Stainless)
14
HANDLE, DRAWER (WHITE)
14
HANDLE, DRAWER (BLACK)
14
HANDLE, DRAWER
15
WP3196557 Whirlpool Screw
16
Cover, Terminal
17
Support, Element
18
ELEMENT, WARMING DRAWER
19
Enclosure, Warming Drawer
←
