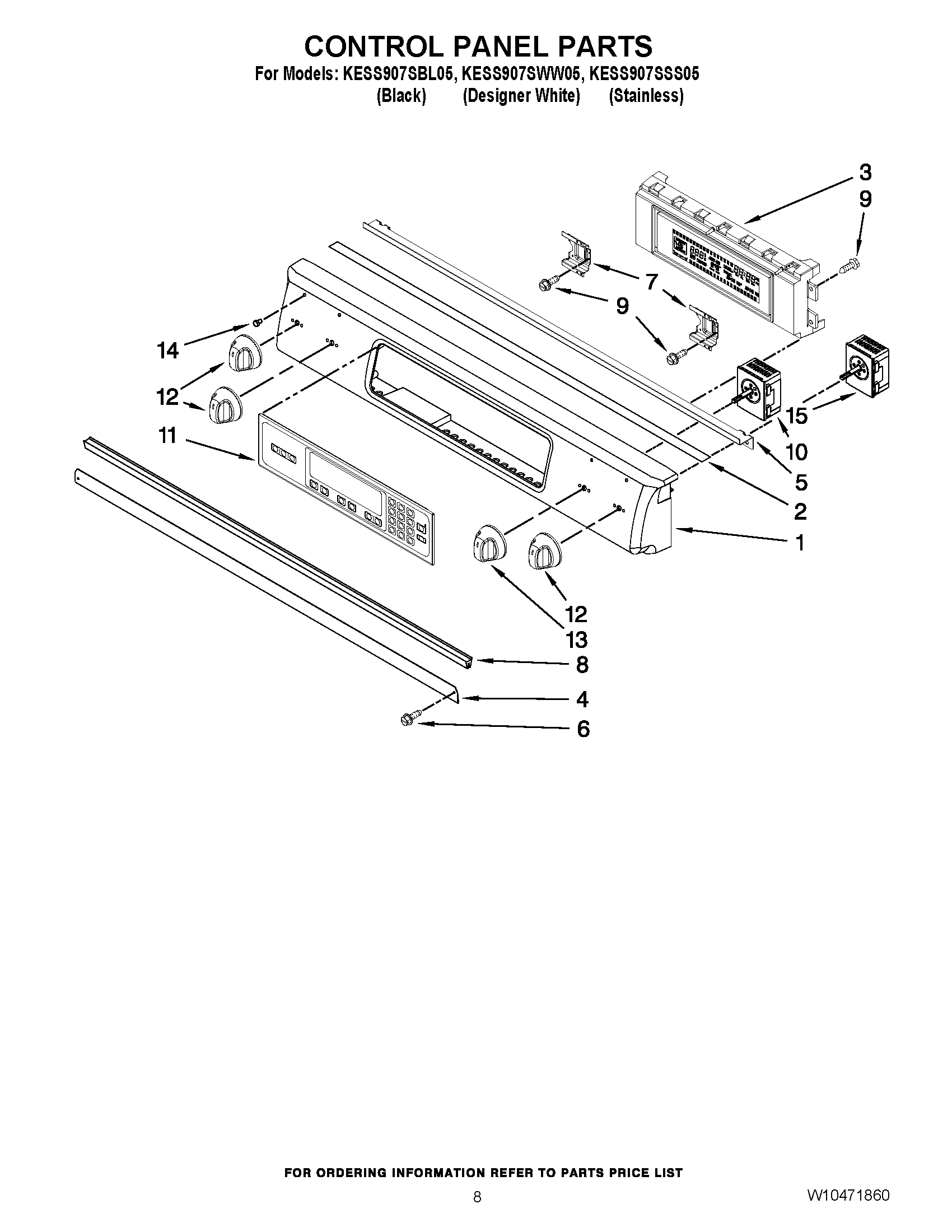

KESS907SBL05 05 – CONTROL PANEL PARTS
Written by
in
KESS907SBL05 05 – CONTROL PANEL PARTS
Products
Position
Product
1
CONTROL PANEL (STAINLESS)
1
CONTROL PANEL (WHITE)
1
Control Panel (Black)
2
W10110246 Whirlpool Gasket
3
Control, Electric
4
Shield, Console Vent
5
Bracket, Gasket
6
W10061760 Whirlpool Screw
7
Bracket, Thermostat (2)
8
W10116195 Whirlpool Vent Gasket
9
WP3196557 Whirlpool Screw
10
WP9763761 Whirlpool Infinite Switch
11
WP9761566 Whirlpool Membrane Switch
12
WPW10193253 Whirlpool Burner Knob
12
WPW10193255 Whirlpool Range Black Knob – Left Rear, Front, Right Rear
12
WPW10156260 Whirlpool Stainless Knob
13
WPW10156261 Whirlpool Stainless Knob
13
WPW10193257 Whirlpool Right Front White Knob
13
KNOB, SMART SINGLE RF (BLACK)
14
WP3196068 Whirlpool Light Lens
15
WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
←
