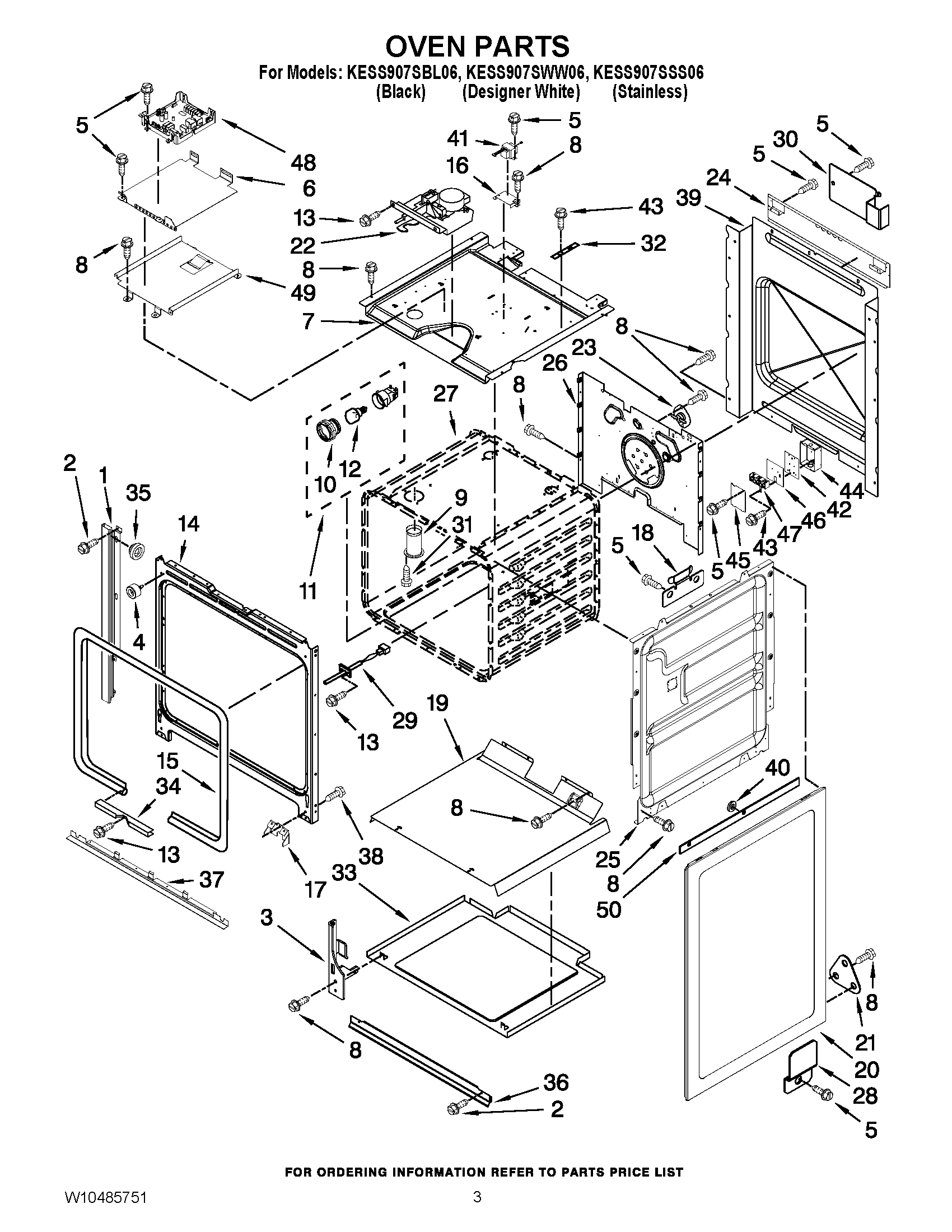

KESS907SBL06 02 – OVEN PARTS

KESS907SBL06 02 – OVEN PARTS

Written by

in

KESS907SBL06 02 – OVEN PARTS

Products

PositionProduct
NIWPL 9756817
NIWPL 9756470
1TRIM, SIDE (LEFT) (BLACK)
1TRIM, SIDE (LEFT) (WHITE)
1Trim, Side Right (Black)
1Trim, Side Right (White)
1TRIM, SIDE (LEFT STAINLESS)
1TRIM, SIDE (RIGHT STAINLESS)
2WP3400832 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
5WP3196557 Whirlpool Screw
6W10083460 Whirlpool Slide Assembly
7Top Chassis
8SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light (2)
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13WP4449154 Whirlpool Screw
14WPW10115831 Whirlpool Front Frame
15W11675844 Whirlpool Oven Gasket
16WP9757829 Whirlpool Mounting Bracket
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20BODY, SIDE
20BODY, SIDE (WHITE)
21BRACKET,SIDE PANEL
22WPW10195934 Whirlpool Door Latch
23WP9759242 Whirlpool Thermostat
24Brace, Side Panel
25W10782197 Whirlpool Side Panel
26Back, Chassis
27CABINET (NOT A SERVICEABLE PART)
28Clip, Side Panel
29WPW10131825 Whirlpool Oven Temperature Sensor
30Cover, Rear Standoff
31SCREW
32WPL 9759885
33Base, Chassis
34WP4448933 Whirlpool Retainer
35WP4448444 Whirlpool Grommet
36Vent, Bottom Upper (Stainless)
36Vent, Bottom Upper (Black)
36Ve
37Vent, Bottom Lower (Stainless)
37Vent, Bottom Lower (White)
37Vent, Bottom Lower (Black)
38WPW10292297 Whirlpool Screw
39WPL 9758583
40WPL 9760481
41WPW10111628 Whirlpool Transformer
42Insulation
43Screw
44W10115858 Whirlpool Box Terminal
45Cover, Term Box
469759721 Whirlpool Oven Insulator
47WPW10245259 Whirlpool Terminal Block
48APPLIANCE, MANAGER
49Bracket, GOC
50WPL 9759722
