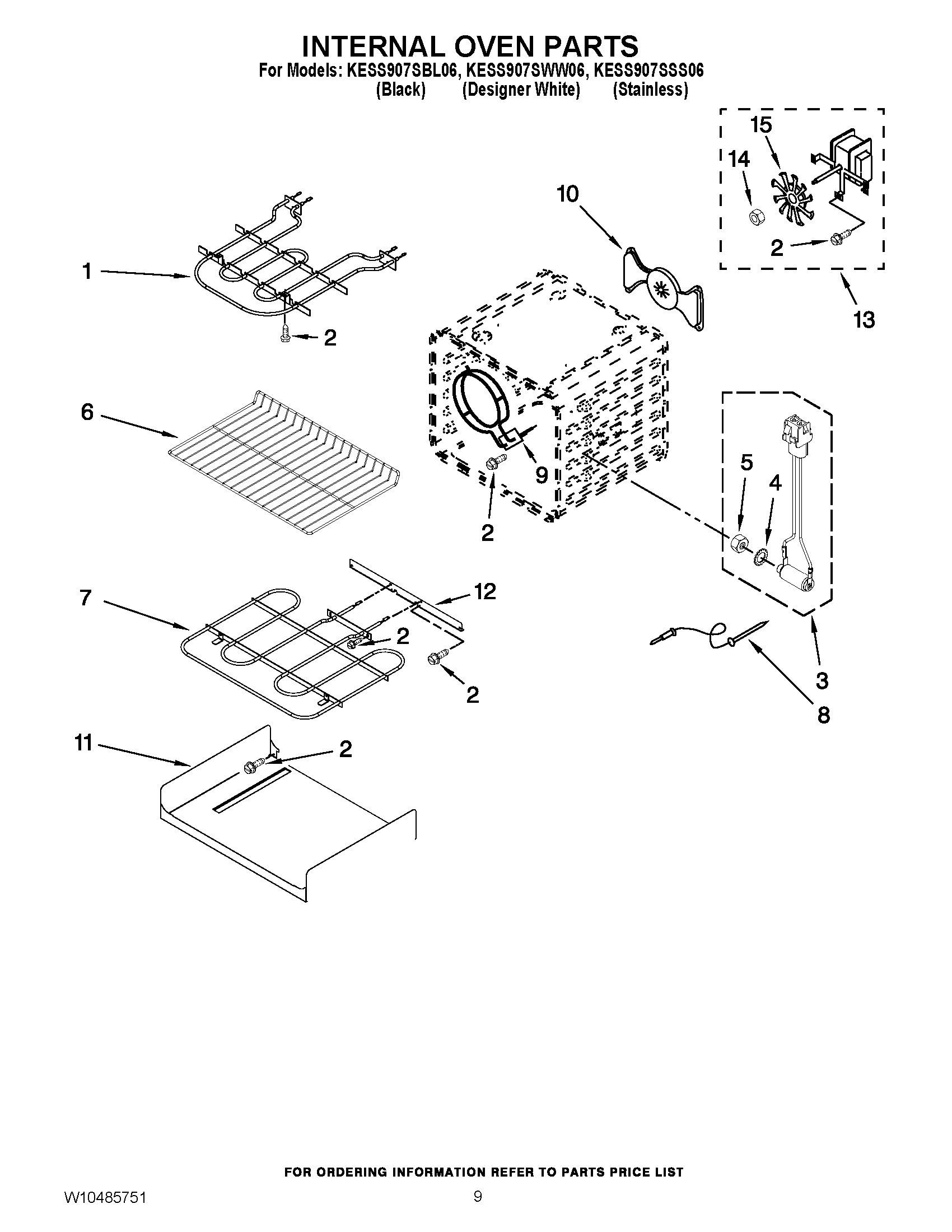

KESS907SBL06 06 – INTERNAL OVEN PARTS
Written by
in
KESS907SBL06 06 – INTERNAL OVEN PARTS
Products
Position
Product
1
ELMNT-BROL
2
WP4449154 Whirlpool Screw
3
8186589 Whirlpool Jack Probe
4
WP9755547 Whirlpool Lockwasher
5
WP9755546 Whirlpool Locknut
6
WPW10179152 Whirlpool Rack Oven
7
ELMNT-BAKE
8
WP9755542 Whirlpool Oven Meat Probe
9
WP9760769 Whirlpool Element Assembly
10
W10860133 Whirlpool Convection Baffle
11
Tray, Hidden Bake
12
4450039 Whirlpool Oven Access Cover
13
W10794022 Whirlpool Oven Cooktop Fan Motor
14
WPW10116349 Whirlpool Nut
15
W10758272 Whirlpool Convection Fan
←
