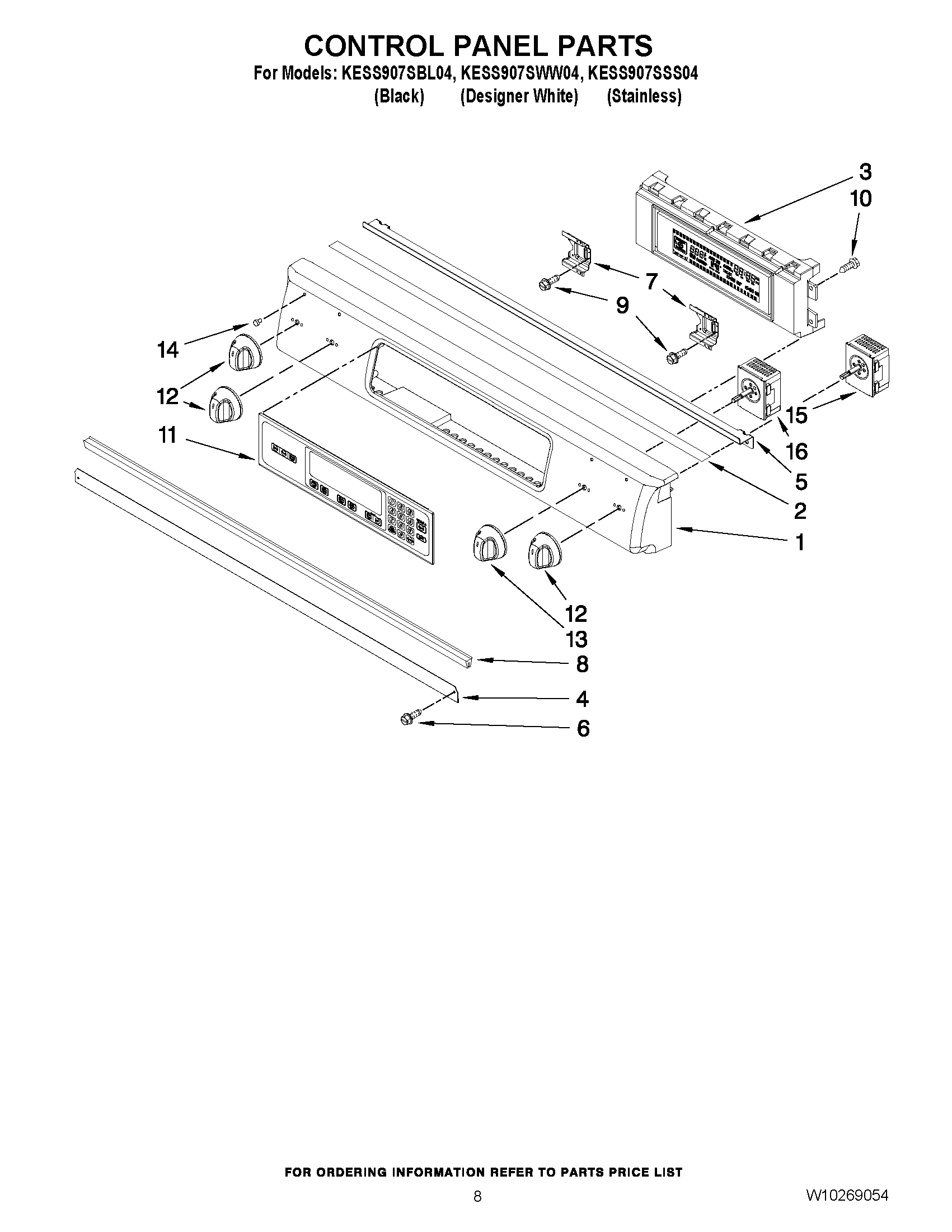

KESS907SSS04 05 – CONTROL PANEL PARTS

Products

Position	Product
1	CONTROL PANEL (STAINLESS)
1	CONTROL PANEL (WHITE)
1	Control Panel (Black)
2	W10110246 Whirlpool Gasket
3	Control, Electric
4	Shield, Console Vent
5	Bracket, Gasket
6	W10491985 Whirlpool Screw
7	Bracket, Thermostat (2)
8	W10116195 Whirlpool Vent Gasket
9	WP3196557 Whirlpool Screw
10	Screw
11	WP9761566 Whirlpool Membrane Switch
12	WPW10193255 Whirlpool Range Black Knob – Left Rear, Front, Right Rear
12	WPW10193253 Whirlpool Burner Knob
12	WPW10156260 Whirlpool Stainless Knob
13	WPW10156261 Whirlpool Stainless Knob
13	WPW10193257 Whirlpool Right Front White Knob
13	KNOB, SMART SINGLE RF (BLACK)
14	WP3196068 Whirlpool Light Lens
15	WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
16	WP9763761 Whirlpool Infinite Switch
