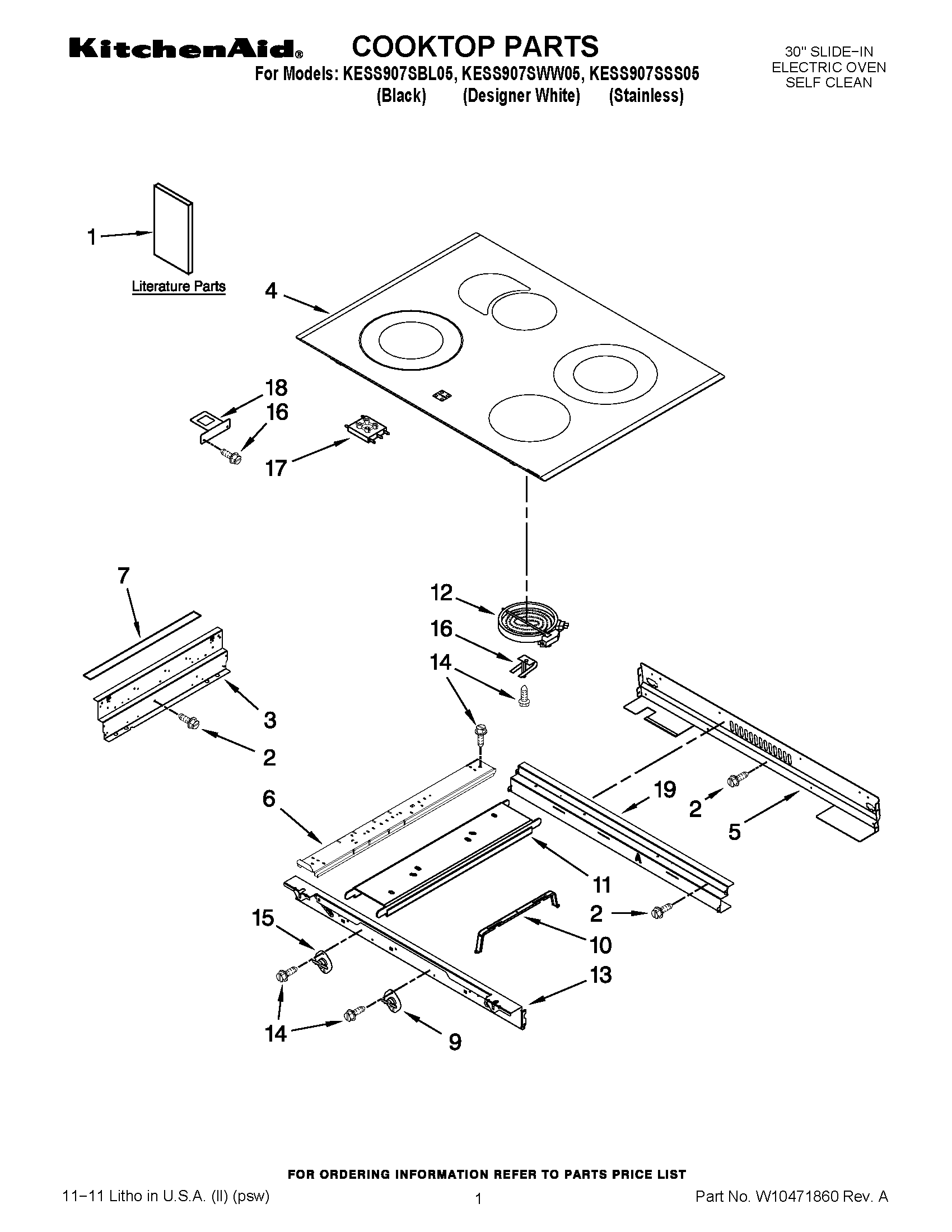

KESS907SSS05 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Easy Set Guide
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIIONS
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Anti-Tip Instruct.
1	TECH SHEET
1	Safer Cooking Tips (French)
2	WP486754 Whirlpool Compactor Screw
3	Frame, Cooktop Side
4	W10297305 Whirlpool Cooktop
4	W10297306 Whirlpool Glass Cooktop Assembly
5	Cover, Cktp Rear
6	Rail, Element (3)
7	Gasket (2)
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	WP8273993 Whirlpool Surface Element
12	WPW10248257 Whirlpool Surface Element
12	ELMNT-SURF
13	Frame, Cooktop Front
14	WP3196557 Whirlpool Screw
15	Thermostat SPST (205)
16	9759094 Whirlpool Spring
17	Light, Indicator (Hot Surface)
18	Bracket, Ind. Lamp
19	Frame, Cooktop Rear
