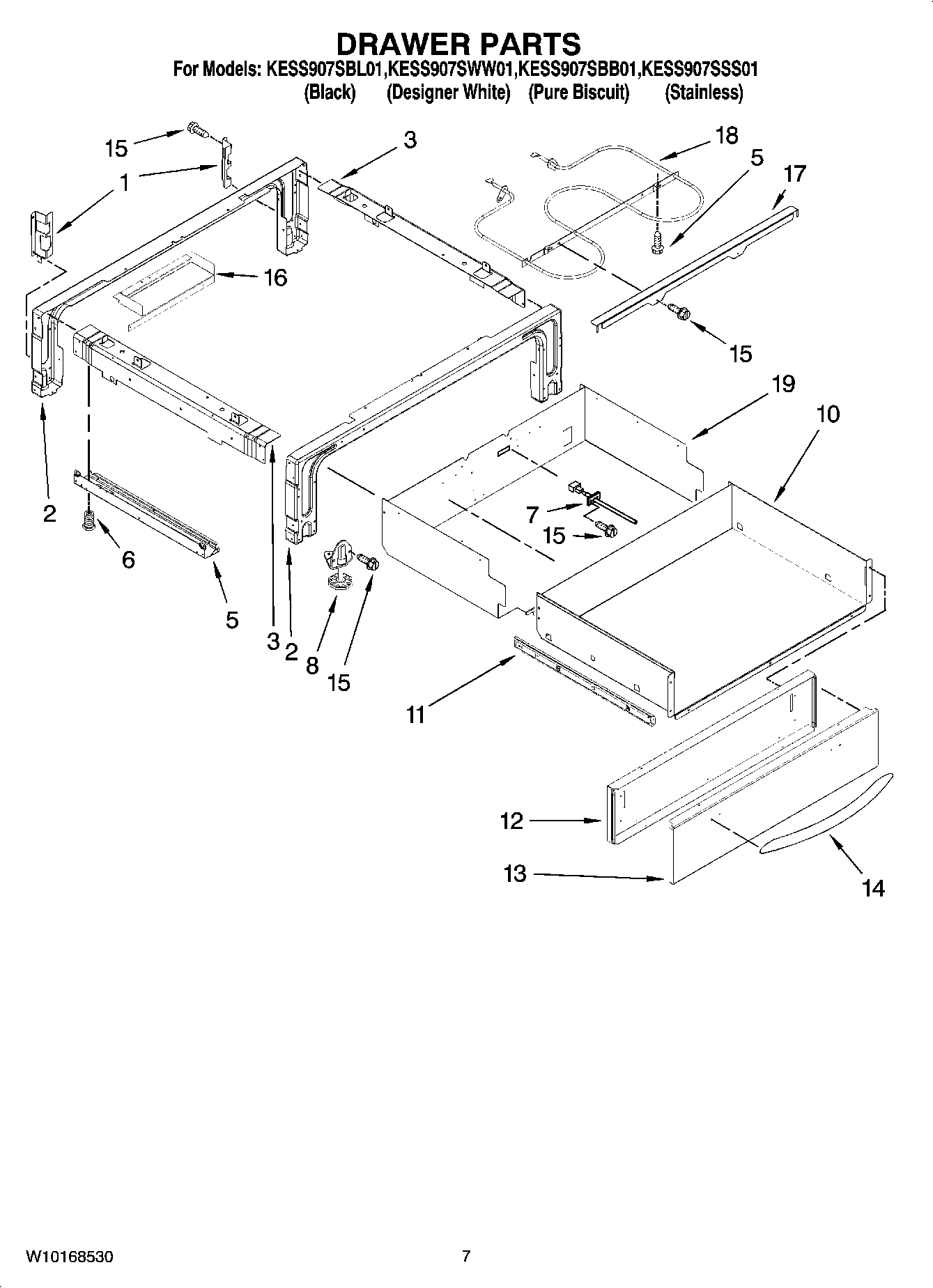

KESS907SWW01 04 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Right)
3Brace, Drawer (Left)
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7WP8274149 Whirlpool Sensor Assembly
8WP3196037 Whirlpool Leveling Foot
10Drawer
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12Panel, Drawer
13Front, Drawer (Biscuit)
13Front, Drawer (Black)
13Front, Drawer (Stainless)
13Front, Drawer (White)
14Handle, Drawer (White)
14Handle, Drawer (Stainless)
14Handle, Drawer (Black)
14Handle, Drawer (Biscuit)
15WP3196557 Whirlpool Screw
16Cover, Terminal
17Support, Element
189760775 Whirlpool Oven Warm Element
19Enclosure, Warming Drawer
