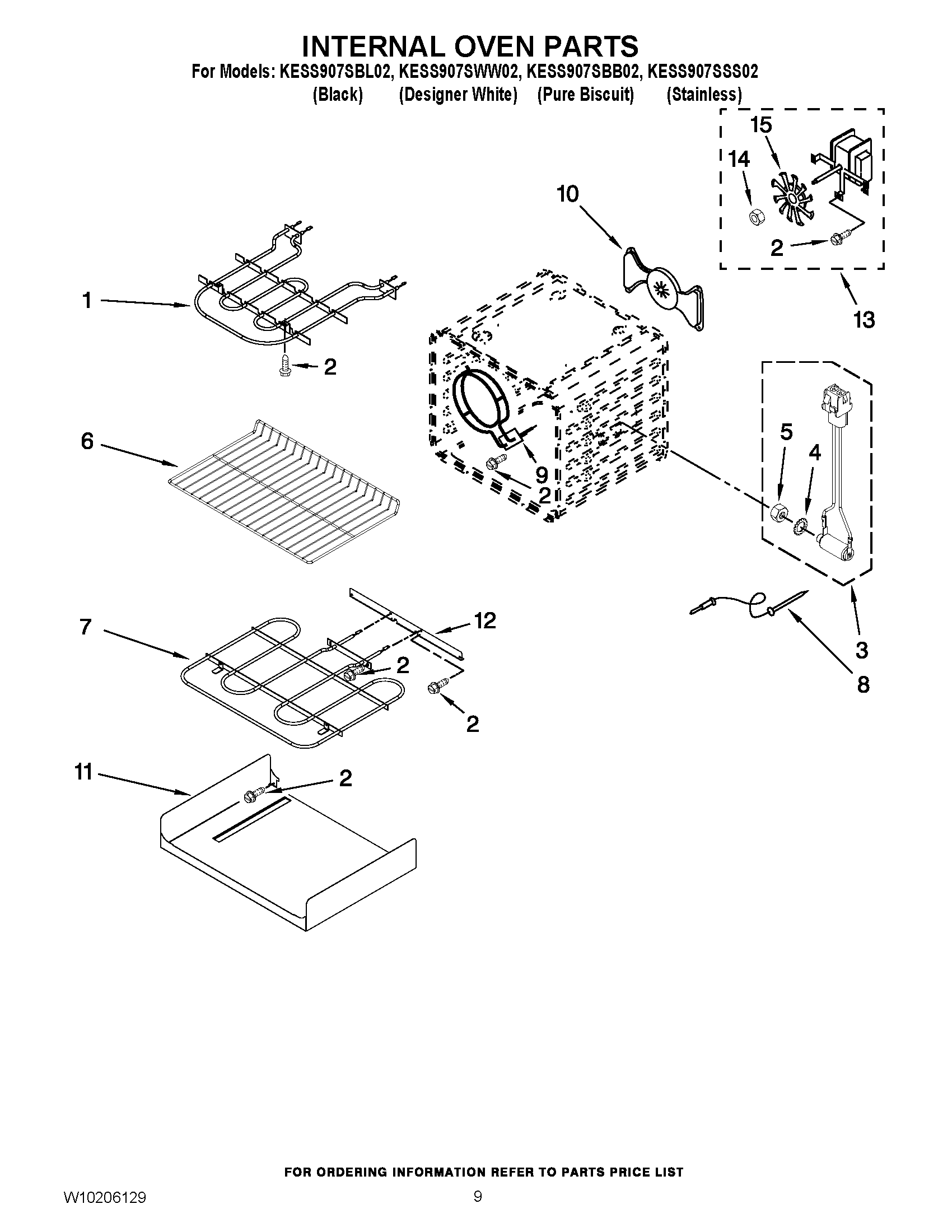

KESS907SWW02 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WP4449154 Whirlpool Screw
3	8186589 Whirlpool Jack Probe
4	WP9755547 Whirlpool Lockwasher
5	WP9755546 Whirlpool Locknut
6	WPW10179152 Whirlpool Rack Oven
7	ELMNT-BAKE
8	WP9755542 Whirlpool Oven Meat Probe
9	WP9760769 Whirlpool Element Assembly
10	W10860133 Whirlpool Convection Baffle
11	Tray, Hidden Bake
12	4450039 Whirlpool Oven Access Cover
13	W10794022 Whirlpool Oven Cooktop Fan Motor
14	WPW10116349 Whirlpool Nut
15	W10758272 Whirlpool Convection Fan
