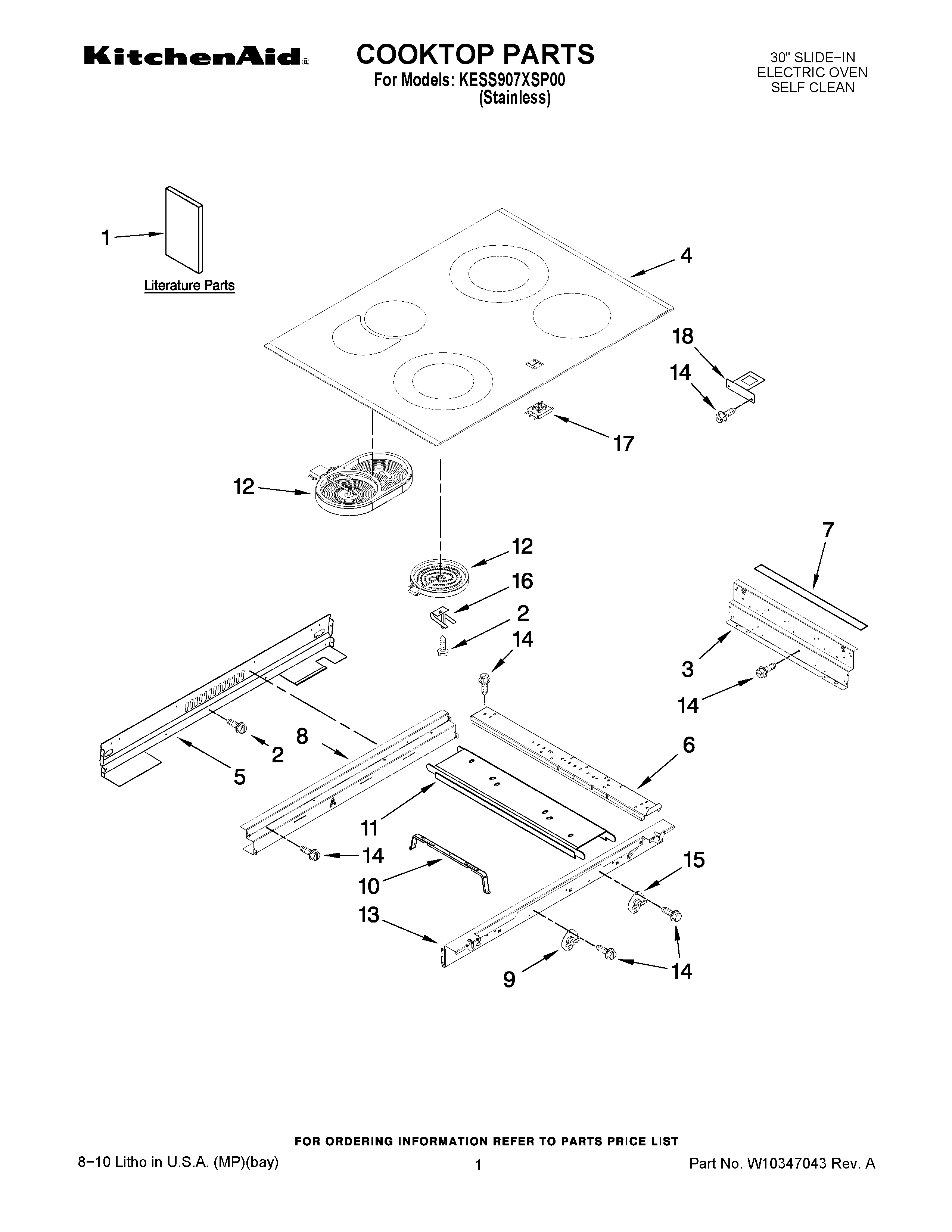

KESS907XSP00 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Easy Set Guide
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIIONS
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Anti-Tip Instruct.
1TECH SHEET
1Safer Cooking Tips (French)
2WP486754 Whirlpool Compactor Screw
3Frame, Cooktop Side
4W10297306 Whirlpool Glass Cooktop Assembly
5Cover, Cktp Rear
6Rail, Element (3)
7Gasket (2)
8Frame, Cooktop Rear
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12W10823692 Whirlpool Dual Radiant Element
12W10823698 Whirlpool Surface Element Right Rear
12ELEMENT, SURFACE (LR/1000W)
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
169759094 Whirlpool Spring
17Light, Indicator (Hot Surface)
18Bracket, Ind. Lamp
