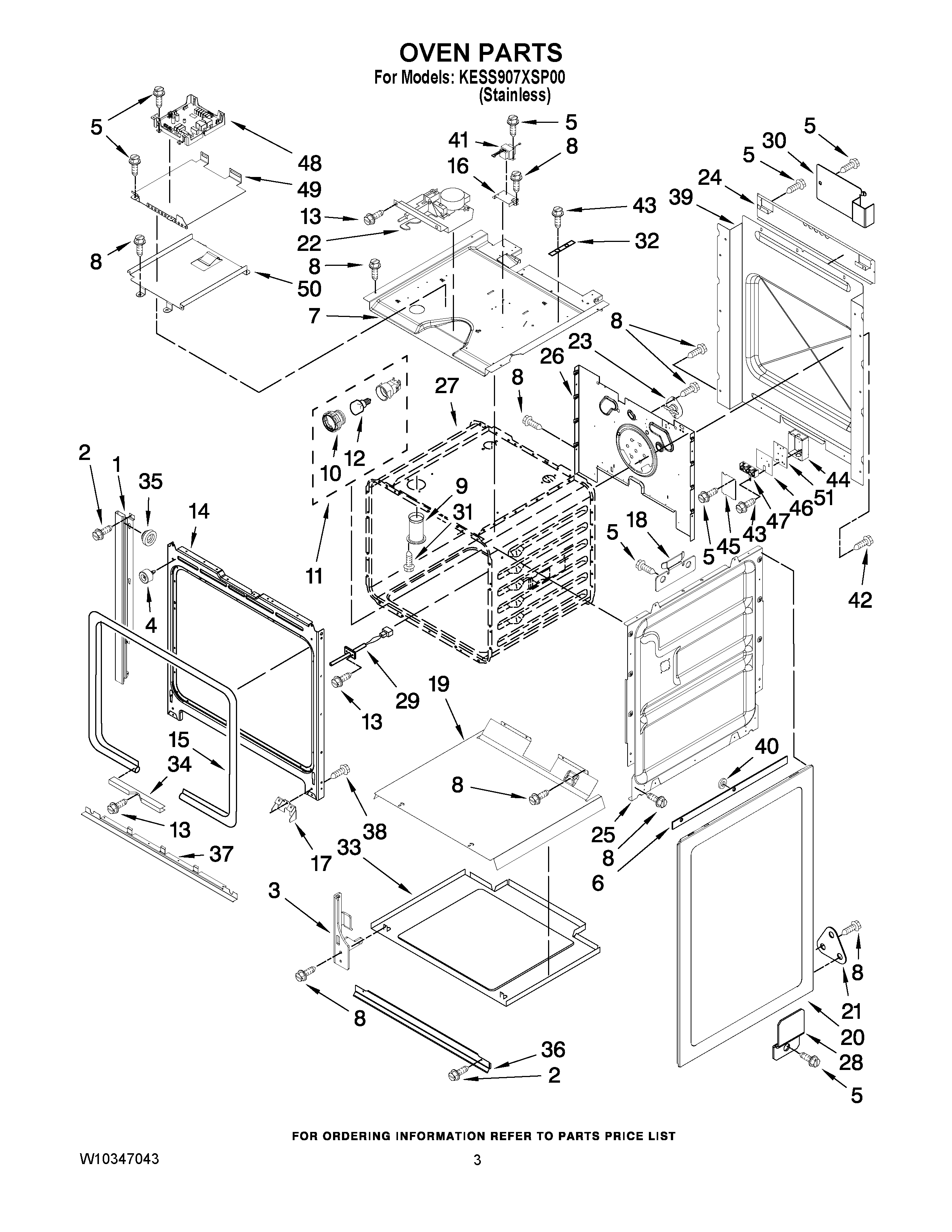

KESS907XSP00 02 – OVEN PARTS

Products

Position	Product
NI	WPL 9756817
NI	WPL 9756470
1	TRIM, SIDE (LEFT STAINLESS)
1	TRIM, SIDE (RIGHT STAINLESS)
2	WP3400832 Whirlpool Screw
3	WP4455605 Whirlpool Left Hand Hinge
3	WP4455606 Whirlpool Right Hand Hinge
4	W10105790 Whirlpool Bumper
5	WP3196557 Whirlpool Screw
6	WPL 9759722
7	Top Chassis
8	WP4449809 Whirlpool Screw
9	W10861715 Whirlpool Vent Tube
10	Lens, Light (2)
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449154 Whirlpool Screw
14	WPW10115831 Whirlpool Front Frame
15	W11675844 Whirlpool Oven Gasket
16	WP9757829 Whirlpool Mounting Bracket
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	BODY, SIDE
21	BRACKET,SIDE PANEL
22	WPW10195934 Whirlpool Door Latch
23	WP9759242 Whirlpool Thermostat
24	Brace, Side Panel
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	CABINET (NOT A SERVICEABLE PART)
28	Clip, Side Panel
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Cover, Rear Standoff
31	SCREW
32	WPL 9759885
33	Base, Chassis
34	WP4448933 Whirlpool Retainer
35	WP4448444 Whirlpool Grommet
36	Vent, Bottom Upper (Stainless)
37	Vent, Bottom Lower (Stainless)
38	WP4449743 Whirlpool Screw
39	WPL 9758583
40	WPL 9760481
41	WPW10111628 Whirlpool Transformer
42	WP7101P246-60 Whirlpool Screw
43	Screw
44	W10115858 Whirlpool Box Terminal
45	Cover, Term Box
46	9759721 Whirlpool Oven Insulator
47	WPW10245259 Whirlpool Terminal Block
48	APPLIANCE, MANAGER
49	W10083460 Whirlpool Slide Assembly
50	Bracket, GOC
51	Insulation
