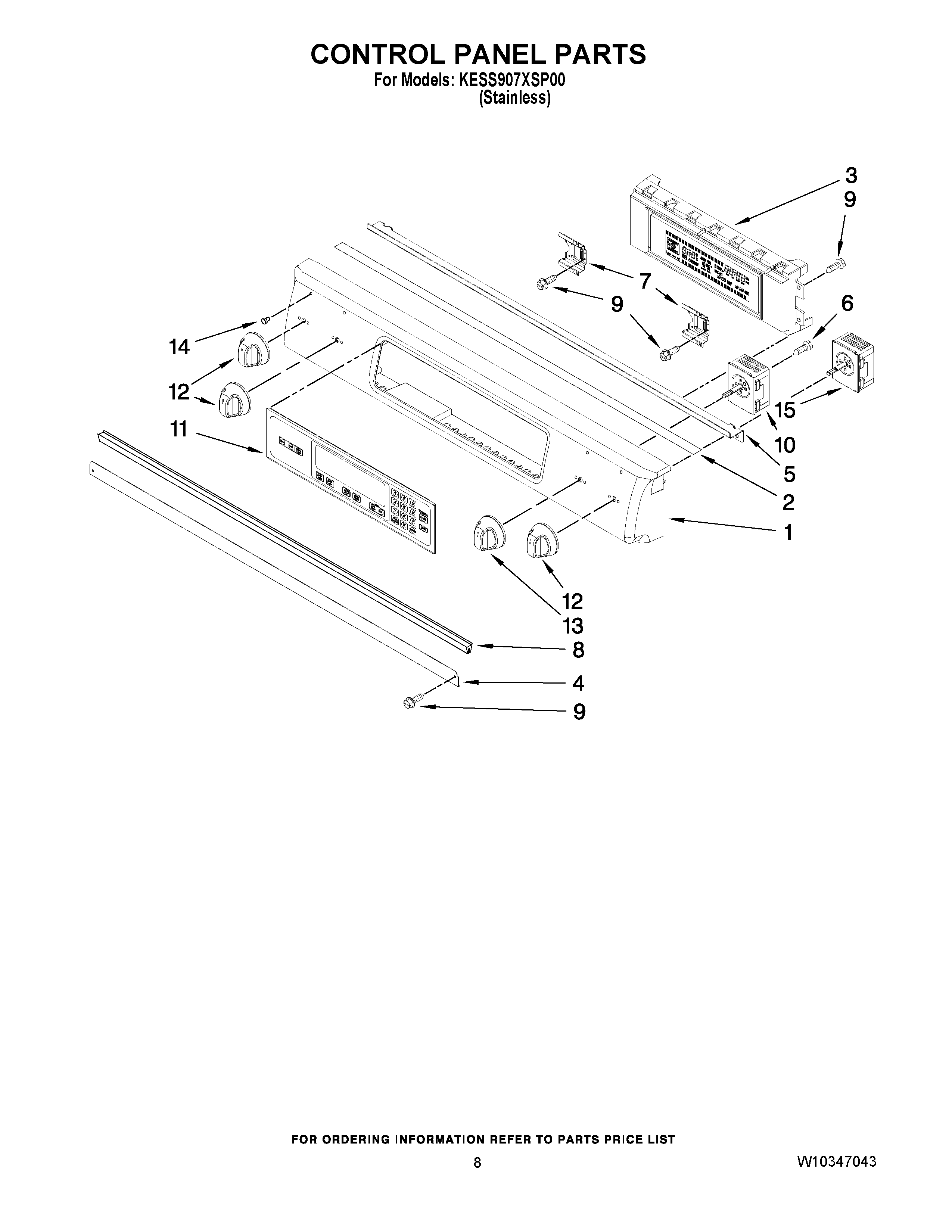

KESS907XSP00 05 – CONTROL PANEL PARTS

KESS907XSP00 05 – CONTROL PANEL PARTS

Written by

in

KESS907XSP00 05 – CONTROL PANEL PARTS

Products

PositionProduct
1CONTROL PANEL (STAINLESS)
2W10110246 Whirlpool Gasket
3Control, Electric
4Shield, Console Vent
5Bracket, Gasket
6W10061760 Whirlpool Screw
7Bracket, Thermostat (2)
8W10116195 Whirlpool Vent Gasket
9WP3196557 Whirlpool Screw
10WP9763761 Whirlpool Infinite Switch
11WP9761566 Whirlpool Membrane Switch
12W10246106 Whirlpool Knob
13W10246107 Whirlpool Knob Assembly
14WP3196068 Whirlpool Light Lens
15WP9763762 Whirlpool Washer Infinite Switch Left Rear Front Right
