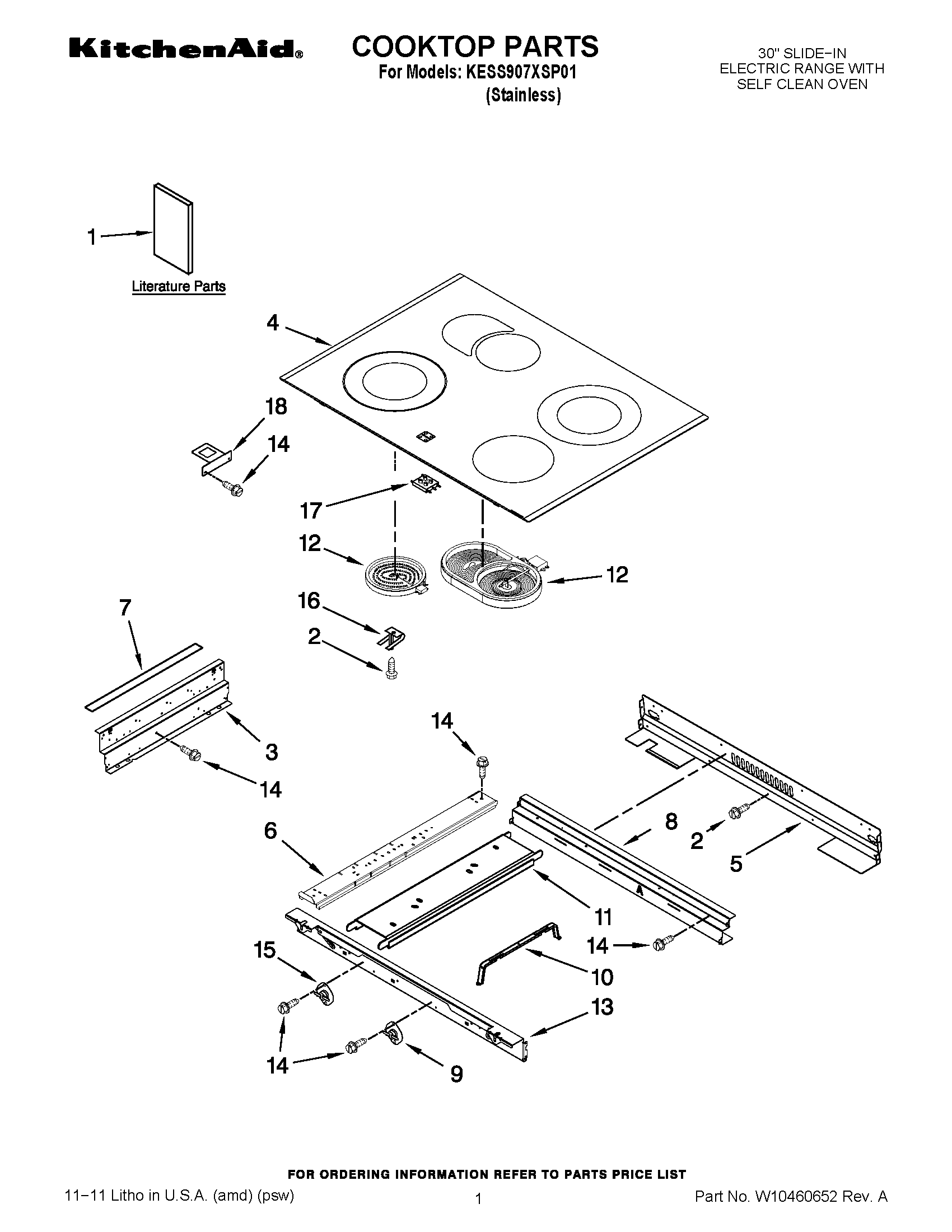

KESS907XSP01 01 – COOKTOP PARTS

Products

Position	Product
1	SAFER COOKING TIPS (ENGLISH
1	Easy Set Guide
1	USE & CARE GUIDE
1	INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1	Anti-Tip Instruct.
1	INSTALLATION INSTRUCTIIONS
1	TECH SHEET
1	Safer Cooking Tips (French)
2	WP486754 Whirlpool Compactor Screw
3	Frame, Cooktop Side
4	W10297306 Whirlpool Glass Cooktop Assembly
5	Cover, Cktp Rear
6	Rail, Element (3)
7	Gasket (2)
8	Frame, Cooktop Rear
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	WP8273993 Whirlpool Surface Element
12	ELMNT-SURF
12	WPW10248257 Whirlpool Surface Element
13	Frame, Cooktop Front
14	WP3196557 Whirlpool Screw
15	Thermostat SPST (205)
16	9759094 Whirlpool Spring
17	Light, Indicator (Hot Surface)
18	Bracket, Ind. Lamp
