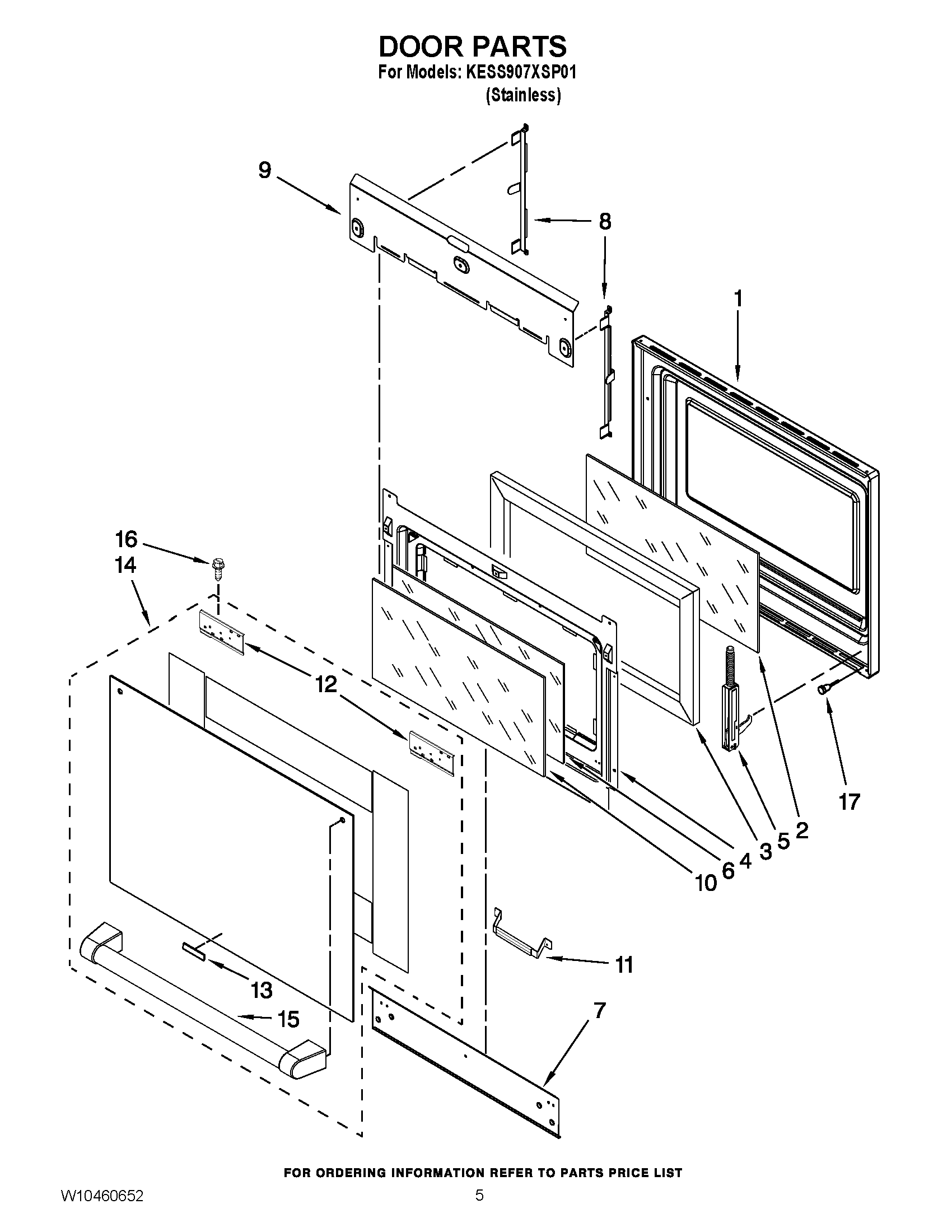

KESS907XSP01 03 – DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	HINGE-DOOR LH/SS DOOR SPRING
5	WP9760579 Whirlpool Right Door Hinge
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	SHIELD, HEAT TOP
10	WP9759225 Whirlpool Inner Door Glass
11	Bracket (3rd Glsss)
12	BRACKET, HANDLE (LEFT)
12	BRACKET, HANDLE (RIGHT)
13	WPW10320959 Whirlpool Dishwasher Nameplate
14	DOOR ASSEMBLY, OUTER
15	W10246102A Whirlpool Range Oven Door Handle
16	SCREW
17	4448520 Whirlpool Oven Bumper
