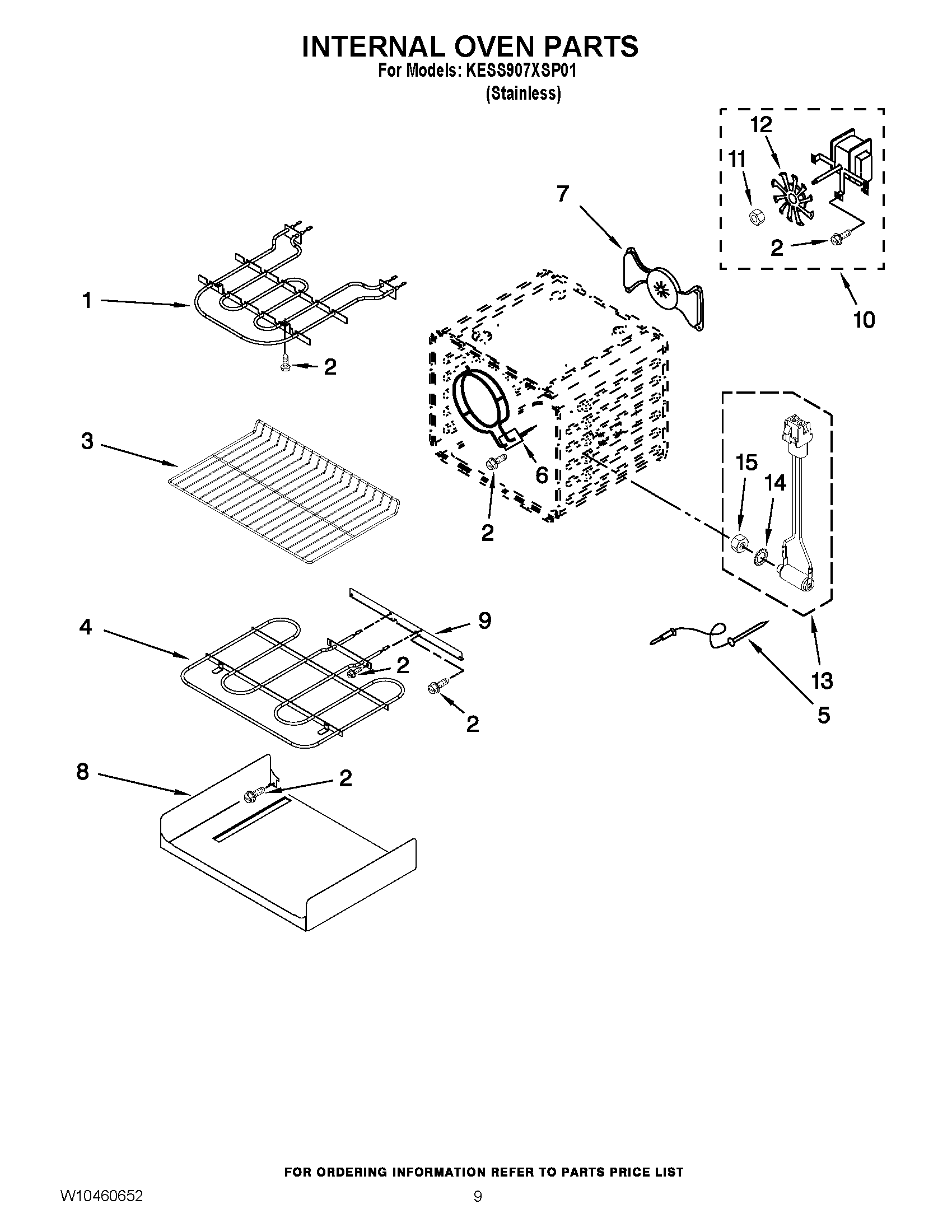

KESS907XSP01 06 – INTERNAL OVEN PARTS

Products

Position	Product
1	ELMNT-BROL
2	WP4449154 Whirlpool Screw
3	WPW10179152 Whirlpool Rack Oven
4	ELMNT-BAKE
5	WP9755542 Whirlpool Oven Meat Probe
6	WP9760769 Whirlpool Element Assembly
7	W10860133 Whirlpool Convection Baffle
8	Tray, Hidden Bake
9	4450039 Whirlpool Oven Access Cover
10	W10794022 Whirlpool Oven Cooktop Fan Motor
11	WPW10116349 Whirlpool Nut
12	W10758272 Whirlpool Convection Fan
13	8186589 Whirlpool Jack Probe
14	WP9755547 Whirlpool Lockwasher
15	WP9755546 Whirlpool Locknut
