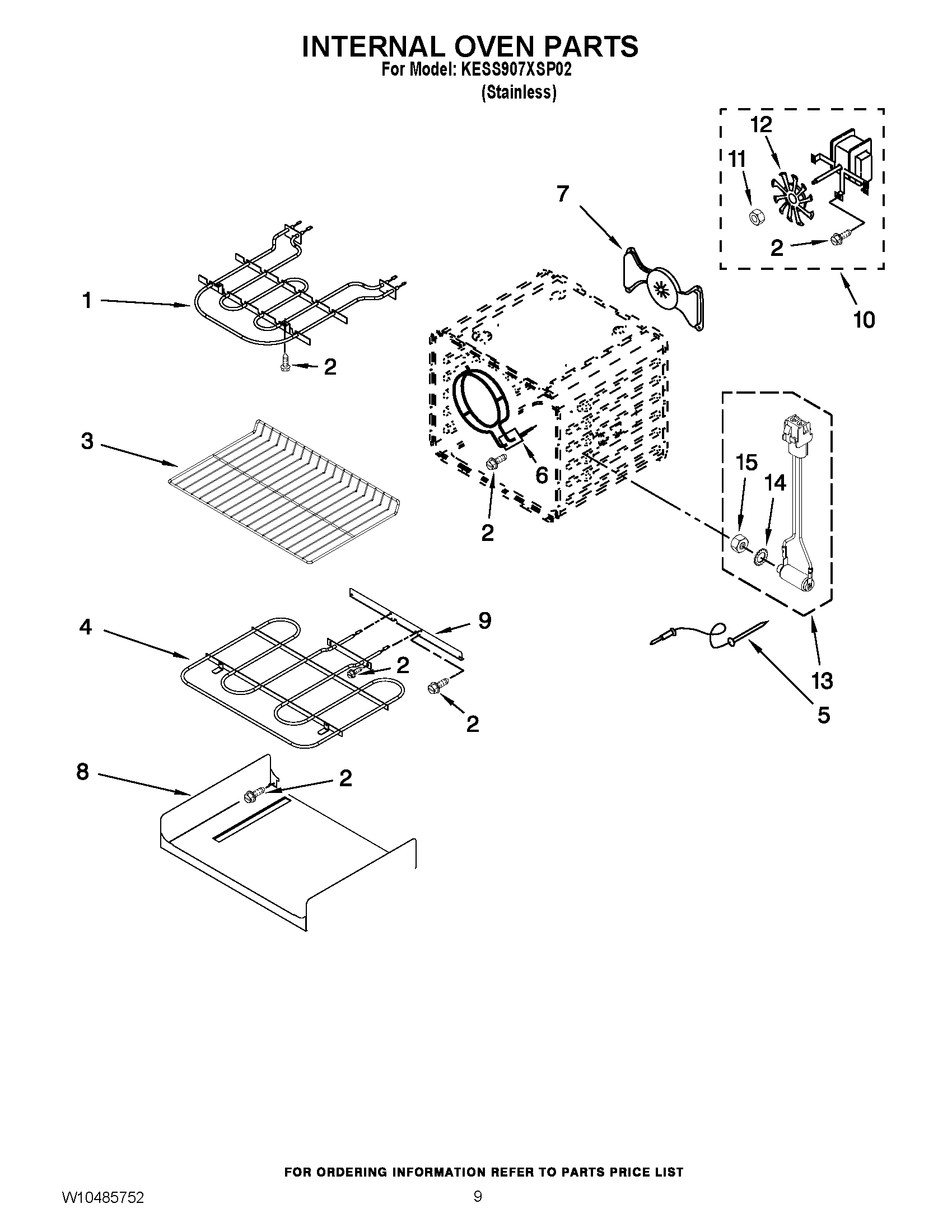

KESS907XSP02 06 – INTERNAL OVEN PARTS

KESS907XSP02 06 – INTERNAL OVEN PARTS

Written by

in

KESS907XSP02 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WP4449154 Whirlpool Screw
3WPW10179152 Whirlpool Rack Oven
4ELMNT-BAKE
5WP9755542 Whirlpool Oven Meat Probe
6WP9760769 Whirlpool Element Assembly
7W10860133 Whirlpool Convection Baffle
8Tray, Hidden Bake
94450039 Whirlpool Oven Access Cover
10W10794022 Whirlpool Oven Cooktop Fan Motor
11WPW10116349 Whirlpool Nut
12W10758272 Whirlpool Convection Fan
138186589 Whirlpool Jack Probe
14WP9755547 Whirlpool Lockwasher
15WP9755546 Whirlpool Locknut
