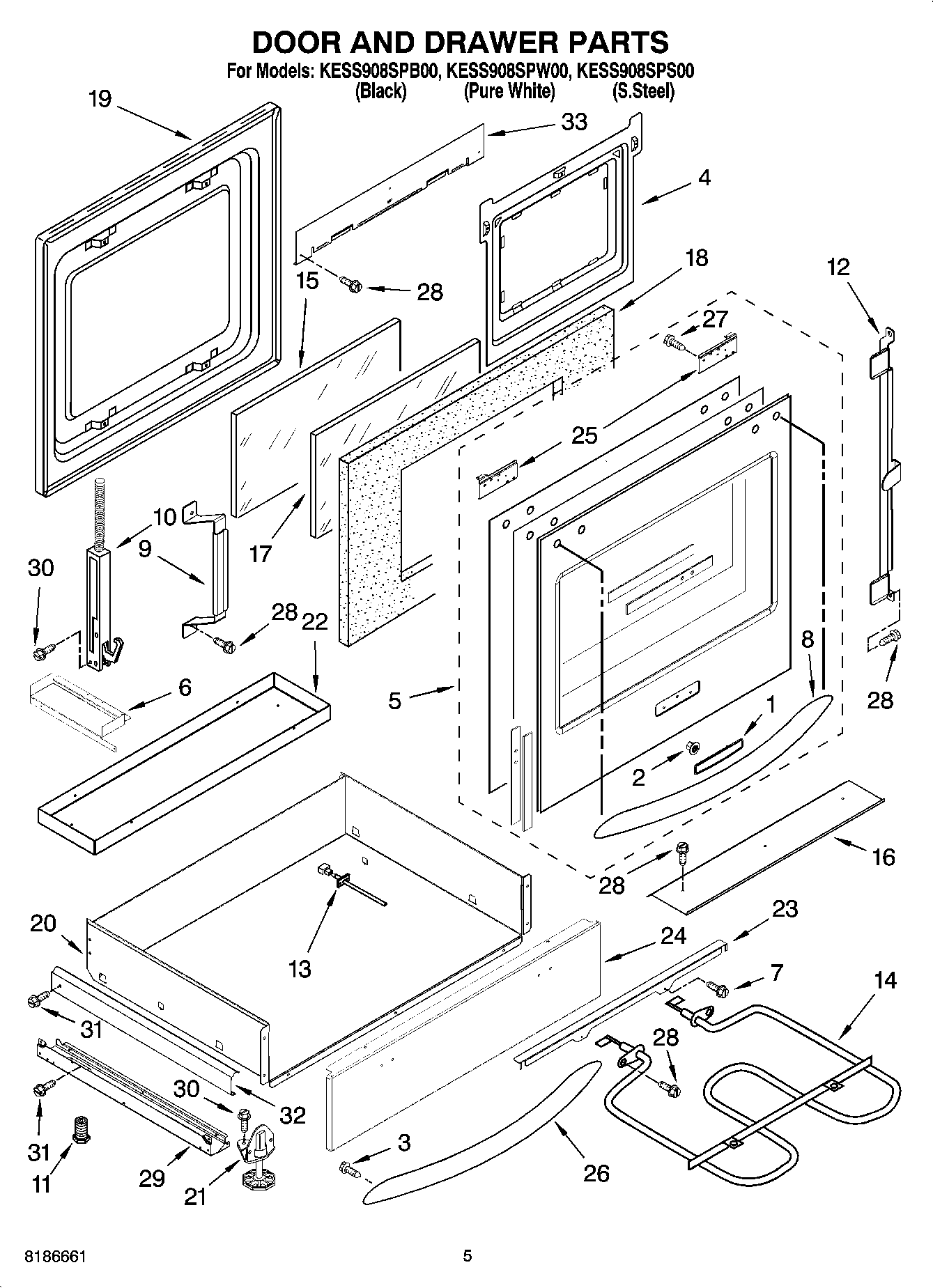

KESS908SPB00 04 – DOOR AND DRAWER PARTSadmin2025-04-26T09:46:21+00:00KESS908SPB00 04 – DOOR AND DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Nameplate (Black) |
| 1 | Nameplate (S.Steel) |
| 1 | Nameplate (White) |
| 2 | WP3400832 Whirlpool Screw |
| 3 | WP3400805 Whirlpool Screw Assembly |
| 4 | WP4457132 Whirlpool Retainer |
| 5 | Glass, Door Front (White) |
| 5 | Glass, Door Front (Black) |
| 5 | W10155557 Whirlpool Glass Door |
| 6 | Cover, Terminal |
| 7 | SCREW |
| 8 | Door Handle |
| 8 | Handle, Door (White) |
| 8 | Handle, Door (Black) |
| 9 | Bracket (3rd Glsss) |
| 10 | HINGE-DOOR LH/SS DOOR SPRING |
| 10 | WP9760579 Whirlpool Right Door Hinge |
| 11 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 12 | WP9759229 Whirlpool Mounting Bracket |
| 13 | WP8274149 Whirlpool Sensor Assembly |
| 14 | 9760775 Whirlpool Oven Warm Element |
| 15 | WP9757706 Whirlpool Door Inner Glass |
| 16 | 4457114 Whirlpool Oven Heat Shield |
| 17 | WP9759225 Whirlpool Inner Door Glass |
| 18 | WP4451722 Whirlpool Door Insulation Assembly |
| 19 | WP9759413 Whirlpool Door Liner |
| 20 | Drawer Assy |
| 21 | WP3196037 Whirlpool Leveling Foot |
| 22 | Panel, Drawer |
| 23 | Support, Element |
| 24 | Front, Drawer (Black) |
| 24 | Front, Drawer (S.Steel) |
| 24 | Front, Drawer (White) |
| 25 | Bracket, Handle (Left) |
| 25 | Bracket, Handle (Right) |
| 26 | Handle, Drawer (White) |
| 26 | Handle, Drawer (Stainless) |
| 26 | Handle, Drawer (Black) |
| 27 | WP8533988 Whirlpool Screw Fastener |
| 28 | WP4449809 Whirlpool Screw |
| 29 | Side, Base (L.Side) |
| 29 | Side, Base (R.Side) |
| 30 | WP4449743 Whirlpool Screw |
| 31 | WP3196557 Whirlpool Screw |
| 32 | WPW10155632 Whirlpool Slide Drawer Assembly |
| 32 | WPW10155633 Whirlpool Drawer Slide Rail |
| 33 | Shield, Heat |
