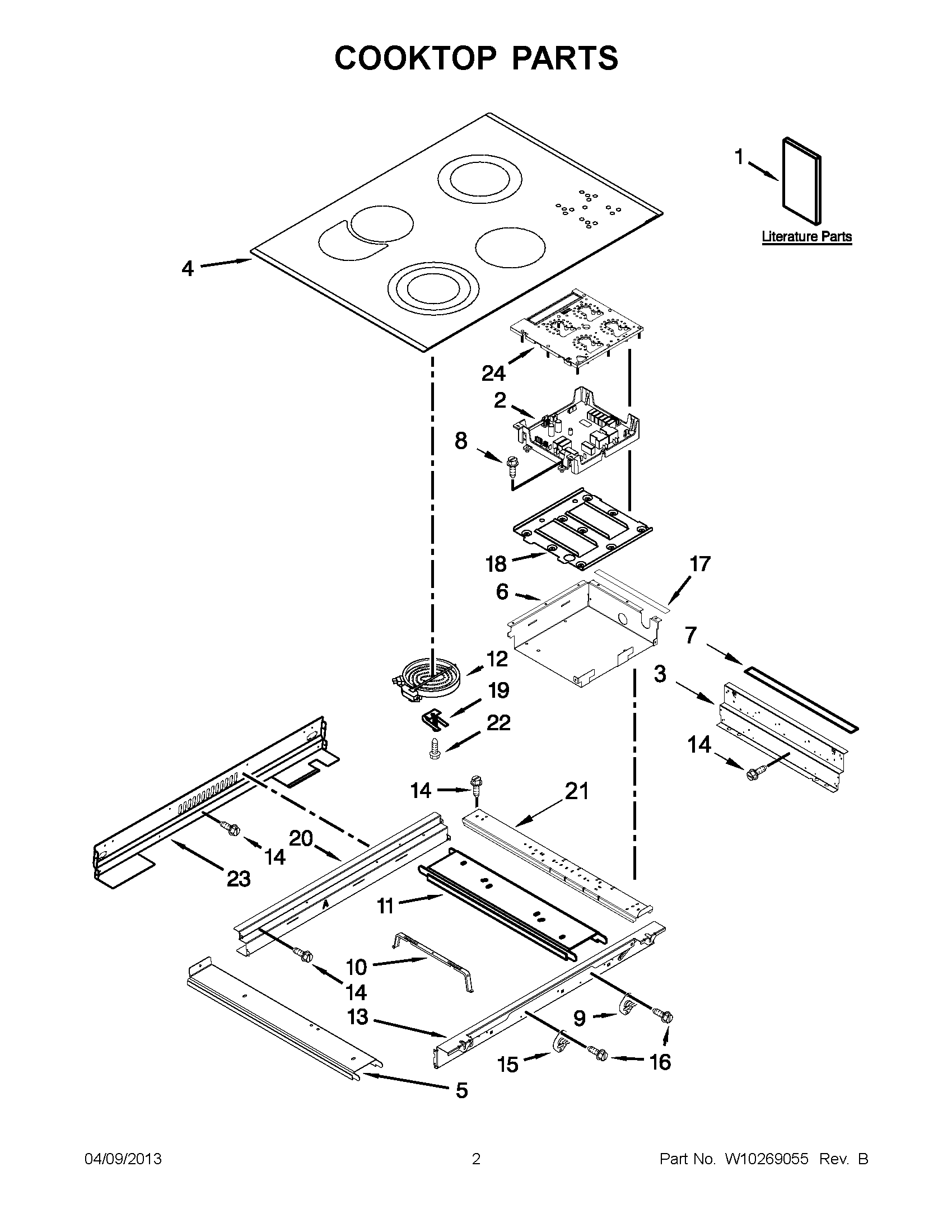

KESS908SPB04 01 – COOKTOP PARTS

Products

Position	Product
1	Use & Care Guide
1	SAFER COOKING TIPS (ENGLISH
1	Safer Cooking Tips (French)
1	Tech Sheet
1	Anti-Tip Instruct.
1	Easy Set Guide
1	INSTALLATION INSTRUCTIIONS
2	APPLIANCE, MANAGER
3	Frame, Cooktop Side
4	Cooktop (White)
4	Cooktop (Black/Stainless)
5	Rail, Element (Side (2))
6	Box, Touch Control
7	Gasket (2)
8	WP4449745 Whirlpool Screw
9	WP9759944 Whirlpool Thermostat
10	WP9756821 Whirlpool Support
11	Rail, Element (2) (Center (1))
12	Element, Surface (RR)
12	Element, Surface (LF)
12	W10203295 Whirlpool Surface Element
12	WP4453907 Whirlpool Surface Element
13	Frame, Cooktop Front
14	WP3196557 Whirlpool Screw
15	Thermostat SPST (205)
16	W10491985 Whirlpool Screw
17	Seal, Heat
18	Support, Module
19	9759094 Whirlpool Spring
20	Frame, Cooktop Rear
21	Rail, Element (3)
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
24	WP9757063 Whirlpool Electronic Control Board
