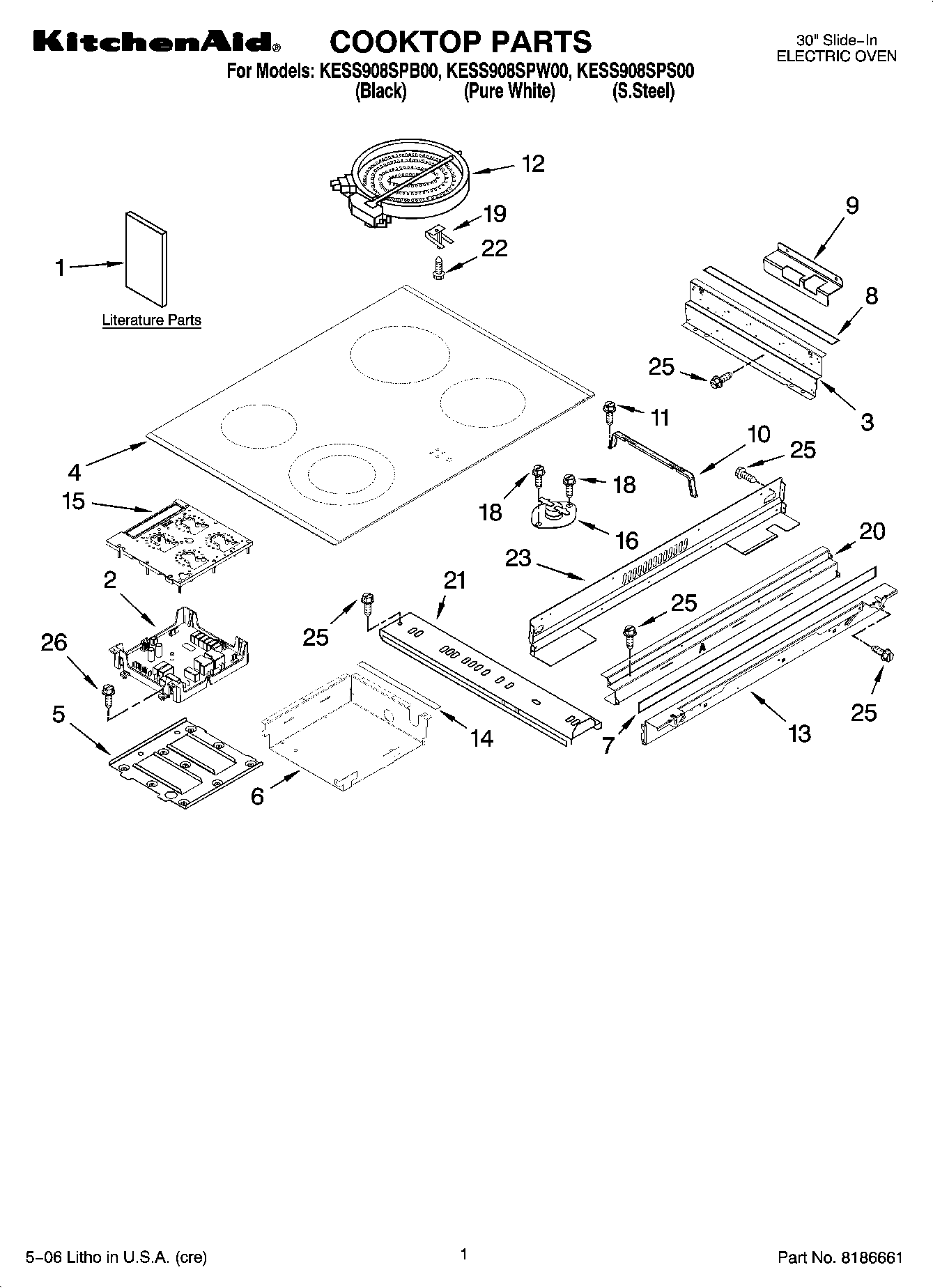

KESS908SPS00 01 – COOKTOP PARTS

Products

Position	Product
1	Tech Sheet
1	Safe Cooking Tips
1	Anti-Tip Instruct.
1	Safe Cooking Tips (French)
1	Use & Care Guide
1	Installation Instructions
1	Easy Set Guide
2	Central, Appliance
3	Frame, Cooktop Side
4	Cooktop (White)
4	Cooktop (Black)
5	Support, Module
6	Box, Touch Control
7	Gasket
8	Gasket (2)
9	Support (R.Hand)
9	Support (L.Hand)
10	WP9756821 Whirlpool Support
11	WP4449809 Whirlpool Screw
12	Element, Surface (LF)
12	WP4453907 Whirlpool Surface Element
12	Element, Surface (RR)
12	WP8285232 Whirlpool Surface Element Assembly
13	Frame, Cooktop Front
14	Seal, Heat
15	WP9757063 Whirlpool Electronic Control Board
16	WP9759944 Whirlpool Thermostat
18	W10491985 Whirlpool Screw
19	9759094 Whirlpool Spring
20	Frame, Cooktop Rear
21	Rail, Element (2) (Center (1))
21	Rail, Element (Side (2))
22	WP486754 Whirlpool Compactor Screw
23	Cover, Cktp Rear
25	WP3196557 Whirlpool Screw
26	WP4449745 Whirlpool Screw
