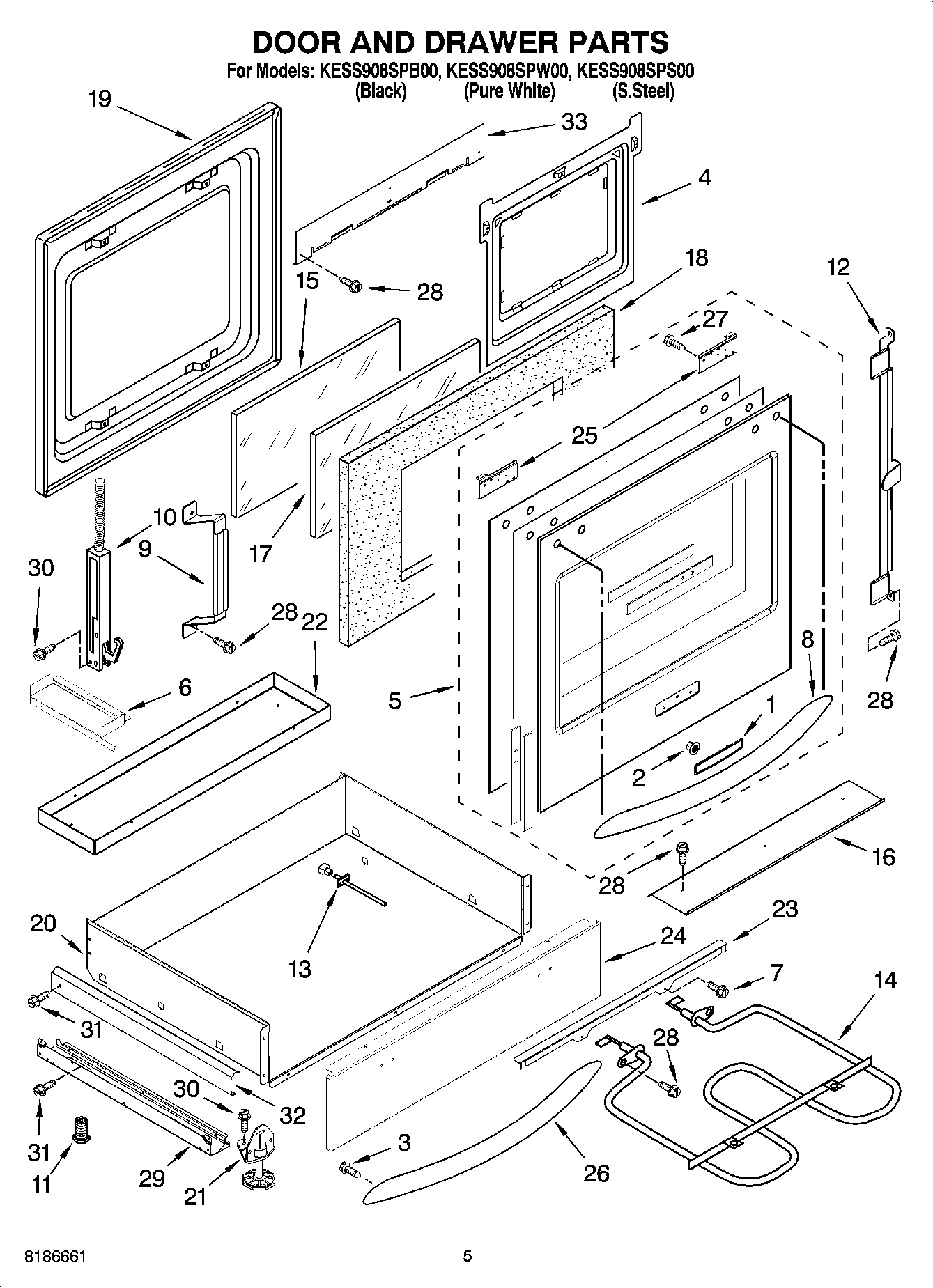

KESS908SPS00 04 – DOOR AND DRAWER PARTS

KESS908SPS00 04 – DOOR AND DRAWER PARTS

Written by

in

KESS908SPS00 04 – DOOR AND DRAWER PARTS

Products

PositionProduct
1Nameplate (Black)
1Nameplate (S.Steel)
1Nameplate (White)
2WP3400832 Whirlpool Screw
3WP3400805 Whirlpool Screw Assembly
4WP4457132 Whirlpool Retainer
5Glass, Door Front (White)
5Glass, Door Front (Black)
5W10155557 Whirlpool Glass Door
6Cover, Terminal
7SCREW
8Door Handle
8Handle, Door (White)
8Handle, Door (Black)
9Bracket (3rd Glsss)
10HINGE-DOOR LH/SS DOOR SPRING
10WP9760579 Whirlpool Right Door Hinge
11WPW10058460 Whirlpool Appliance Levelling Leg
12WP9759229 Whirlpool Mounting Bracket
13WP8274149 Whirlpool Sensor Assembly
149760775 Whirlpool Oven Warm Element
15WP9757706 Whirlpool Door Inner Glass
164457114 Whirlpool Oven Heat Shield
17WP9759225 Whirlpool Inner Door Glass
18WP4451722 Whirlpool Door Insulation Assembly
19WP9759413 Whirlpool Door Liner
20Drawer Assy
21WP3196037 Whirlpool Leveling Foot
22Panel, Drawer
23Support, Element
24Front, Drawer (Black)
24Front, Drawer (S.Steel)
24Front, Drawer (White)
25Bracket, Handle (Left)
25Bracket, Handle (Right)
26Handle, Drawer (White)
26Handle, Drawer (Stainless)
26Handle, Drawer (Black)
27WP8533988 Whirlpool Screw Fastener
28WP4449809 Whirlpool Screw
29Side, Base (L.Side)
29Side, Base (R.Side)
30WP4449743 Whirlpool Screw
31WP3196557 Whirlpool Screw
32WPW10155632 Whirlpool Slide Drawer Assembly
32WPW10155633 Whirlpool Drawer Slide Rail
33Shield, Heat
