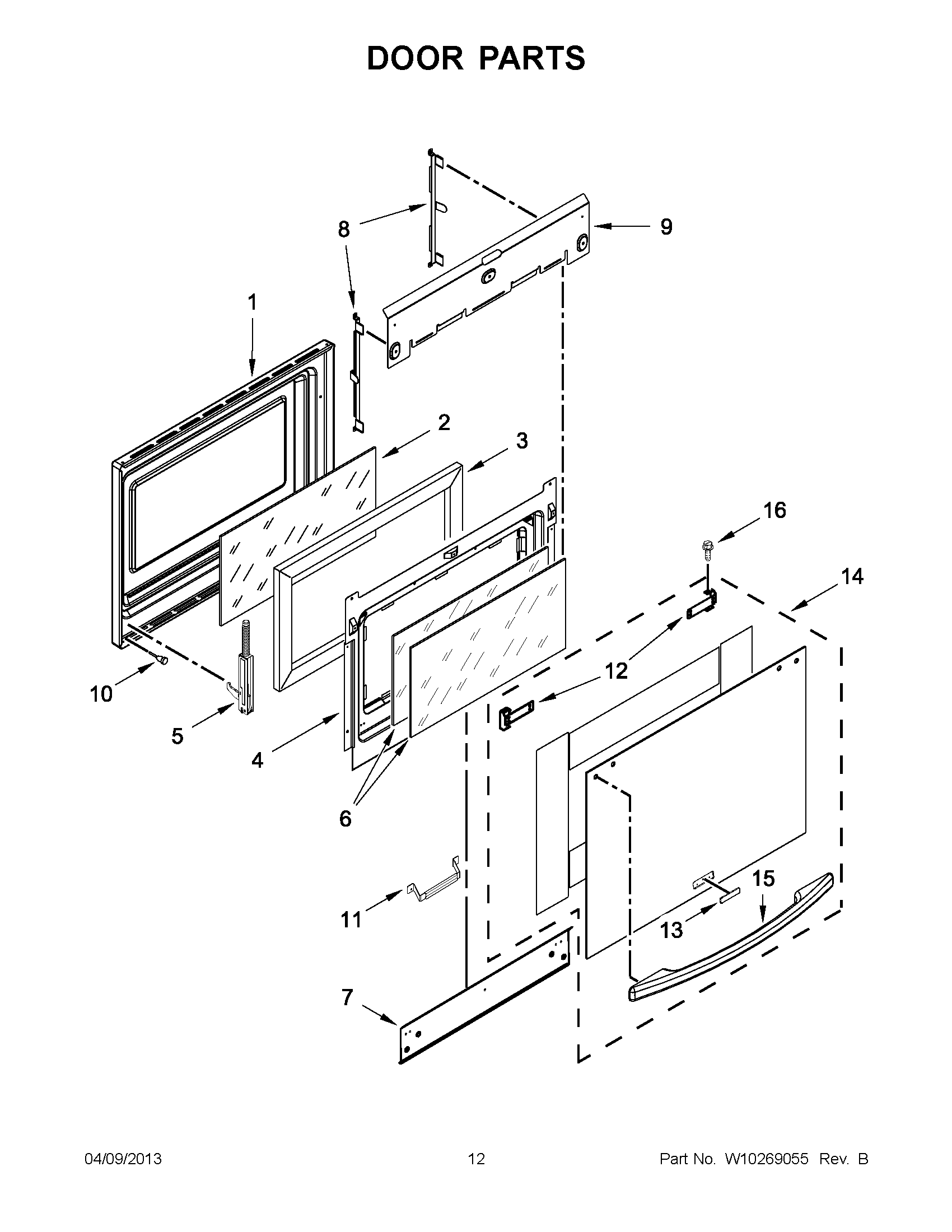

KESS908SPS04 06 – DOOR PARTS

Products

Position	Product
1	PANEL, DOOR
2	WP9757706 Whirlpool Door Inner Glass
3	WP4451722 Whirlpool Door Insulation Assembly
4	WP4457132 Whirlpool Retainer
5	WP9760579 Whirlpool Right Door Hinge
5	HINGE-DOOR LH/SS DOOR SPRING
6	WP9759225 Whirlpool Inner Door Glass
7	4457114 Whirlpool Oven Heat Shield
8	WP9759229 Whirlpool Mounting Bracket
9	SHIELD, HEAT TOP
10	4448520 Whirlpool Oven Bumper
11	Bracket (3rd Glsss)
12	Bracket, Handle (Left)
12	Bracket, Handle (Right)
13	Badge (Stainless)
13	Badge (White)
13	Badge (Black)
14	Assembly, Door Kit (Black)
14	Assembly, Door Kit (White)
14	W10155557 Whirlpool Glass Door
15	Door Handle
15	Handle, Door (Black)
15	Handle, Door (White)
16	WPW10132940 Whirlpool Dishwasher Screw
