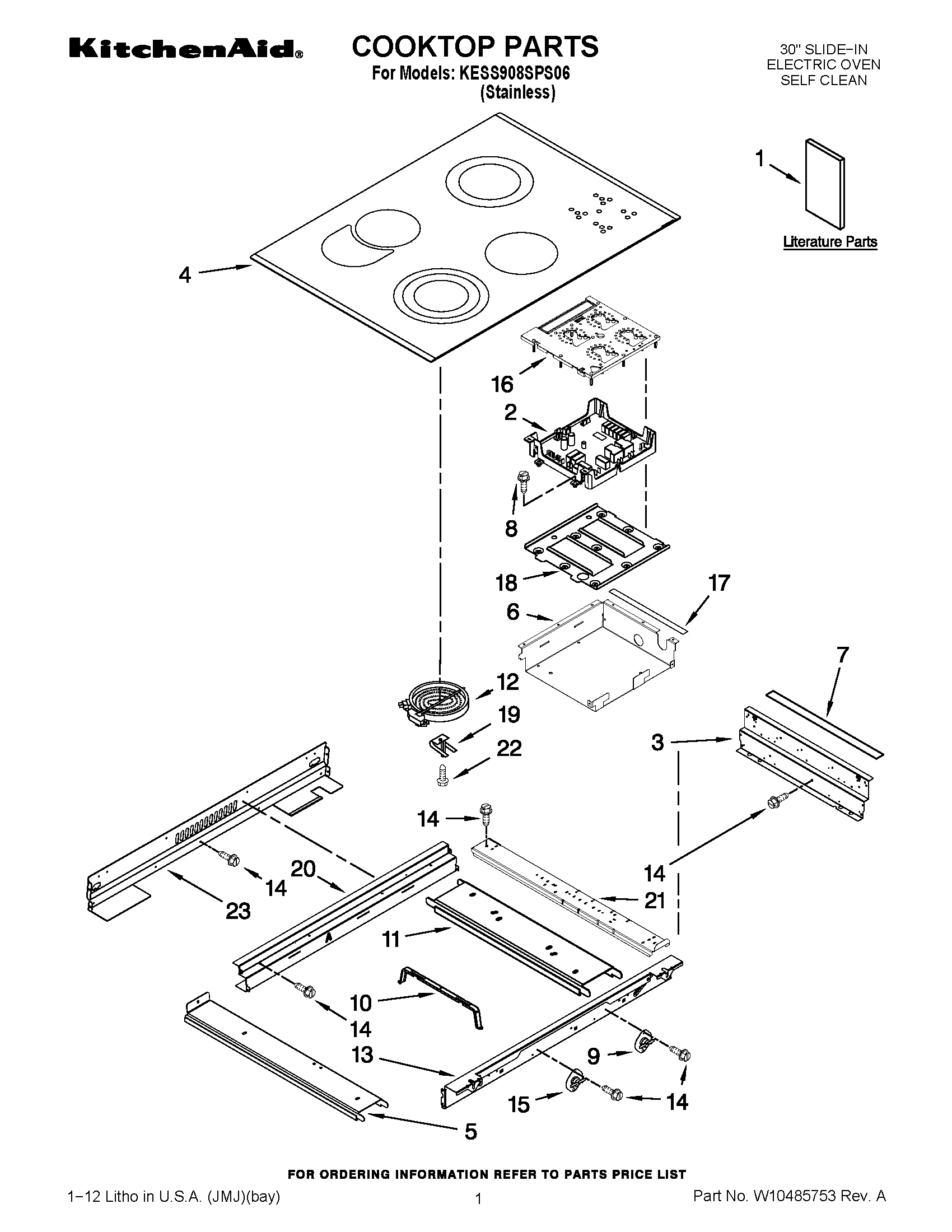

KESS908SPS06 01 – COOKTOP PARTS

KESS908SPS06 01 – COOKTOP PARTS

Written by

in

KESS908SPS06 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1INSTALLATION INSTRUCTIIONS
1Easy Set Guide
1USE & CARE GUIDE
1Tech Sheet
1INSTALLATION INSTRUCTIONS (BI-LINGUAL)
1Safer Cooking Tips (French)
1W11447673 Whirlpool Range Tip Anchor
2APPLIANCE, MANAGER
3Frame, Cooktop Side
4Cooktop (Black/Stainless)
5Rail, Element (Side (2))
6Box, Touch Control
7Gasket (2)
8WP4449745 Whirlpool Screw
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12WPW10248257 Whirlpool Surface Element
12WP8523045 Whirlpool Range Left Rear / Right Front Surface Element 1500 W
12WPW10245533 Whirlpool Surface Element
12WPW10248260 Whirlpool Surface Element
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16WP9757063 Whirlpool Electronic Control Board
17Seal, Heat
18Support, Module
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
