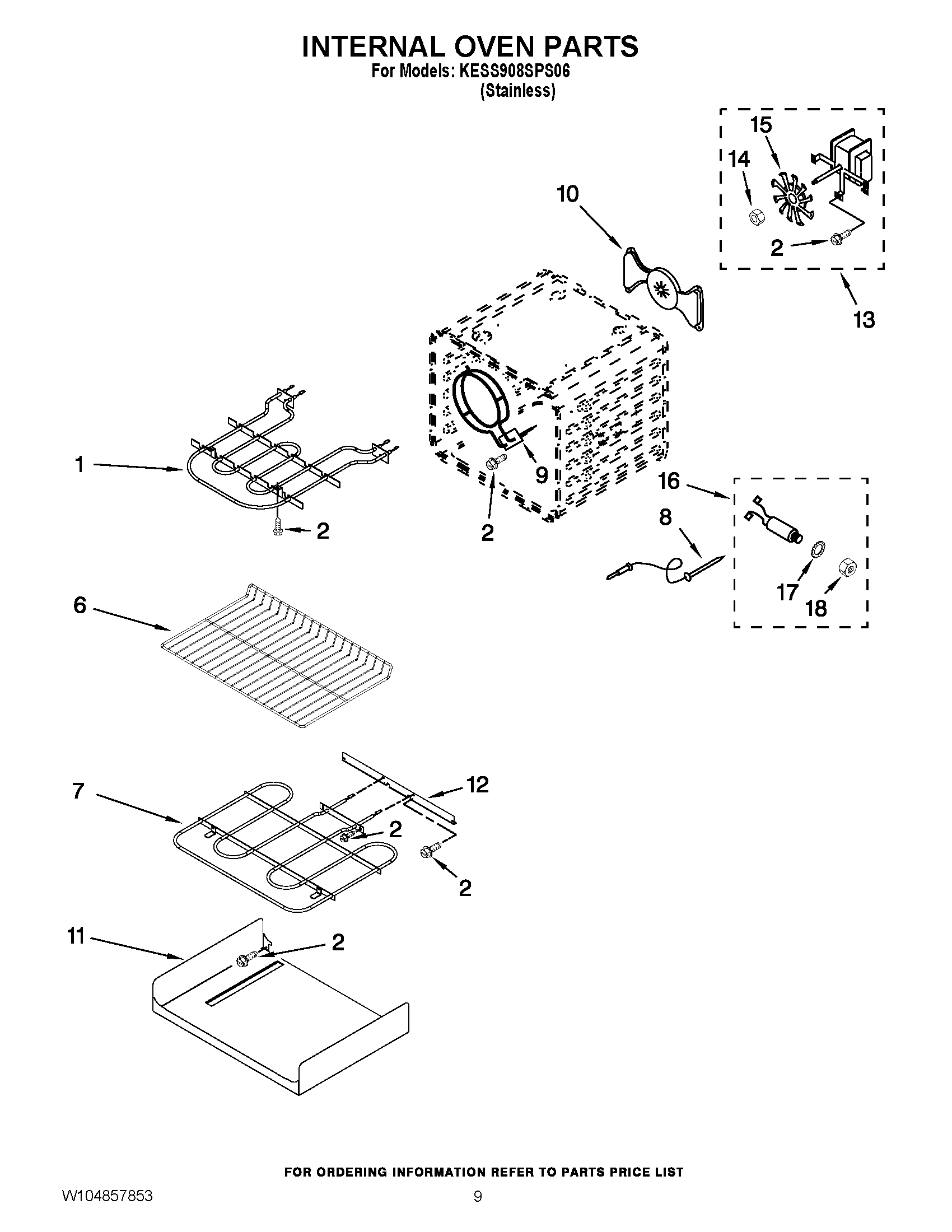

KESS908SPS06 06 – INTERNAL OVEN PARTS

KESS908SPS06 06 – INTERNAL OVEN PARTS

Written by

in

KESS908SPS06 06 – INTERNAL OVEN PARTS

Products

PositionProduct
1ELMNT-BROL
2WP4449154 Whirlpool Screw
6WPW10179152 Whirlpool Rack Oven
7ELMNT-BAKE
8WP9755542 Whirlpool Oven Meat Probe
9WP9760769 Whirlpool Element Assembly
10W10860133 Whirlpool Convection Baffle
11Tray, Hidden Bake
124450039 Whirlpool Oven Access Cover
13W10794022 Whirlpool Oven Cooktop Fan Motor
14WPW10116349 Whirlpool Nut
15W10758272 Whirlpool Convection Fan
168186589 Whirlpool Jack Probe
17WP9755547 Whirlpool Lockwasher
18WP9755546 Whirlpool Locknut
