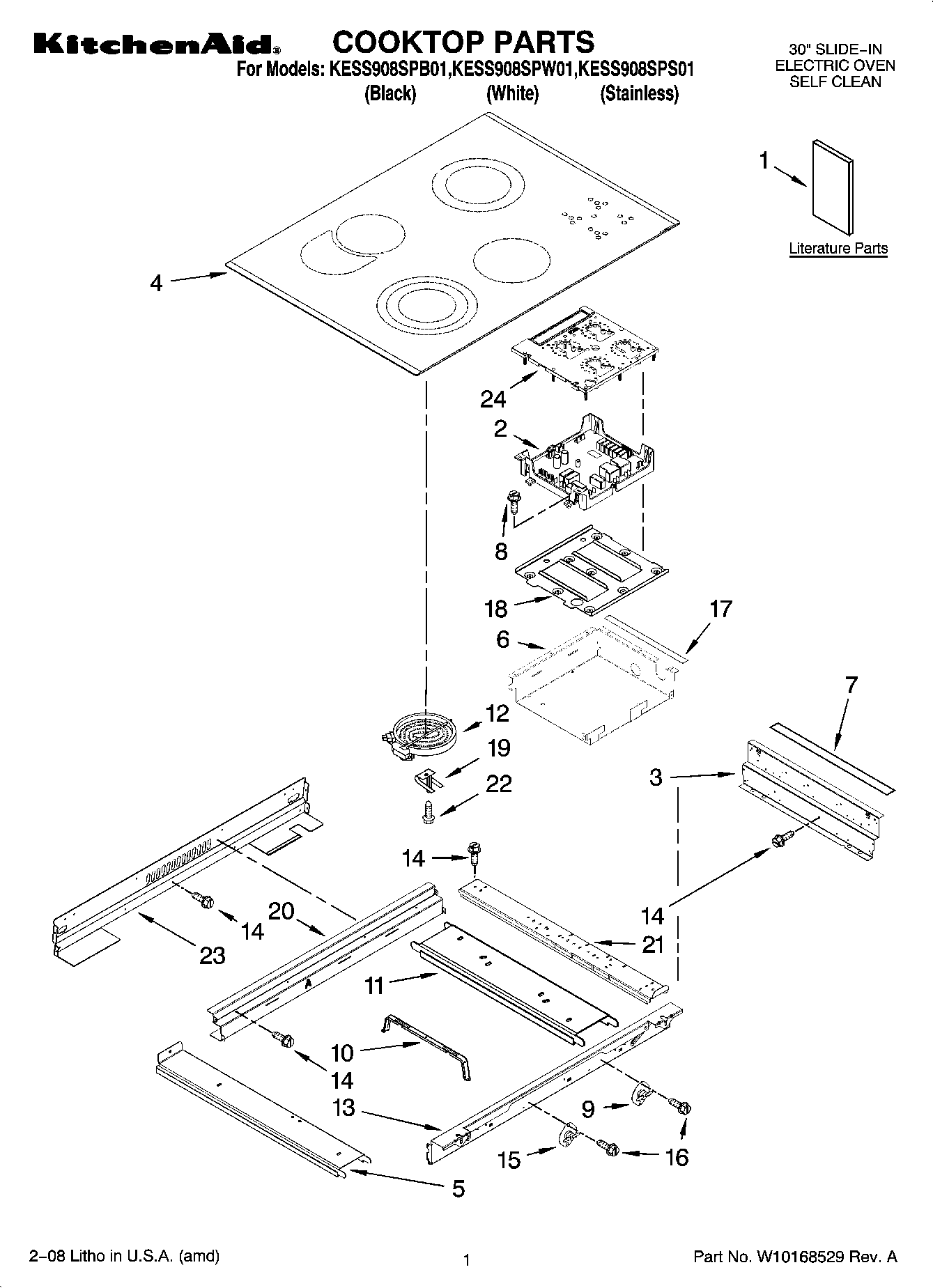

KESS908SPW01 01 – COOKTOP PARTS

KESS908SPW01 01 – COOKTOP PARTS

Written by

in

KESS908SPW01 01 – COOKTOP PARTS

Products

PositionProduct
1Use & Care Guide
1Tech Sheet
1INSTALLATION INSTRUCTIIONS
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Safe Cooking Tips
1Easy Set Guide
2Central, Appliance
3Frame, Cooktop Side
4Cooktop (White)
4Cooktop (Black/Stainless)
5Rail, Element (Side (2))
6Box, Touch Control
7Gasket (2)
8WP4449745 Whirlpool Screw
9WP9759944 Whirlpool Thermostat
10WP9756821 Whirlpool Support
11Rail, Element (2) (Center (1))
12WP8285232 Whirlpool Surface Element Assembly
12Element, Surface (LF)
12Element, Surface (RR)
12WP4453907 Whirlpool Surface Element
13Frame, Cooktop Front
14WP3196557 Whirlpool Screw
15Thermostat SPST (205)
16W10491985 Whirlpool Screw
17Seal, Heat
18Support, Module
199759094 Whirlpool Spring
20Frame, Cooktop Rear
21Rail, Element (3)
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
24WP9757063 Whirlpool Electronic Control Board
