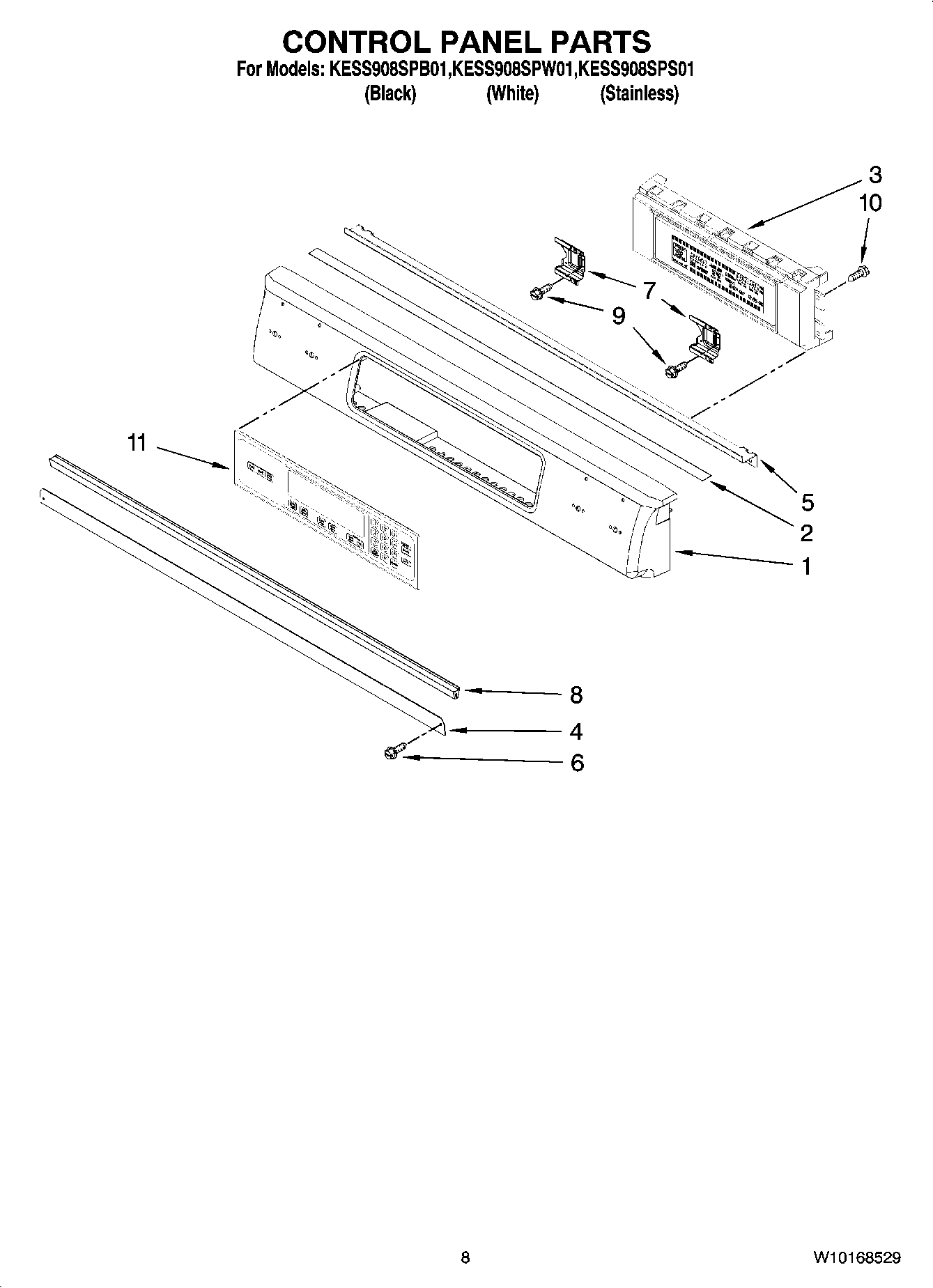

KESS908SPW01 05 – CONTROL PANEL PARTS

Products

Position	Product
1	Control Panel (Stainless)
1	Control Panel (White)
1	Control Panel (Black)
2	W10110246 Whirlpool Gasket
3	Control, Interface
4	Shield, Console Vent
5	Bracket, Gasket
6	W10491985 Whirlpool Screw
7	Bracket, Thermostat (2)
8	W10116195 Whirlpool Vent Gasket
9	WP3196557 Whirlpool Screw
10	Screw
11	WP9761566 Whirlpool Membrane Switch
