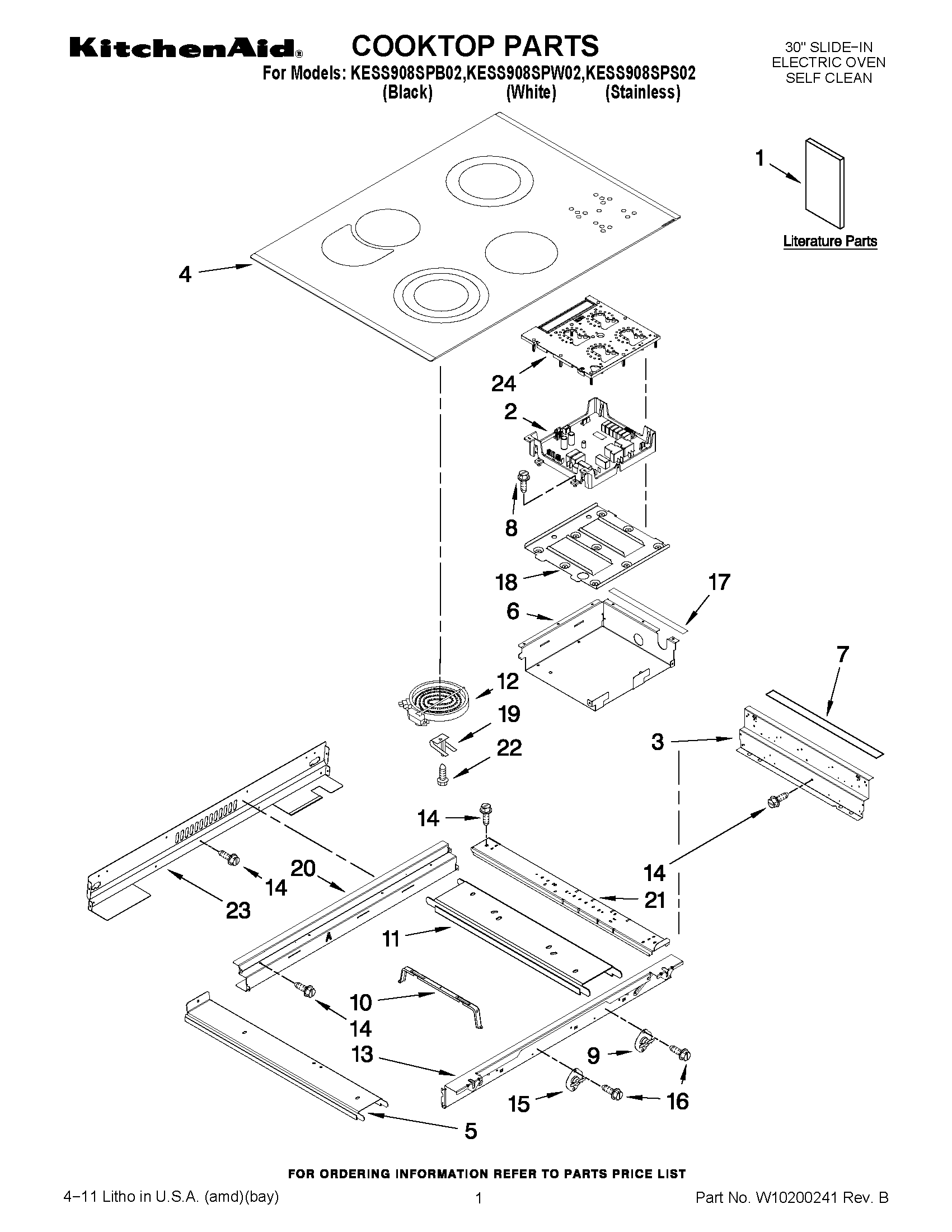

KESS908SPW02 01 – COOKTOP PARTSadmin2025-04-26T09:46:25+00:00KESS908SPW02 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | Anti-Tip Instruct. |
| 1 | SAFER COOKING TIPS (ENGLISH |
| 1 | Safer Cooking Tips (French) |
| 1 | Use & Care Guide |
| 1 | Tech Sheet |
| 1 | Easy Set Guide |
| 1 | INSTALLATION INSTRUCTIIONS |
| 2 | Central, Appliance |
| 3 | Frame, Cooktop Side |
| 4 | Cooktop (Black/Stainless) |
| 4 | Cooktop (White) |
| 5 | Rail, Element (Side (2)) |
| 6 | Box, Touch Control |
| 7 | Gasket (2) |
| 8 | WP4449745 Whirlpool Screw |
| 9 | WP9759944 Whirlpool Thermostat |
| 10 | WP9756821 Whirlpool Support |
| 11 | Rail, Element (2) (Center (1)) |
| 12 | Element, Surface (LF) |
| 12 | WP8285232 Whirlpool Surface Element Assembly |
| 12 | WP4453907 Whirlpool Surface Element |
| 12 | Element, Surface (RR) |
| 13 | Frame, Cooktop Front |
| 14 | WP3196557 Whirlpool Screw |
| 15 | Thermostat SPST (205) |
| 16 | W10491985 Whirlpool Screw |
| 17 | Seal, Heat |
| 18 | Support, Module |
| 19 | 9759094 Whirlpool Spring |
| 20 | Frame, Cooktop Rear |
| 21 | Rail, Element (3) |
| 22 | WP486754 Whirlpool Compactor Screw |
| 23 | Cover, Cktp Rear |
| 24 | WP9757063 Whirlpool Electronic Control Board |
