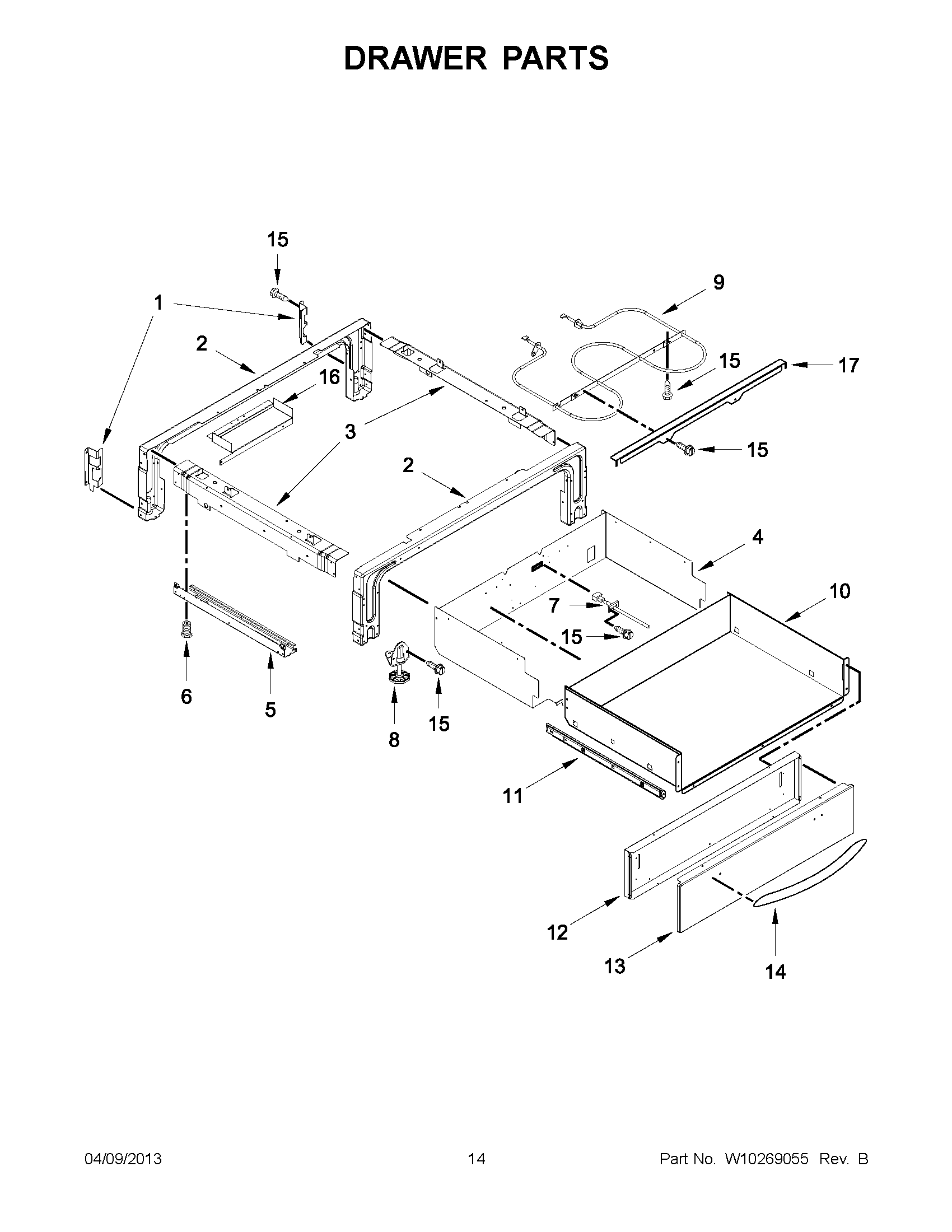

KESS908SPW04 07 – DRAWER PARTS

KESS908SPW04 07 – DRAWER PARTS

Written by

in

KESS908SPW04 07 – DRAWER PARTS

Products

PositionProduct
1Support (R.Hand)
1Support (L.Hand)
2Support, Front & Rear
3Brace, Drawer (Left)
3Brace, Drawer (Right)
4Enclosure, Warming Drawer
5Side, Base (R.Side)
5Side, Base (L.Side)
6WPW10058460 Whirlpool Appliance Levelling Leg
7WP8274149 Whirlpool Sensor Assembly
8WP3196037 Whirlpool Leveling Foot
99760775 Whirlpool Oven Warm Element
10DRAWER
11WPW10155633 Whirlpool Drawer Slide Rail
11WPW10155632 Whirlpool Slide Drawer Assembly
12Panel, Drawer
13Front, Drawer (Black)
13Front, Drawer (White)
13Front, Drawer (Stainless)
14Handle, Drawer (White)
14Handle, Drawer (Stainless)
14Handle, Drawer (Black)
15WP3196557 Whirlpool Screw
16Cover, Terminal
17Support, Element
