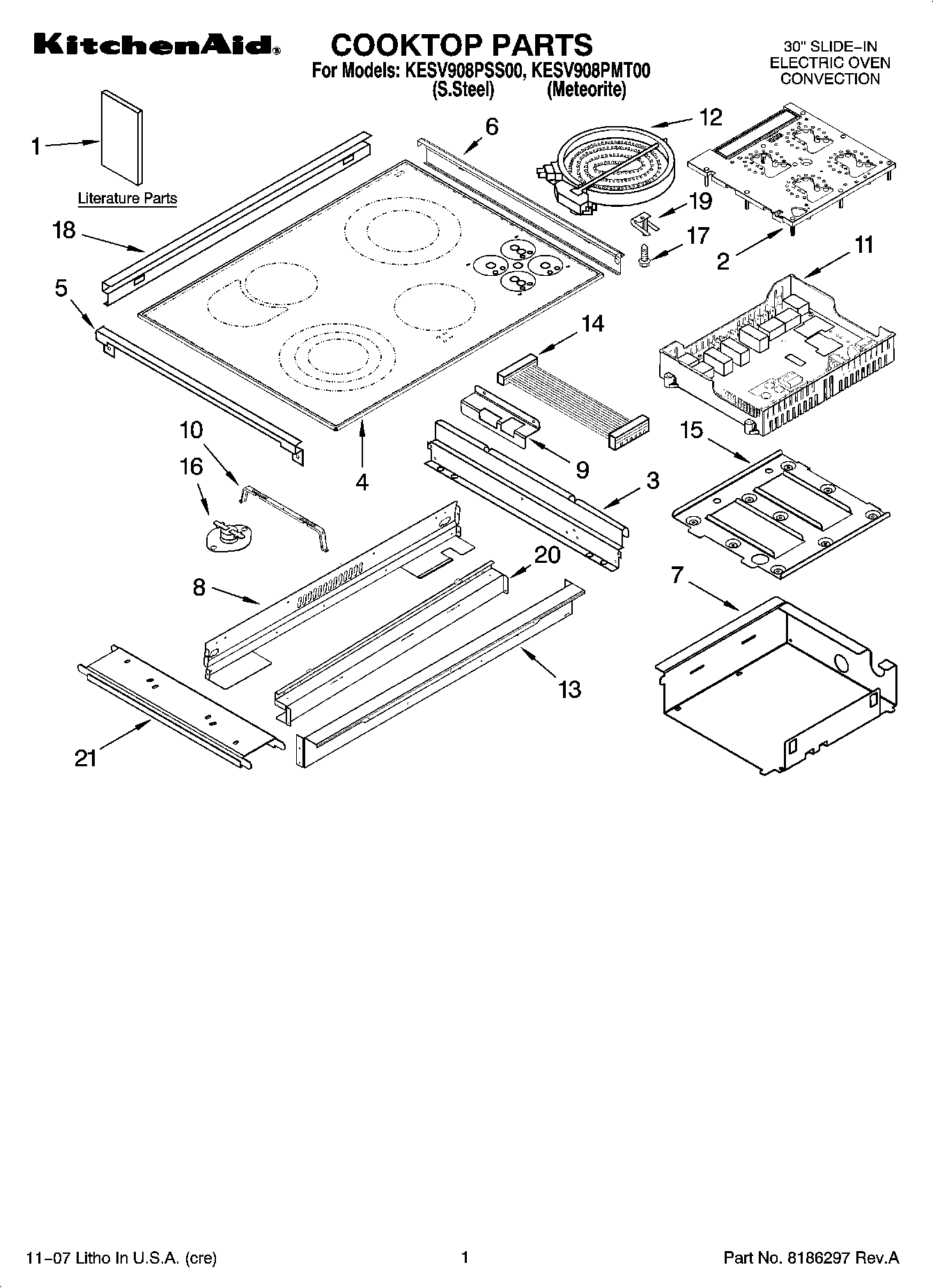

KESV908PMT00 01 – COOKTOP PARTS

KESV908PMT00 01 – COOKTOP PARTS

Written by

in

KESV908PMT00 01 – COOKTOP PARTS

Products

PositionProduct
1Anti-Tip Instruct.
1Tech Sheet
1Installation Instructions
1Use & Care Guide
1Safe Cooking Tips (French)
2WP9757063 Whirlpool Electronic Control Board
3Bracket, Mounting
4Cooktop (S.Steel)
4Gasket
5Clip, Ceran (2)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Meteorite LH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (Meteorite RH)
7Box, Touch Control
8Cover, Cktp Rear
9Support (L.Hand)
9Support (R.Hand)
10WP4449809 Whirlpool Screw
10WP9756821 Whirlpool Support
11WP4449745 Whirlpool Screw
11Central, Appliance
11Seal, Foam
12Element, Surface (RR)
12Element, Surface (LF)
12WP8285232 Whirlpool Surface Element Assembly
12WP4453907 Whirlpool Surface Element
13Bracket, Front Support
14W10155097 Whirlpool Wire Harness
15Support, Module
16WP9759944 Whirlpool Thermostat
17WP486754 Whirlpool Compactor Screw
18Trim. Cooktop Rear (S.Steel)
18Trim. Cooktop Rear (Meteorite)
199759094 Whirlpool Spring
20WP3196557 Whirlpool Screw
20Bracket, Rear Sprt
21Rail, Element (Side (2))
21Rail, Element (2) (Center (1))
21W10491985 Whirlpool Screw
