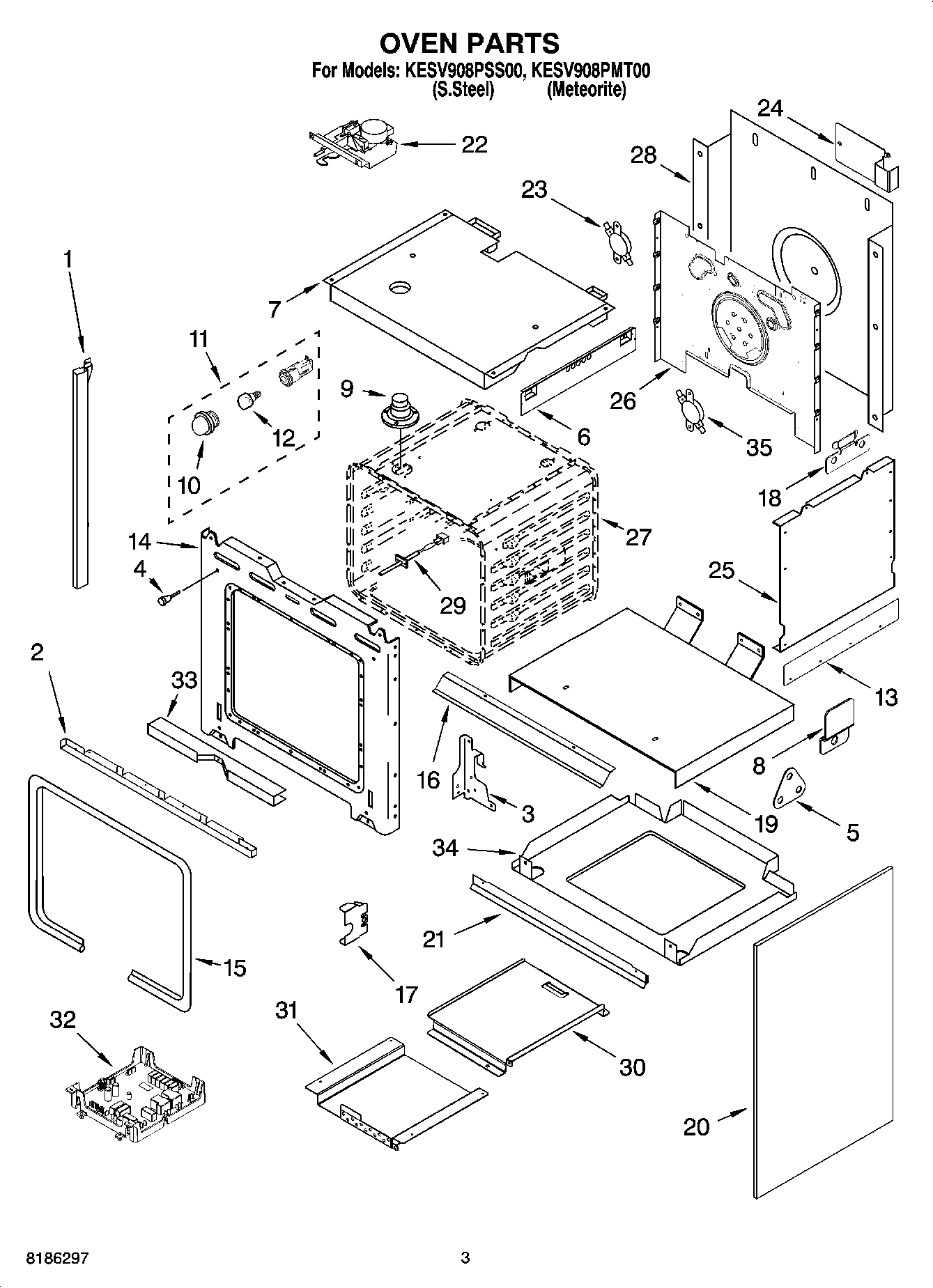

KESV908PMT00 03 – OVEN PARTS

Products

Position	Product
1	WP3400832 Whirlpool Screw
1	Trim, Side (Right Hand) (Black)
1	Trim, Side (Right Hand) (S.Steel)
1	Trim, Side (Left Hand) (Black)
1	Trim, Side (Left Hand) (S.Steel)
2	Trim, Btm Vent (Meteorite)
2	WPL 9756485SS
3	WP4455606 Whirlpool Right Hand Hinge
3	WP4455605 Whirlpool Left Hand Hinge
4	4448520 Whirlpool Oven Bumper
5	BRACKET,SIDE PANEL
6	Brace, Side Panel
7	Top, Chassis
8	Clip, Side Panel
9	SCREW
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	WPW10734065 Whirlpool Light
12	WP4173175 Whirlpool Light Bulb
13	WP4449743 Whirlpool Screw
13	Shield, Heat
14	WP4450118 Whirlpool Nut
14	Frame, Front
14	Screw
15	W11675844 Whirlpool Oven Gasket
16	Deflector, Vent Bottom
17	4452152 Whirlpool Oven Mounting Bracket
18	WP9757685 Whirlpool Guide Panel
19	Support, Insulation
20	Oven, Side Panel (Biscuit)
20	Oven, Side Panel (Black)
20	Oven, Side Panel (White)
21	Vent, Bottom Upper (S. Steel)
21	Insulation, Bottom Vent
21	Vent, Bottom Upper (Meteorite)
21	WP3400805 Whirlpool Screw Assembly
22	WP9760889 Whirlpool Door Latch
23	Thermostat SPST (205)
24	Cover, Rear Standoff
25	W10782197 Whirlpool Side Panel
26	Back, Chassis
27	Liner, Oven (Not serviceable)
28	WP4451747 Whirlpool Rear Cover
29	WPW10131825 Whirlpool Oven Temperature Sensor
30	Bracket, GOC
31	W10083460 Whirlpool Slide Assembly
31	WP3196557 Whirlpool Screw
32	Central, Appliance
33	WP4449154 Whirlpool Screw
33	WP4448933 Whirlpool Retainer
34	Base, Chassis
35	WP9759242 Whirlpool Thermostat
35	WP4449809 Whirlpool Screw
35	WPL 9756817
35	WPL 9756470
35	WPL ARI86926A5
