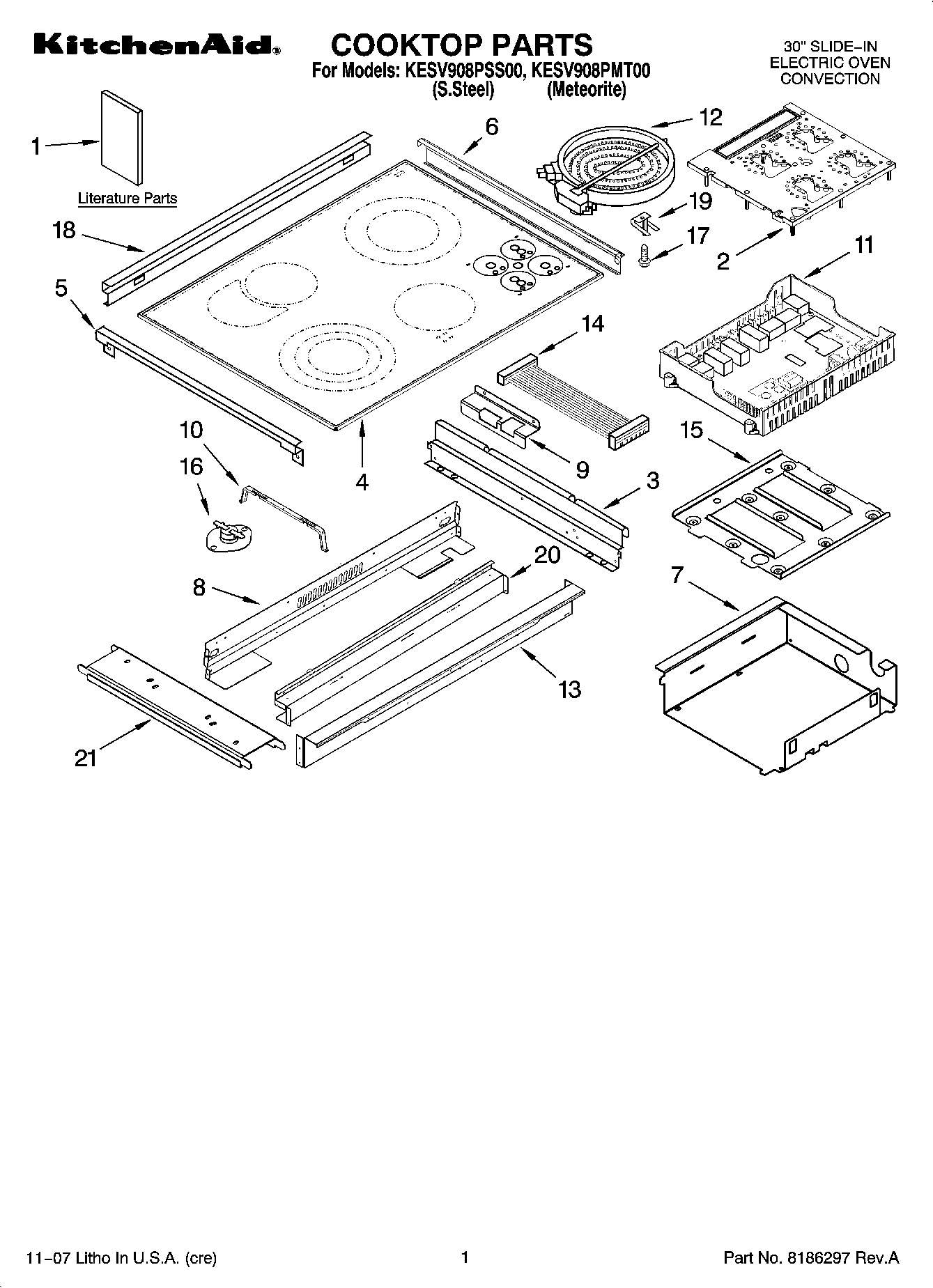

KESV908PSS00 01 – COOKTOP PARTS

Products

Position	Product
1	Anti-Tip Instruct.
1	Tech Sheet
1	Installation Instructions
1	Use & Care Guide
1	Safe Cooking Tips (French)
2	WP9757063 Whirlpool Electronic Control Board
3	Bracket, Mounting
4	Cooktop (S.Steel)
4	Gasket
5	Clip, Ceran (2)
6	Trim-CkTop, SI (S.Steel RH)
6	Trim-CkTop, SI (Meteorite LH)
6	Trim-CkTop, SI (S.Steel LH)
6	Trim-CkTop, SI (Meteorite RH)
7	Box, Touch Control
8	Cover, Cktp Rear
9	Support (L.Hand)
9	Support (R.Hand)
10	WP4449809 Whirlpool Screw
10	WP9756821 Whirlpool Support
11	WP4449745 Whirlpool Screw
11	Central, Appliance
11	Seal, Foam
12	Element, Surface (RR)
12	Element, Surface (LF)
12	WP8285232 Whirlpool Surface Element Assembly
12	WP4453907 Whirlpool Surface Element
13	Bracket, Front Support
14	W10155097 Whirlpool Wire Harness
15	Support, Module
16	WP9759944 Whirlpool Thermostat
17	WP486754 Whirlpool Compactor Screw
18	Trim. Cooktop Rear (S.Steel)
18	Trim. Cooktop Rear (Meteorite)
19	9759094 Whirlpool Spring
20	WP3196557 Whirlpool Screw
20	Bracket, Rear Sprt
21	Rail, Element (Side (2))
21	Rail, Element (2) (Center (1))
21	W10491985 Whirlpool Screw
