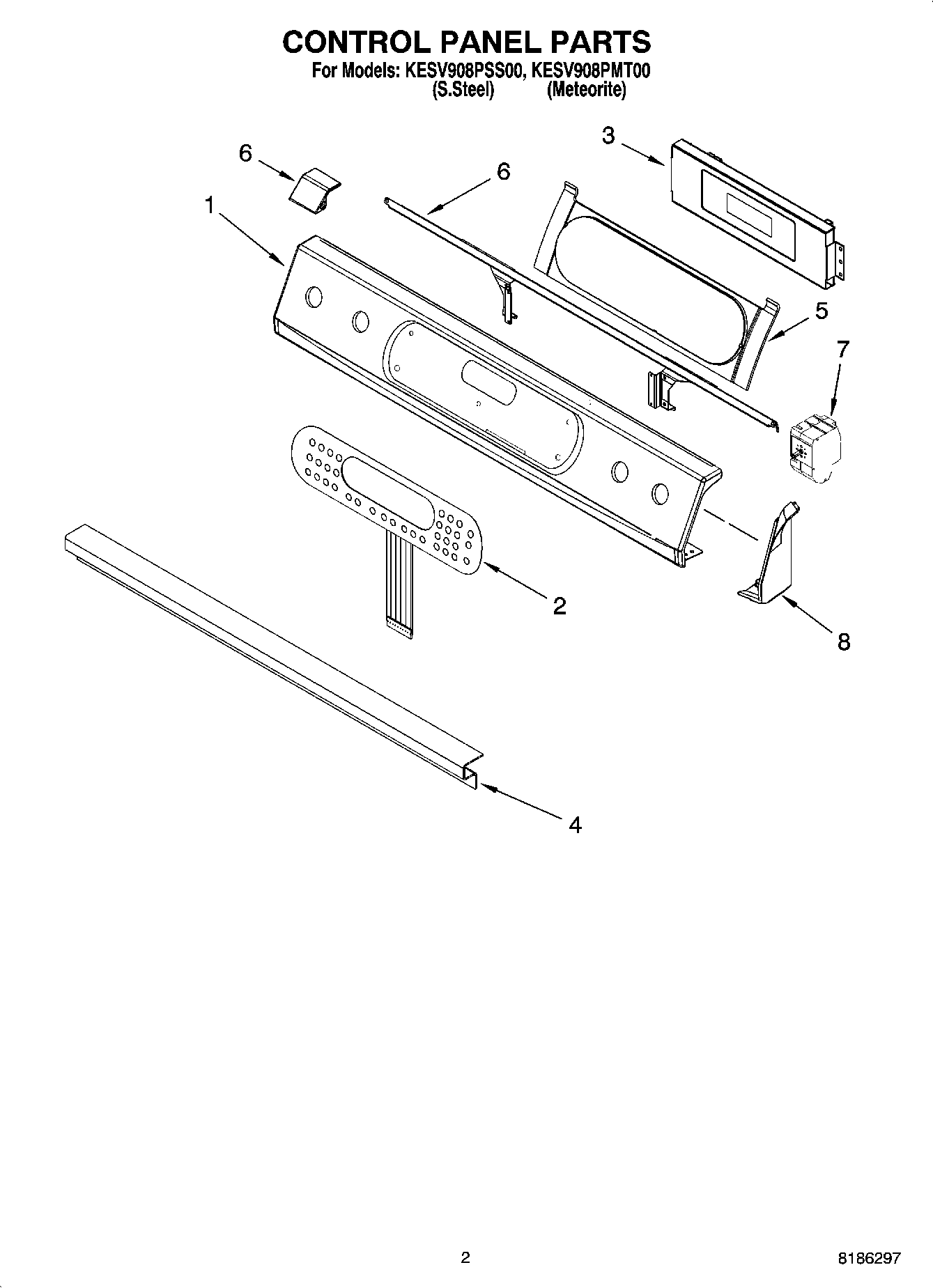

KESV908PSS00 02 – CONTROL PANEL PARTS

KESV908PSS00 02 – CONTROL PANEL PARTS

Written by

in

KESV908PSS00 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (Meteorite)
1Control Panel (S.Steel)
2WP3400832 Whirlpool Screw
2Membrane Switch (Etched Stainless)
2Membrane Switch (Cashmere Metal)
3Control, Interface
4WP3196557 Whirlpool Screw
4Bracket, Console
5Insert, Membrane
6Insert, Console (R.Hand)
6Insert, Console (L.Hand)
7WP486579 Whirlpool Air Conditioner Screw
7Bracket, User Interface
8Endcap (Cashmere Metal LH)
8Endcap (Cashmere Metal RH)
83196172 Whirlpool Oven Screw
8Endcap (Meteorite RH)
8Endcap (Meteorite LH)
