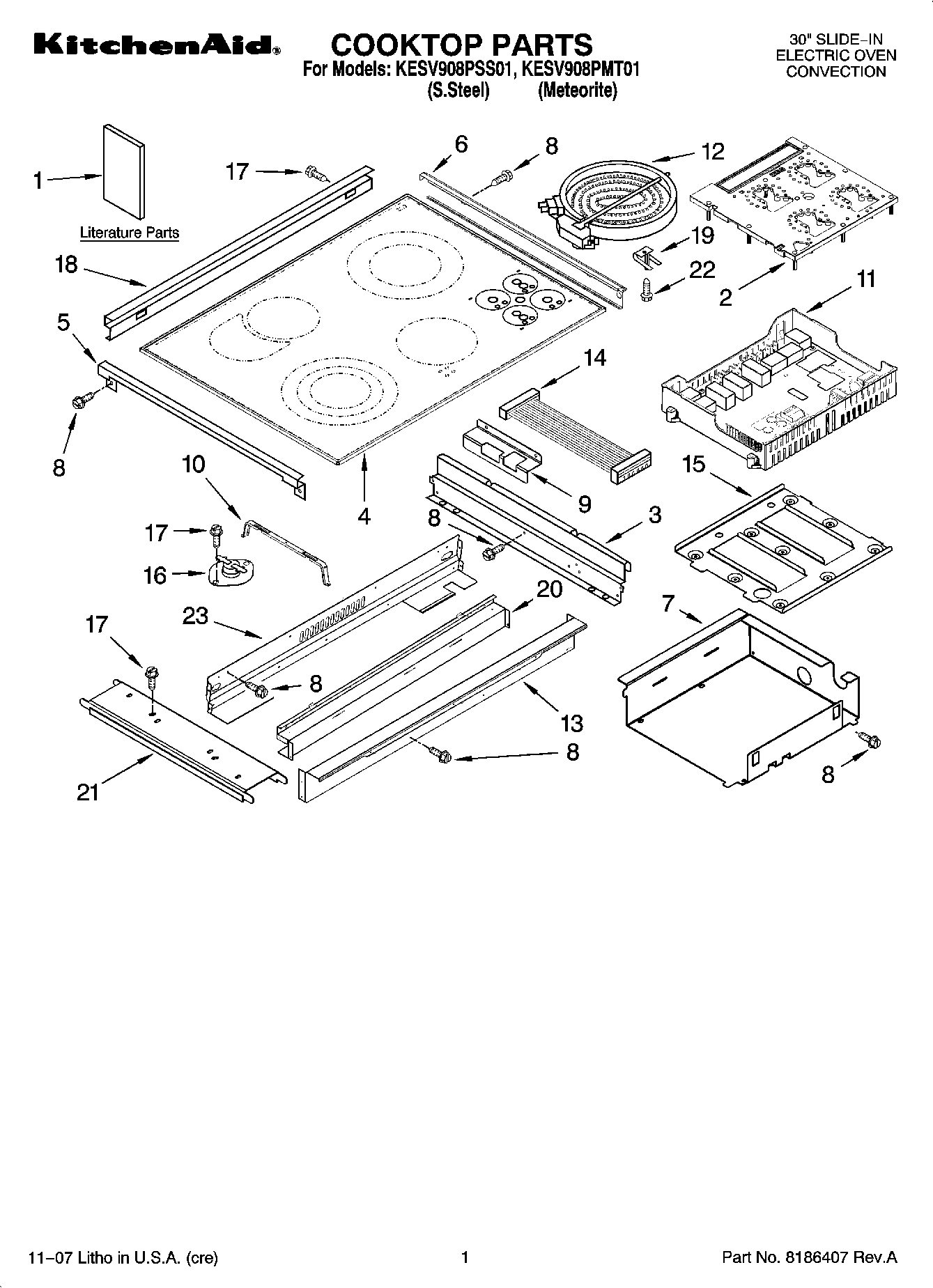

KESV908PSS01 01 – COOKTOP PARTS

KESV908PSS01 01 – COOKTOP PARTS

Written by

in

KESV908PSS01 01 – COOKTOP PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1Installation Instructions
1Safe Cooking Tips (French)
1Anti-Tip Instruct.
1Guide, Easy Set
1Safe Cooking Tips
2WP9757063 Whirlpool Electronic Control Board
3Bracket, Mounting
4Gasket
4Cooktop (S.Steel)
5Clip, Ceran (2)
6Trim-CkTop, SI (Meteorite RH)
6Trim-CkTop, SI (S.Steel LH)
6Trim-CkTop, SI (S.Steel RH)
6Trim-CkTop, SI (Meteorite LH)
7Box, Touch Control
9Support (R.Hand)
9Support (L.Hand)
10WP9756821 Whirlpool Support
11Central, Appliance
12Element, Surface (RR)
12WP4453907 Whirlpool Surface Element
12Element, Surface (LF)
12WP8285232 Whirlpool Surface Element Assembly
13Bracket, Front Support
14W10155097 Whirlpool Wire Harness
15Support, Module
16WP9759944 Whirlpool Thermostat
17W10491985 Whirlpool Screw
18Trim. Cooktop Rear (S.Steel)
18Trim. Cooktop Rear (Meteorite)
199759094 Whirlpool Spring
20Bracket, Rear Sprt
20WP3196557 Whirlpool Screw
21Rail, Element (Side (2))
21Rail, Element (2) (Center (1))
22WP486754 Whirlpool Compactor Screw
23Cover, Cktp Rear
