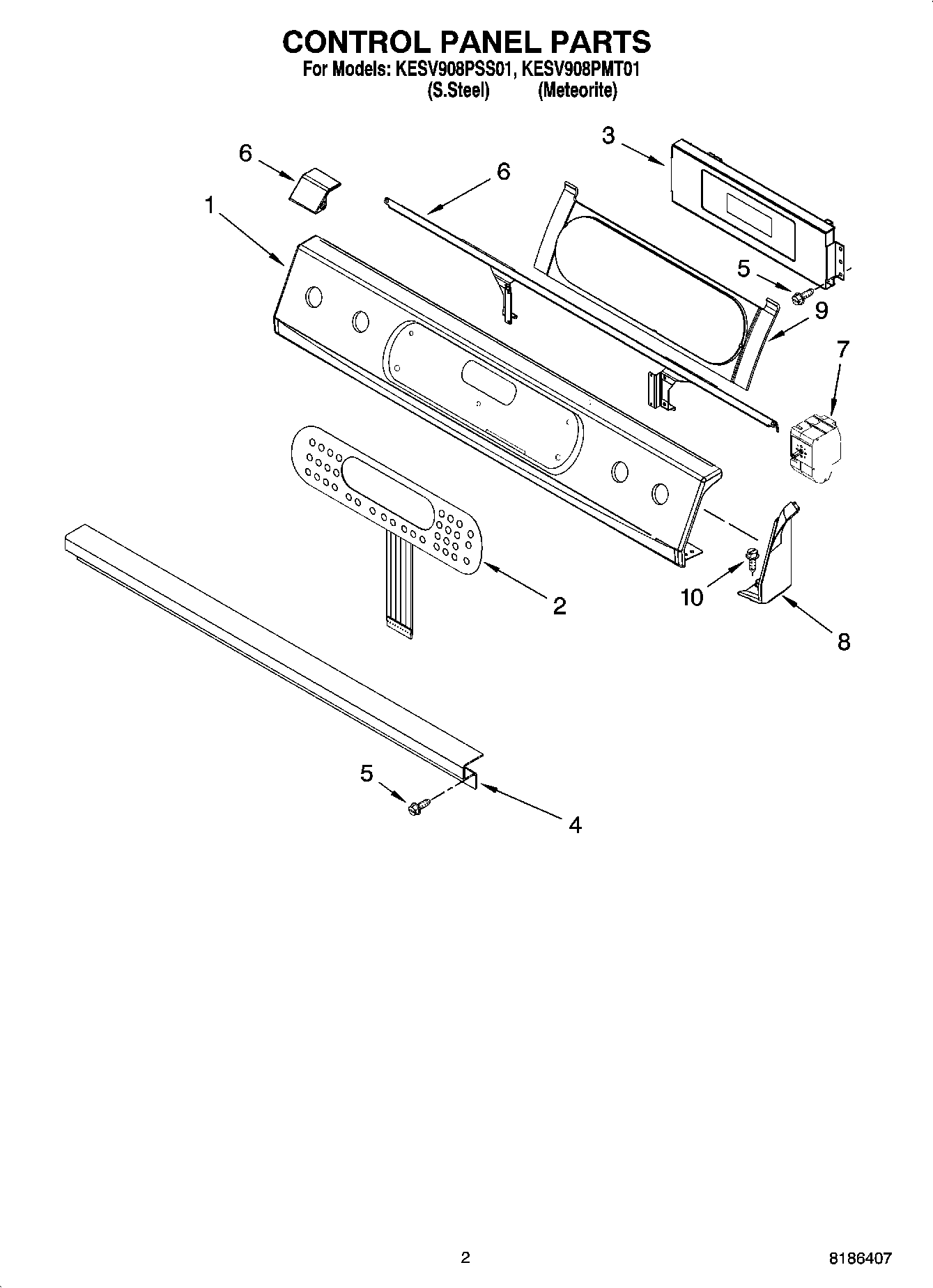

KESV908PSS01 02 – CONTROL PANEL PARTS

KESV908PSS01 02 – CONTROL PANEL PARTS

Written by

in

KESV908PSS01 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Control Panel (S.Steel)
1Control Panel (Meteorite)
2Membrane Switch (Etched Stainless)
2Membrane Switch (Cashmere Metal)
3Control, Interface
4Bracket, Console
5WP3196557 Whirlpool Screw
6Insert, Console (L.Hand)
6Insert, Console (R.Hand)
7Bracket, User Interface
8Endcap (Cashmere Metal LH)
8Endcap (Cashmere Metal RH)
8Endcap (Meteorite RH)
8Endcap (Meteorite LH)
9Insert, Membrane
103196172 Whirlpool Oven Screw
