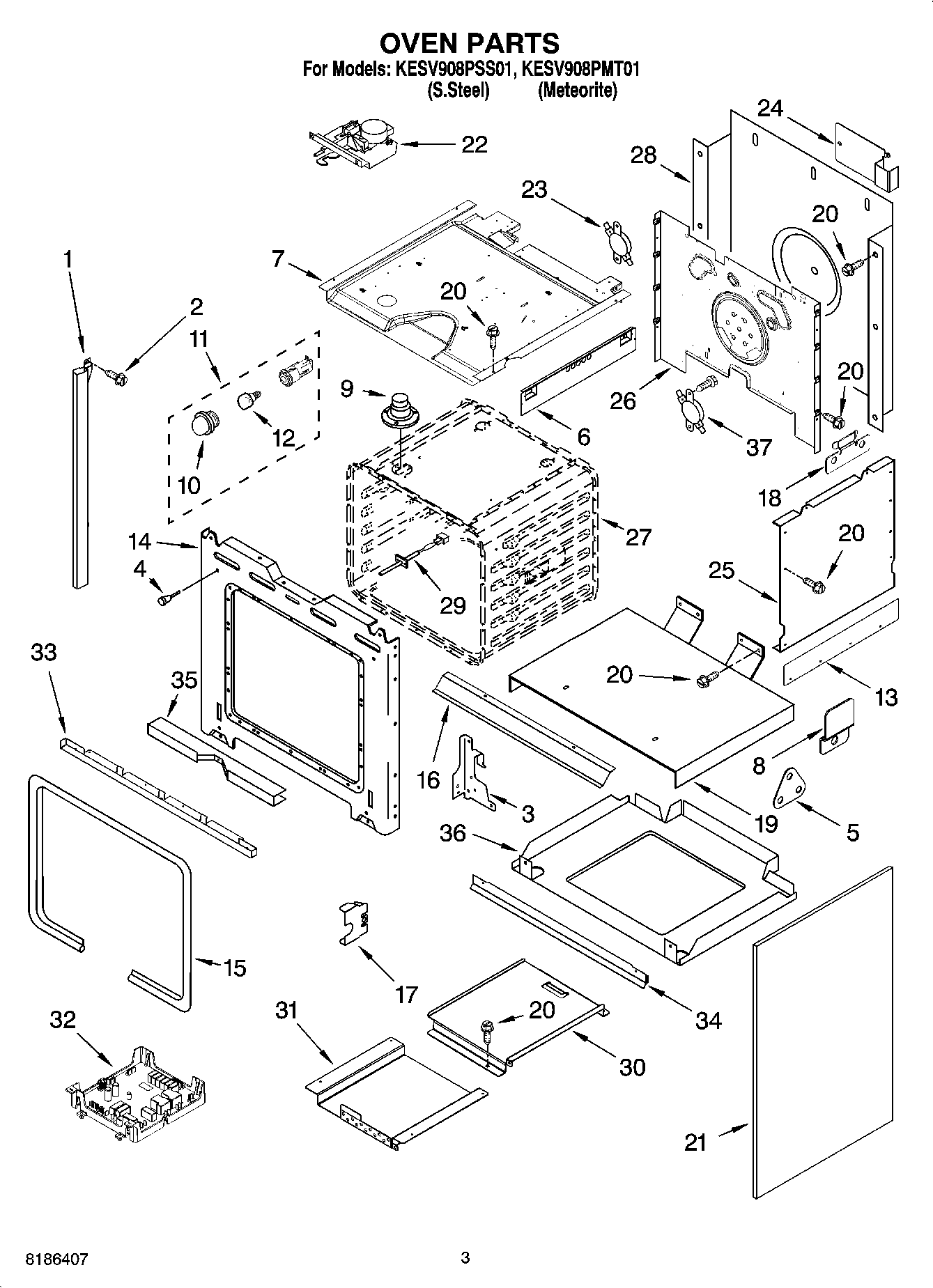

KESV908PSS01 03 – OVEN PARTS

KESV908PSS01 03 – OVEN PARTS

Written by

in

KESV908PSS01 03 – OVEN PARTS

Products

PositionProduct
1Trim, Side (Left Hand) (Black)
1Trim, Side (Left Hand) (S.Steel)
1Trim, Side (Right Hand) (S.Steel)
1Trim, Side (Right Hand) (Black)
2WP3400832 Whirlpool Screw
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5BRACKET,SIDE PANEL
6Brace, Side Panel
7Top Chassis
8Clip, Side Panel
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
13Shield, Heat
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16Deflector, Vent Bottom
174452152 Whirlpool Oven Mounting Bracket
18WP9757685 Whirlpool Guide Panel
19Support, Insulation
20WP4449809 Whirlpool Screw
21Oven, Side Panel (Biscuit)
21Oven, Side Panel (Black)
21Oven, Side Panel (White)
22WP9760889 Whirlpool Door Latch
23Thermostat SPST (205)
24Cover, Rear Standoff
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP4451747 Whirlpool Rear Cover
29WPW10131825 Whirlpool Oven Temperature Sensor
30Bracket, GOC
31W10083460 Whirlpool Slide Assembly
32Central, Appliance
33Trim, Btm Vent (Meteorite)
33WPL 9756485SS
34Vent, Bottom Upper (Meteorite)
34Vent, Bottom Upper (S. Steel)
34Insulation, Bottom Vent
35WP4448933 Whirlpool Retainer
36Base, Chassis
37WP9759242 Whirlpool Thermostat
37WPL 9756817
37WPL 9756470
37FOLLOWING PARTS NOT ILLUSTRATED INSULATION
