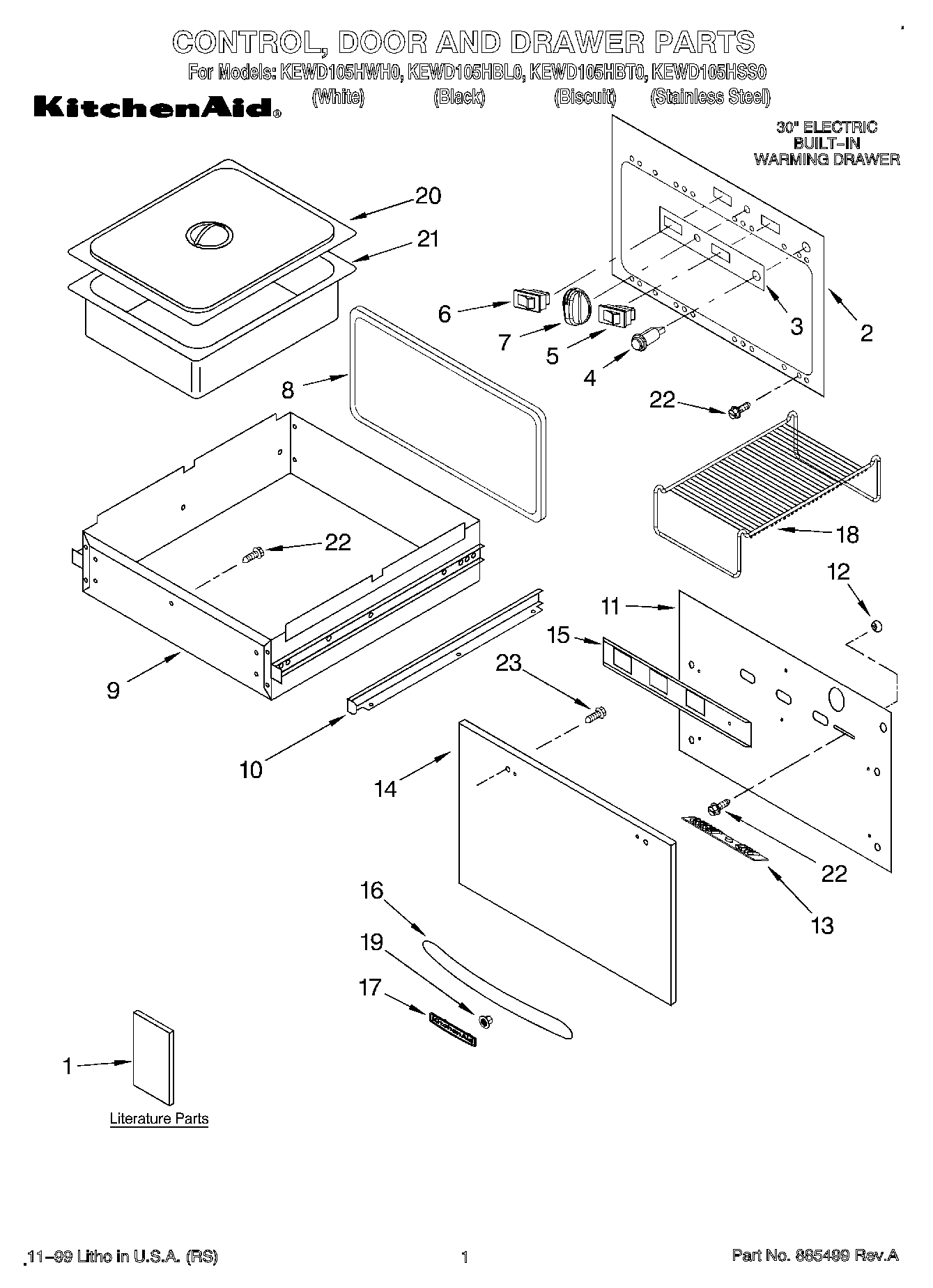

KEWD105HBL0 01 – SECTION

Products

Position	Product
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Tech Sheet)
2	Panel, Control
3	Escutchen, Control Panel
4	Light, Indicator
5	Switch, Rocker SPST Illuminated
6	WP4452842 Whirlpool Light Switch
7	W10854530 Whirlpool Knob Assembly
8	Gasket, Drawer
9	Drawer Assembly
10	Adapter (Pan Support Bracket)
11	Liner, Door
12	Knob, Ball
13	Label, Moist/Dry
14	Door, Front Assy (White)
14	Door, Front Assy (Biscuit)
14	Door, Front Assy (Stainless Steel)
14	Door, Front Assy (Black)
15	Vent, Slide
16	Handle, Door (Stainless)
16	Handle, Door (Black)
16	Handle, Door (White)
16	Handle, Door (Biscuit)
17	Nameplate (Black)
18	Rack, Warming
19	Palnut
20	Cover, Pan (Small (1/3))
20	Cover, Pan (Large, (Half))
21	Pan, Warming (Large (Half))
21	Pan, Warming (Small (1/3))
22	WP3400805 Whirlpool Screw Assembly
23	WPW10132940 Whirlpool Dishwasher Screw
