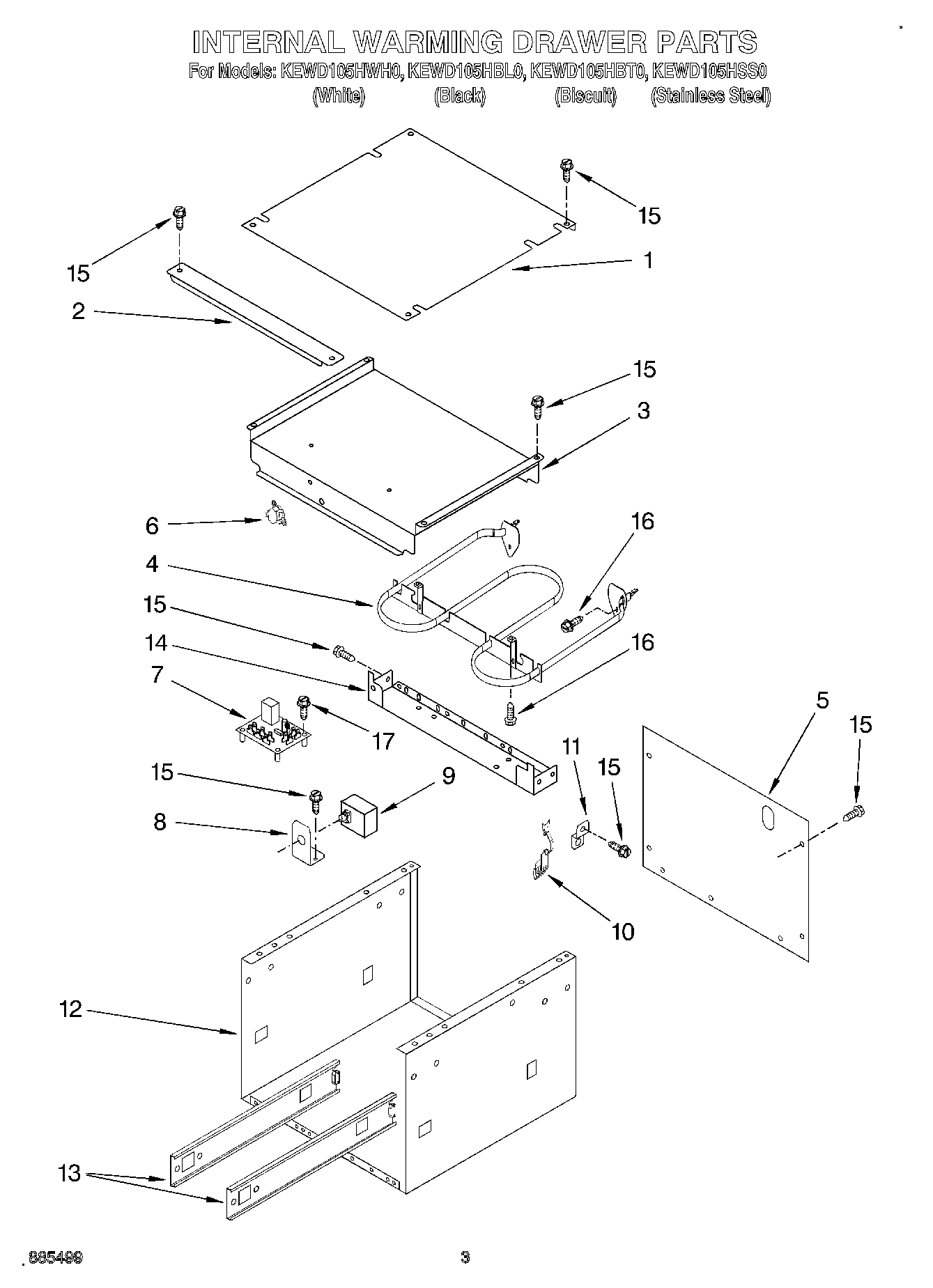

KEWD105HBL0 02 – SECTION

Products

Position	Product
1	Top, Wrapper
2	Panel, Service
3	Plate, Element Mounting
4	WP9760767 Whirlpool Range Wall Oven Broil Element
5	Back, Wrapper
6	WP4450934 Whirlpool Thermostat Assembly
7	Timer Assembly
8	Bracket, Mounting Thermostat
9	Thermostat, Bi-Metal
10	Clip, Thermostat
11	Bracket, Mounting
12	Wrapper
13	Slide Assembly (Left Hand)
13	Slide Assembly (Right hand)
14	Bracket, Control
15	WP3400805 Whirlpool Screw Assembly
16	WP4449809 Whirlpool Screw
17	Screw
17	WP4448950 Whirlpool Screw
17	4452601 Whirlpool Grommet
17	Harness, Wire (Main)
17	Power Cord
17	Insulation
