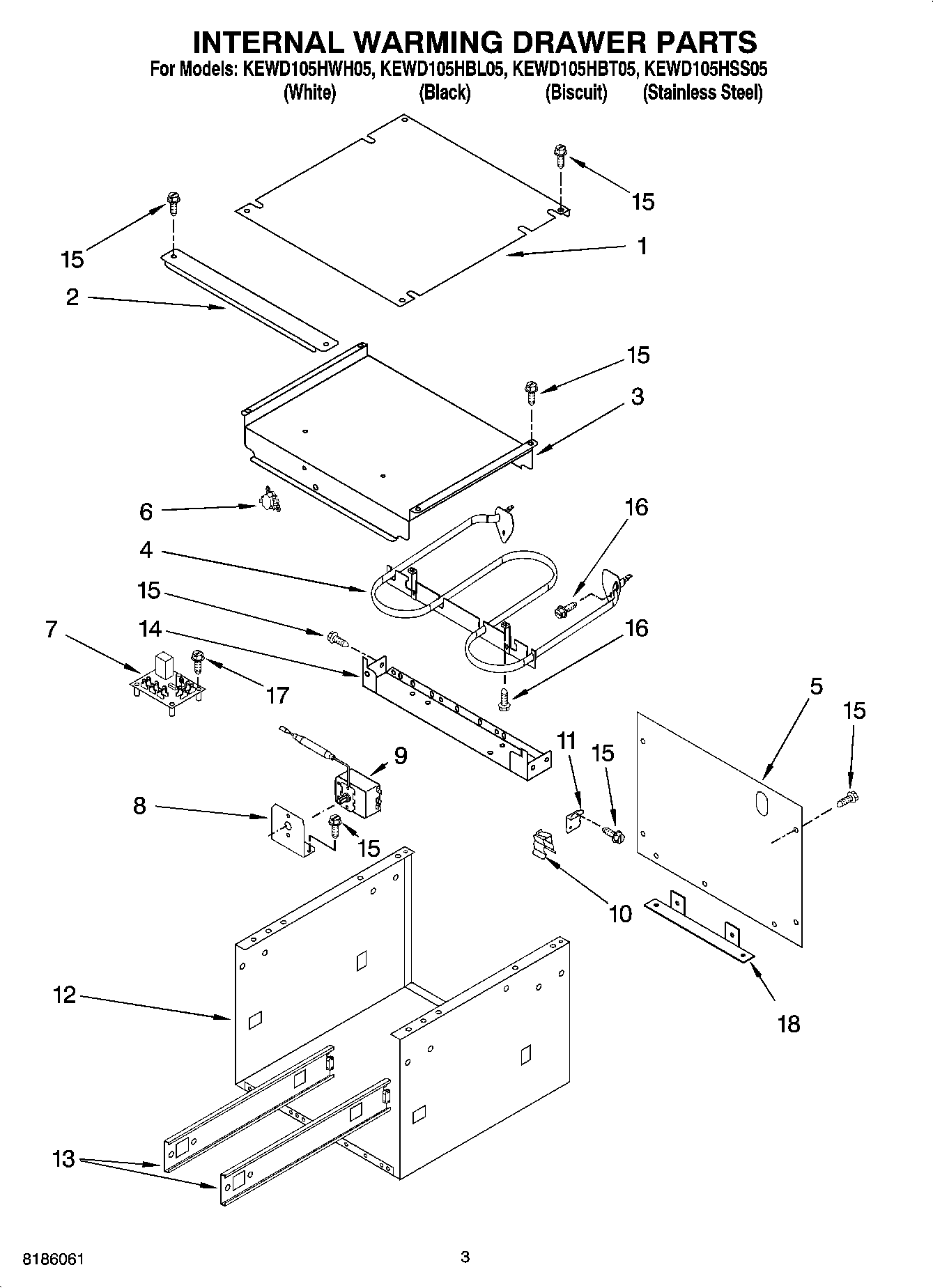

KEWD105HBL05 02 – INTERNAL WARMING DRAWER PARTS

KEWD105HBL05 02 – INTERNAL WARMING DRAWER PARTS

Written by

in

KEWD105HBL05 02 – INTERNAL WARMING DRAWER PARTS

Products

PositionProduct
1Top, Wrapper
2Panel, Service
3Plate, Element Mounting
4WP9760767 Whirlpool Range Wall Oven Broil Element
5Back, Wrapper
6WP4450934 Whirlpool Thermostat Assembly
6Screw
7Timer Assembly
8Bracket, Mounting Thermostat
9Thermostat, Bi-Metal
10Clip, Thermostat
11Bracket, Mounting
12WRAPPER
13Slide Assembly (Left Hand)
13Slide Assembly (Right hand)
14Bracket, Control
15WP3400805 Whirlpool Screw Assembly
16WP4449809 Whirlpool Screw
173400618 Whirlpool Screw
18Power Cord
18Harness, Wire (Main)
18FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS
18Insulation
184452601 Whirlpool Grommet
18Insulation
18Hook, Bracket
18WP4448950 Whirlpool Screw
184450800 Whirlpool Oven Screw
18Miscellaneous
